Analysis Of A New ODROID N2 Plus

We all are aware of the robustness of an ODROID N2. So, what's new in the ODROID N2 Plus? Is this new ODROID N2 Plus compatible for gamers due to its wide range of applications? Let's explore.

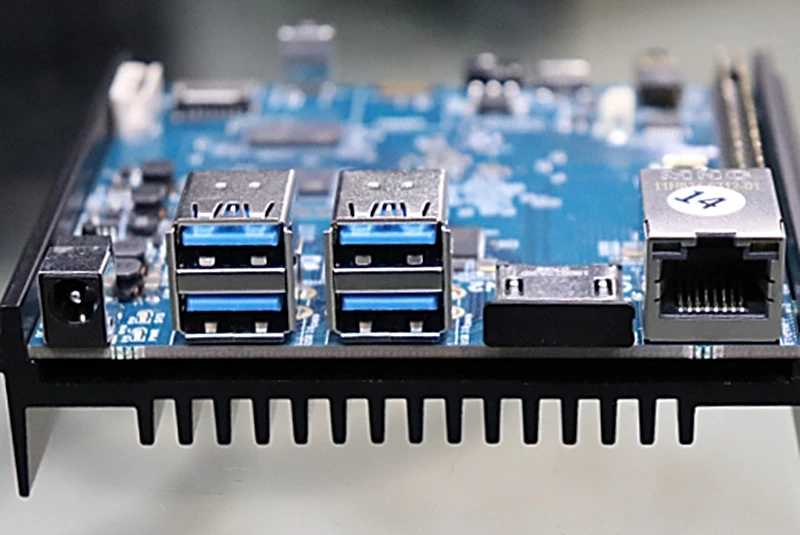

Here is the innovative ODROID N2 Plus single-board computer

It's been proven that ODROID N2 Plus is a tremendous and fast-performing new-generation single-board computer compared to the standard N2. The main CPU of the N2+ is based on a minimal architecture that integrates a quad-core 2.4Ghz ARM Cortex-A73 CPU cluster and a dual-core 2.0Ghz Cortex-A53 cluster with a Mali-G52 GPU new generation.

Thanks to modern 12nm silicon technology in ODROID N2 Plus, A73 cores run at 2.4 GHz without thermal throttling using the standard metal case heatsink, allowing for a robust and quiet computer. The multi-core performance of the CPU is about 20% faster, and the GPU is 10% faster than the N2. The N2+'s DDR4 RAM runs at 1320 Mhz with a low power consumption of 1.2 volts. The large metal case heatsink optimizes CPU and RAM heat dissipation and minimizes throttling. The CPU is placed at the bottom of the PCB to establish excellent thermal characteristics.

Heatsink size comparison: System height decreased from approximately 34mm to 29mm thanks to the N2+'s slimmer heatsink.

ODROID N2 Plus: Single Board Computer N2 Plus 4 GB RAM

The ODROID N2 Plus is perfect for installing Home Assistant and dominating your home. ODROID N2+ is a revision of ODROID-N2.

The maximum CPU clock of Quad-core Cortex-A73 is increased to 2.4 Ghz from 1.8 Ghz.
The top CPU clock of the dual-core Cortex-A53 is increased to 2.0 Ghz from 1.9 GHz.
Built-in RTC battery backup support is mounted on the board.

The central processor of ODROID N2 Plus is based on the grand architecture. It integrates a quad-core ARM Cortex-A73 processor cluster and a dual-core Cortex-A53 cluster with a next-generation Mali-G52 GPU. Thanks to modern 12nm silicon technology, A73 cores run at 2.2GHz without thermal throttling using the original metal-cased heatsink for a rugged and quiet computer.

The multi-core performance of the CPU is about 20% faster, and the GPU is 10% faster than the N1. The ODROID N2 Plus's DDR4 RAM runs at 1320MHz with a low power consumption of 1.2 volts. The large metal-cased heatsink optimizes CPU and RAM heat dissipation and minimizes throttling. The CPU is placed at the bottom of the PCB to establish excellent thermal characteristics.

ODROID N2 Plus Specifications:

Form Factor Card Dimensions: 90mm x 90mm x 17mm
Heatsink dimensions: 100mm x 91mm x 18.75mm
Weight: 200g with heatsink
Amlogic S922X processor (12nm manufacturing)
Quad-core Cortex-A73 (up to 2.4 GHz) and dual-core Cortex-A53 (up to 2 GHz)
ARMv8-A architecture with Neon and Crypto extensions
Mali-G52 GPU with 6 x runtime engines (800Mhz)
4 GB or 2 GB DDR4 memory with a 32-bit bus width
Data rate: 2640 MT/s (PC4-21333 grade)
1.2-volt low-power design

Storage:

1 x eMMC connector (8G, 16G, 32G, 64G and 128G are available)
1 microSD slot (DS/HS modes up to UHS-I SDR104)

Network management:

1 x GbE LAN ports (RJ45, supports 10/100/1000Mbps)
Realtek RTL8211F (Ethernet transceiver)

LED indicators:

Green LED: flashing for data traffic at a 100 Mbps connection
Orange LED: flashing for data traffic at a 1,000 Mbps connection
Optional USB Wi-Fi adapters

Video:

1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
1 x Composite video (3.5mm jack)

Audio:

1 x stereo audio output (3.5mm jack)
1 HDMI digital output
1 x SPDIF optical output optional
External I/O 4 USB 3.0 host ports (sharing a single root hub)
1 USB 2.0 OTG port for host or device mode. (No power input)
1 x Serial Debug Console (UART)
1 x Peripheral expansion connector (40 pins, 2.54mm pitch)
2 x DC 5V, 2 x DC 3.3V, 1 x DC 1.8V, 8 x GND
1 x SPI
1 UART
2 x I2C
GPIO 25x (max)
2 ADC inputs (10-bit, 1.8V max)
All 3.3V I/O signal levels except ADC input at 1.8 volts max.

Other ODROID N2 Plus Features:

Built-in RTC (Real Time Clock) IC to maintain date and time. The 2-pin 1.25mm pitch connector has replaced a CR2032 coin cell battery holder.

There are no batteries included on the card.
Buy the prevalent CR2032 bare cell at your local store.
You can save RTC time for up to several years with a 200 mAh CR2032 battery.

8 MB SPI Flash for Boot Manager
IR receiver for remote control
Built with a large passive heatsink

System LED Indicators:

Red (PWR): Lights up when DC power is connected
ALIVE – Blinking like a heartbeat while the kernel is running.
Active cooling fan connector (5V 2 pin)
Connector (2 pins, 1.25mm pitch)
Power supply 1 x DC socket: outer diameter (negative) 5.5mm, inner diameter (positive) 2.1mm
DC 7.5V ~ 18V (up to 25W) ***7.5V ~ 16V from 2022 production (batch number starts with EL22)
AC DC 12V/2A adapter is recommended
