Application and uses of En 1092 1 Flanges

What is EN 1092-1 Flange?

EN 1092-1 Flange Manufacturer is a European standard for pipe flanges, specifies the specifications for steel flanges based on their nominal pressure (PN) and diameter (DN).

It also specifies the various types of flanges, as well as their sealing surfaces, tolerances, threading, and labeling

EN 1092-1 Flanges Manufacturer, Supplier & Stockists in India - New Era Pipes & Fittings

New Era Pipes & Fittings is a leading manufacturer, supplier, and stockist of EN 1092-1 Flanges  Manufacturer in India. Flanges according to EN 1092-1 are one of our most popular Metal Market products. EN 1092-1 Flanges are available in a variety of sizes, forms, and dimensions, and they can also be customized to meet the needs of our customers. To fulfill the needs of diverse industrial sectors, we supply EN 1092-1 Flanges in the appropriate quantity and quality..

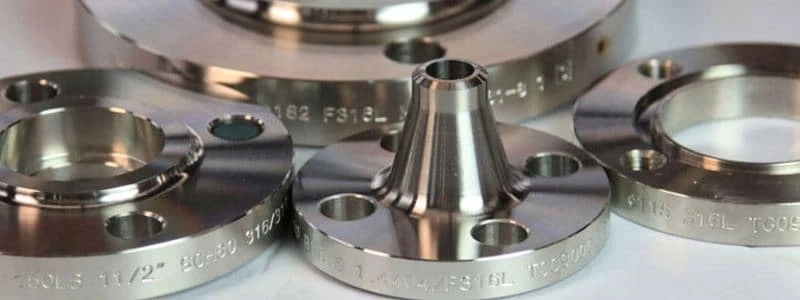

EN 1092-1 Flanges Specifications

Size  :  1/2″ (15 NB) to 48″ (1200 NB) DN10~DN5000

Pressure : PN2.5, PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN320, PN400

Grades

Stainless Steel : DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409.

Duplex Steel : F51, F53, F55.

Carbon Steel : DIN1.0402, DIN1.0460, DIN1.0619

Alloys Steel : 213 / 335 / 691 – P5,P9,P11,P12,P22,P91

Copper Nickel : C70600(90:10), C71500 (70:30), C71640

Nickel : UNS N02200, N02201

Monel : UNS N04400, N05500, Alloy 20

Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825

Hastelloy : UNS N10276, N06022, N10665, N06455

Titanium : Gr.1, 2, 3, DTH 3.7035, DTH 3.7035, DTH 3.7055

Brass : C 27000, C 27200, C 28000

Aluminum : 6063, 6061T6/T651, 6082 T6/T651, 5052, 5083, 5086, 7075, 1100, 2014, 2024

SMO 254 : SMO 254



Types of Flanges

Plate Flange (slip on) for WeldingLoose Plate Flanges with Weld On Plate Collar or for lapped pipe endLoose Plate Flanges with Weld Neck CollarHubbed Slip On Flanges for WeldingHubbed Threaded FlangesLapped Pipe EndWeld neck CollarWelding Neck36 Pressed collar with long neckPressed CollarBlind FlangeWeld Neck Flange

For more detail do visit

Website -newerapipefittings.com

Contact us - +91 9833255117 / +91 3534993959

Mail us - info@newerapipefittings.com

Product Source -EN 1092-1 Flanges
