Depending on the material grade, carbon steel flanges include carbon, manganese, phosphorus, sulphur, silicon, copper, nickel, chromium, molybdenum, and vanadium. Carbon steel pipe flanges are priced differently based on the material grade. Quality Forge & Fittings manufactures flanges of various kinds and material grades.

Various Types Of Flanges


In essence, CARBON STEEL SLIP-ON FLANGES are rings which are fitted over the pipe end, with the flange face extending far enough to allow for the application of a weld bead on the inside diameter.

Also soldered to the back of the slip-on flange is the OD. Weld neck flanges are more difficult to align, but slip on flanges cost less to make out of material.

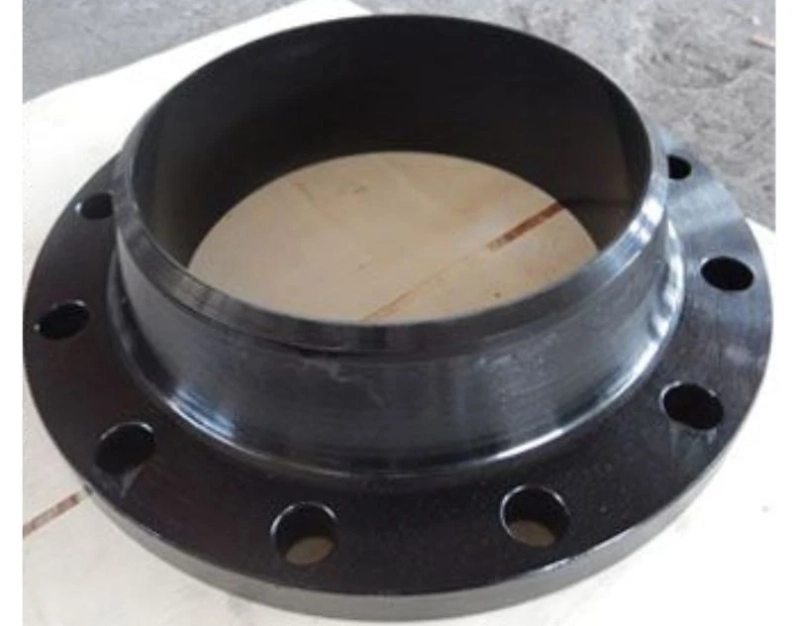

A weld neck flange, also known as a tapered hub flange or a high-hub flange, can transfer stress to the pipes, ensuring a reduction in the concentration of high stress at the flange's bottom. There are two types of welding neck flanges; the first is used with wipes, while the second, longer type cannot be used with pipes but with a process plant. The CARBON STEEL WELD NECK FLANGES is made up of a fitting that is round and extends past the circumference's rim. The pipes are welded to these flanges, which are typically made of forging.


most frequent type of self-reinforced nozzle is the Long Weld Neck Flange. For greater pressure and temperature applications, heavy barrel-type nozzles have a larger throat. LONG WELD NECK FLANGES is a self-reinforcing integral flange connection used primarily in ASME Pressure Vessel applications. The Long Weld Neck (LWN) Flange was created to replace a Weld Neck Flange and a length of pipe for a bolt-up connection to the vessel.


A carbon steel blind flange is a solid disc that is used to seal a pipeline or create a stop. It is useful for pipeline repairs as well as pipeline expansion or continuation by simply adding onto the final flange.

The blind flange is essentially a flange without a hub or a drilled center. CARBON STEEL BLIND FLANGES have a flange's face thickness, a matching face type, and a bolting pattern. Blind flanges can also be utilized to seal a pressure vessel nozzle aperture.


The THREADED FLANGES design (also known as a ‘screwed flange') connects the flange to a pipe through a screw thread. A male thread is cut into the bore of the flange while a female thread is cut into the pipe end; the male-threaded pipe is then screwed onto the female-threaded flange.


Standards – ANSI, JIS, DIN, EN1092-1, UNI, BS4504, SABS1123, AS2129, GOST-12820

Dimension – ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44

Class – 150#, 300#, 400 #, 600#, 900#, 1500# & 2500#

Size – 1/2” NB TO 24” NB.

Wall Thickness – SCH.10, 20, 30, 40, 80, 120, 160, STD, XS, XXS.

Highest rated Carbon Steel Flanges Manufacturers, Suppliers, and Dealers

Quality Forge & Fittings is a leader in the manufacture of one of the best quality Carbon Steel Flanges Suppliers. With our wide range of products, we have been able to meet the needs of different industries for over three decades. We are trusted Flexible Hose Pipe and Carbon Steel Flanges Supplier. Flange Manufacturer In Mumbai also offers a variety of flanges like Carbon Steel Slip On Flanges, which are made from high-grade carbon steel and designed to provide maximum strength and durability. Our commitment to quality and customer satisfaction has made us the most reliable Carbon Steel Flanges Suppliers in Mumbai. We also rank among the best Buttweld Pipe Fittings Manufacturers and Carbon Steel Weld Neck Flanges Manufacturer in India.
