When it comes to electrical installations, ensuring that every connection is secure, reliable, and efficient is crucial. One of the key components in achieving this is selecting the right type of cable lug. Whether you\'re working with cable lugs, aluminium lugs, bimetallic lugs, copper lugs, tubular lugs, or even copper braided wires, understanding the differences and applications of each is essential for optimal performance.
What Are Cable Lugs?
Cable lugs are connectors used to securely connect cables to electrical devices, other cables, or terminal blocks. They are designed to provide a secure connection, ensuring that electrical conductivity is maintained and that there is minimal resistance at the connection point. Cable lugs are used in various applications, ranging from small domestic projects to large industrial installations.
Types of Cable Lugs
There are several types of cable lugs available, each with unique characteristics suited for specific applications. The most common types include aluminium lugs, copper lugs, and bimetallic lugs.

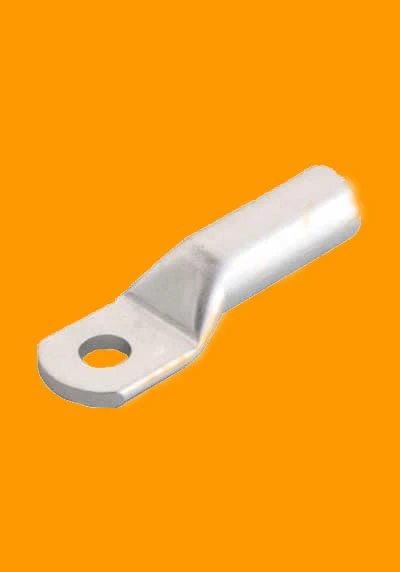

Aluminium Lugs
Aluminium lugs are widely used in power distribution and high-voltage applications due to their lightweight nature and cost-effectiveness. They are particularly popular in industries where weight is a concern, such as in the aerospace and automotive sectors. Aluminium lugs are also resistant to corrosion, which is an added advantage in environments where exposure to moisture and chemicals is a concern.
However, aluminium lugs have a higher electrical resistance compared to copper, which can result in slightly lower efficiency in electrical conductivity. They also tend to be more brittle, which means that care must be taken during installation to avoid cracking or damage. Despite these drawbacks, aluminium lugs remain a popular choice due to their affordability and suitability for specific applications.
Copper Lugs
Copper lugs are known for their excellent electrical conductivity, making them a preferred choice in many electrical installations. Copper\'s high conductivity ensures that there is minimal voltage drop across connections, which is crucial for maintaining the efficiency of electrical systems. Additionally, copper lugs are highly durable and resistant to wear and tear, which means they have a longer lifespan compared to their aluminium counterparts.
Copper lugs are often used in critical applications where reliability and performance are paramount, such as in power generation, transmission, and heavy-duty industrial systems. They are also commonly used with copper braided wires, which are flexible conductors used to connect moving parts in electrical systems. The combination of copper lugs and copper braided wires ensures a reliable and efficient connection that can withstand mechanical stresses and vibrations.
Despite their advantages, copper lugs are generally more expensive than aluminium lugs. This makes them less appealing for applications where cost is a primary concern. However, for projects where performance and reliability are crucial, the investment in copper lugs is well justified.
Bimetallic Lugs
Bimetallic lugs are an innovative solution designed to address the challenges of connecting aluminium cables to copper busbars or terminals. These lugs are made by bonding aluminium and copper together, with the aluminium side connecting to the aluminium cable and the copper side connecting to the copper busbar. This combination prevents galvanic corrosion, which can occur when dissimilar metals are connected directly.
Bimetallic lugs are essential in applications where there is a need to transition between aluminium and copper components. They are commonly used in power distribution systems, where both types of materials are often present. The use of bimetallic lugs ensures that the electrical connection is secure and free from the risks associated with galvanic corrosion.
While bimetallic lugs offer a practical solution for mixed-metal connections, they are generally more expensive than single-material lugs. However, the cost is justified by the enhanced safety and longevity of the connection.
Tubular Lugs
Tubular lugs are another type of cable lug that is commonly used in electrical installations. These lugs are characterized by their hollow, cylindrical shape, which allows them to be crimped onto the cable for a secure connection. Tubular lugs can be made from either copper or aluminium, depending on the application requirements.
Copper tubular lugs are preferred for their superior conductivity and durability, while aluminium tubular lugs are chosen for their lightweight and cost-effectiveness. Tubular lugs are versatile and can be used in a wide range of applications, from residential wiring to industrial power distribution.
Choosing the Right Lug for Your Needs
Selecting the right cable lug depends on several factors, including the type of cable being used, the environment in which the connection will be made, and the specific requirements of the electrical system. When choosing the right cable lug, it\'s important to consider these aspects to ensure a secure and reliable connection. For projects where electrical efficiency and durability are paramount, copper lugs or copper tubular lugs are an excellent choice. For cost-sensitive applications where weight is a concern, aluminium lugs may be more suitable. In cases where there is a need to connect aluminium cables to copper components, bimetallic lugs offer a reliable solution.
Ultimately, the choice of cable lug should be guided by the specific demands of your project, ensuring that the connection is secure, reliable, and efficient. By understanding the characteristics and benefits of each type of lug, you can make an informed decision that will enhance the performance and safety of your electrical installations.
