Cisco Catalyst 9500 switches are the next-generation of purpose-built fixed coreaggregation and 6 models are included in these series. This Cisco core switch enables various capability for your network which makes it daily challenges a lot easier for network administrations.
First group of these devices are based on UADP 2.0 ASIC chip and are industry’s first up to 40G enterprise switches. These switches benefit from following features:
- Build-in RFID
- USB 2.0 Flash Drive
- 2.4-GHZ quad-core x86 CPU
- 16GB of DDR4 RAM
- 32 MB/ASIC packet buffer
- UADP 2.0 XL 240GB bandwidth
- Up to 40Gbps port speed
- StackWize virtual
- Redundant Power Supplies
- Hot-swappable
- AC/DC/Mixed power supplies supported
- More than 90% efficiency at 50% to 100% load
- Redundant load sharing (1+1) mode only
- Redundant Fans
- Variable-speed high efficiency fans
- Detect ambient temperatures and adjust fan speeds
- Individual fans are OIR capable up to 120 secs
- Front-to-Back airflow
- Can still operate with individual fan tray failure
Second Groups of switches in this series are build based on UADP 3.0 ASIC chip and are industry’s first 25G/100G enterprise switches. Features of these switches is listed below:
- Build-in RFID
- USB 3.0 Flash Drive
- 2.4-GHZ quad-core x86 CPU
- 16GB of DDR4 RAM
- 36 MB/ASIC unified packet buffer
- Next-generation UADP 3.0 ASIC with 1.6Tb bandwidth
- Up to 100Gbps port speed
- StackWize virtual
- Redundant Power Supplies
- Hot-swappable
- AC/DC/Mixed power supplies supported
- More than 90% efficiency at 50% to 100% load
- Redundant load sharing (1+1) mode only
- Redundant Fans
- 5 variable-speed high efficiency fans
- Detect ambient temperatures and adjust fan speeds
- Fans are hot-swappable
- Front-to-Back airflow
- Can still operate with individual fan tray failure

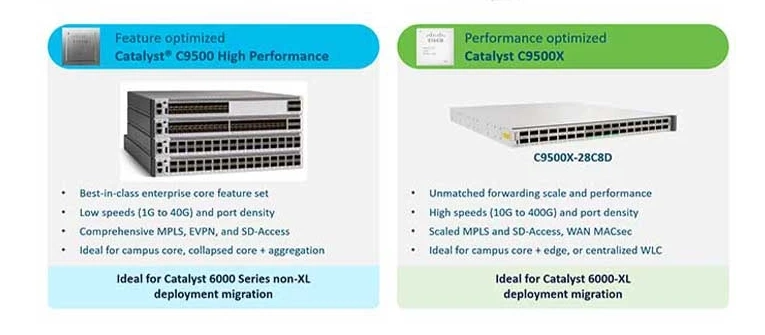

Cisco Catalyst 9500 Models
Catalyst 9500 10G/1G Switches: Supports 16 to 40 ports of 10G/1G with rich campus features and 8 x 10G/1G and 2 x 40G modular uplinks. (SKUs: C9500-16X, C9500-40X)
Catalyst 9500 40G Switches: supports 12 and 24 ports of 40G with rich campus features and 40G QSFP+. (SKUs: C9500-12Q, C9500-24Q)
Catalyst 9500 25G High-performance Switches: Support 24 and 48 ports of multi-rate 25G/10G/1G with rich campus features. (SKUs: C9500-24Y4C, C9500-48Y4C)
Catalyst 9500 40G high-performance: Support 32 ports of 40G with rich campus features and 40G QSFP. (SKU: C9500-32QC)
Catalyst 9500 100G High-performance Switches: An Industry-first 100G enterprise-class switch which support 32 ports of 100G with rich campus features. (SKU:C9500-32C)
Catalyst 9500X 400G, 100G/40G Switches:support 28 ports of 100G/40G QSFP28, 8 ports of 400G/200G/100G QSFP-DD. (SKU: C9500X-28C8D)
Cisco Catalyst 9500 Deployment Templates
The C9500 switches can be deployed in different user-customized templates through the network which allows customizable ACL TCAM resources. Core template offers maximize system resources for unicast and multicast routing and security while SD-Access template maximizes system resources for security to support fabric deployment. Using Cisco catalyst 9500 switches in distribution template would maximizes system resources for MAC and security and finally applying NAT template will maximize the NAT configurations on the switch.
Cisco Catalyst 9500 License
All Cisco Catalyst 9500 instances could be activated by using a specific smart license.
Cisco Catalyst 9500 Smart License
Cisco 9500 switch smart license is available for all members of 9500 series. Network Administrators can purchase these licenses and register their product instances through their Cisco smart account in Cisco Smart Software Management website. It also supports Cisco PLR Smart license to register all instances permanently.
Cisco Catalyst 9500 PLR License
This product supports PLR licensing model. As using PLR License enables all premium features and capabilities permanently and unlimited, there is no need to know and purchase special part numbers to activate specific features on your products, anymore. Click here to get more information about the PLR license.
Cisco Catalyst 9500 Order Pricing
You can achieve required information on ordering and pricing by catching our specialists. They can help you in a way that your order meets your expectations completely.
