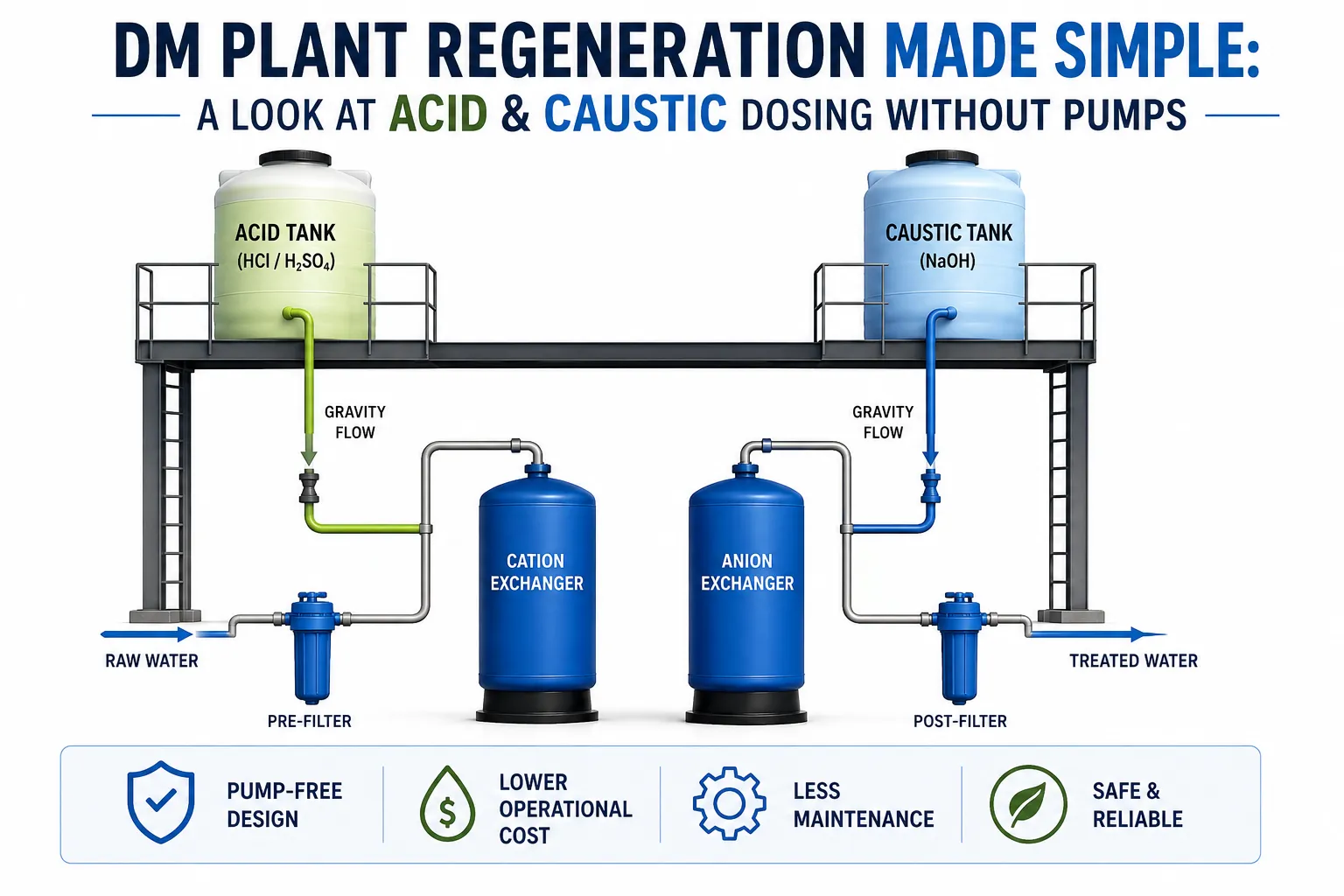

DM Plant Regeneration Made Simple: A Look at Acid & Caustic Dosing Without Pumps

A demineralisation plant can be designed around sophisticated resin technology, but regeneration still comes down to a basic requirement: getting the right chemical into the resin vessel at the right flow and concentration. Traditionally, this job has often been handled with chemical dosing pumps. But when the plant already has a suitable pressurised water stream, there is a simpler option.

A liquid ejector can use the energy of the motive water itself to draw and mix regeneration chemicals such as acid and caustic, without a separate dosing pump. This principle is particularly useful in DM plants, where chemical compatibility, reliability and low maintenance are critical. Sai-Tech Engineers, an Ejector Manufacturer in India since 1996, supplies ejector solutions specifically for water-treatment applications, including DM plant regeneration.

Why Regeneration Is Critical in a DM Plant

A demineralisation plant uses ion-exchange resins to remove dissolved ionic impurities from water. Typically, cation and anion exchange units work together to produce demineralised water, while mixed-bed systems may provide further polishing.

But resin doesn't work indefinitely.

Once its exchange capacity is exhausted, it has to be regenerated. This involves introducing chemicals that restore the resin's ability to exchange ions.

For cation resins, an acid such as hydrochloric acid or sulphuric acid may be used. Anion resins are commonly regenerated using caustic soda.

The effectiveness of this process depends heavily on how these chemicals are introduced and diluted.

Poor chemical distribution can mean incomplete regeneration, wasted chemicals and reduced resin performance. This is why the dosing arrangement deserves as much attention as the regeneration chemicals themselves.

How a Liquid Ejector Doses Chemicals Without a Pump

The operating principle is straightforward.

A liquid ejector uses a pressurised motive liquid, typically water, to create suction. The water passes through a specially designed nozzle, increasing its velocity and reducing pressure in the suction zone. This pressure difference draws the regeneration chemical into the ejector.

The two liquids then mix and leave the ejector as a combined stream.

In other words:

Motive water → Nozzle → Pressure drop → Chemical suction → Mixing → Resin vessel

There is no motor-driven dosing mechanism inside the ejector. Sai-Tech explains that its ejectors work on the Venturi principle and contain no moving parts, making them suitable for applications where plants want to reduce mechanical complexity.

What makes this different from a dosing pump?

A chemical dosing pump mechanically transfers the chemical. An ejector relies on fluid pressure and velocity to induce suction and accomplish the same basic dosing function.

That distinction becomes important in plants where reducing mechanical equipment, electrical dependency, and recurring maintenance is a priority.

Acid and Caustic Dosing in DM Plant Regeneration

The regeneration requirements of cation and anion units are different, but the underlying ejector principle remains the same.

Acid Dosing for Cation Resin

During cation regeneration, acid is introduced to restore the resin to its hydrogen form.

The acid needs to be mixed with water appropriately before it reaches the resin vessel. The ejector provides a controlled method of drawing the chemical into the motive-water stream and delivering the resulting mixture to the resin.

Because acids can be highly corrosive, material selection becomes an important part of the ejector design.

Caustic Dosing for Anion Resin

Anion resin regeneration typically involves caustic soda.

Here again, the ejector draws the caustic solution into the water stream, mixes it and sends the diluted chemical solution toward the resin vessel.

Sai-Tech identifies ejectors as a key application in DM water-treatment plants, including the regeneration of anion, cation and mixed-bed resins, as well as the handling of caustic soda.

Why Plants Consider Pump-Free Dosing

The biggest advantage isn't simply eliminating one pump.

It is reducing the number of mechanical components involved in an already chemical-intensive process.

1. No Moving Parts

A conventional dosing pump contains mechanical components that can wear and eventually require servicing or replacement.

An ejector operates without moving parts. The suction is generated by the interaction between the motive liquid and the ejector's internal geometry.

For plants running repeated regeneration cycles, this can translate into a simpler maintenance routine. Sai-Tech specifically highlights the absence of moving parts as one of its key ejector advantages.

2. Reduced Dependence on Electricity

A pump-driven dosing system needs an electrical supply to operate the dosing equipment.

An ejector does not require a dedicated motor because the motive water provides the energy required for suction.

This can simplify the dosing arrangement and eliminate one electrical component from the system.

Of course, the plant still needs a suitable pressurised water source. An ejector is not an independent energy source; it converts available motive-liquid pressure into suction and mixing.

3. Lower Mechanical Maintenance

What most people don't realise is that maintenance costs are not limited to replacing a failed component.

There is also inspection time, spare-parts inventory, downtime and the labour required to troubleshoot mechanical equipment.

Removing a dedicated chemical dosing pump can reduce these dependencies in applications where ejector operating conditions are suitable.

That is one reason Sai-Tech positions its ejectors as alternatives to expensive, high-maintenance pumping and dosing solutions with moving parts.

CSEL Ejector: Where Material Construction Matters

When handling regeneration chemicals, performance alone isn't enough. The ejector's material of construction (MOC) must also be compatible with the chemical being handled.

A CSEL ejector, meaning Carbon Steel Ebonite Lined Ejector, is one of the configurations available from Sai-Tech Engineers. The company manufactures ejectors in multiple MOCs, including MSEL, CSEL, PP, SS316 and Teflon-lined variants.

Why does this matter?

Because hydrochloric acid, sulphuric acid and caustic solutions don't place the same demands on equipment materials. Choosing an ejector purely on flow rate without considering chemical compatibility can create avoidable problems later.

For highly aggressive or high-temperature chemical applications, Sai-Tech also offers PTFE-lined ejectors, particularly for applications involving sulphuric acid and demanding corrosion conditions.

The correct choice therefore depends on the chemical, concentration, temperature, flow, pressure and operating conditions.

What Should Be Checked Before Selecting a DM Plant Ejector?

This is where engineering judgement matters.

An ejector should not be selected simply because another plant uses the same model. The operating conditions of the specific DM plant need to be considered.

Motive Water Pressure

The available water pressure determines whether sufficient suction can be generated. The actual operating pressure should be considered rather than relying only on the pump's rated maximum.

Chemical Flow Requirement

The required acid or caustic flow needs to be established based on the regeneration cycle and resin-vessel requirements.

Mixing Ratio

Sai-Tech manufactures standard 1:1 and 1:5 ratio ejectors, along with custom-ratio designs for applications that require something different.

Discharge Pressure

The pressure at the ejector outlet also affects performance. Downstream restrictions, pipe lengths and elevation differences should therefore be included in the design evaluation.

Material Compatibility

The chemical being handled should determine whether MSEL, CSEL, PP, stainless steel or a lined construction is appropriate.

This is why working with an experienced Ejector Manufacturer in India can be valuable. The goal isn't simply to supply an ejector; it is to match the ejector to the process.

Ejector vs. Dosing Pump: Which Makes More Sense?

There isn't a universal winner.

A dosing pump may be the right solution when the application requires independent mechanical dosing, variable flow control or operating conditions that don't support ejector-based suction.

An ejector becomes particularly attractive when the plant has adequate motive-water pressure and wants a simple, low-maintenance method of chemical induction.

The comparison becomes clearer when looking at the underlying design:

The important point is not that ejectors should replace every dosing pump. It's that some DM plant applications don't need a mechanically driven dosing system in the first place.

Simpler Regeneration Through Better Process Design

DM plant regeneration doesn't have to mean adding more mechanical equipment to achieve reliable chemical dosing.

When the process has the right motive-water conditions, an ejector can draw acid or caustic into the water stream, dilute it and deliver it toward the resin vessel, all without a conventional dosing pump.

That simplicity can mean fewer moving parts, less electrical dependency and a lower maintenance burden.

Sai-Tech Engineers has been developing and manufacturing ejectors since 1996 and supplies MSEL, CSEL ejectors, PP, SS, Teflon and other configurations for water-treatment and industrial applications. Its approach focuses not only on manufacturing but on matching ejector design, material, ratio and operating conditions to the customer's application.

For a DM plant evaluating pump-free regeneration, the right question isn't simply “Can we remove the dosing pump?”

It is: “Can our existing process pressure be engineered to do the dosing work reliably?”

When the answer is yes, a properly selected liquid ejector can turn a mechanically complex dosing arrangement into a much simpler part of the regeneration system.
