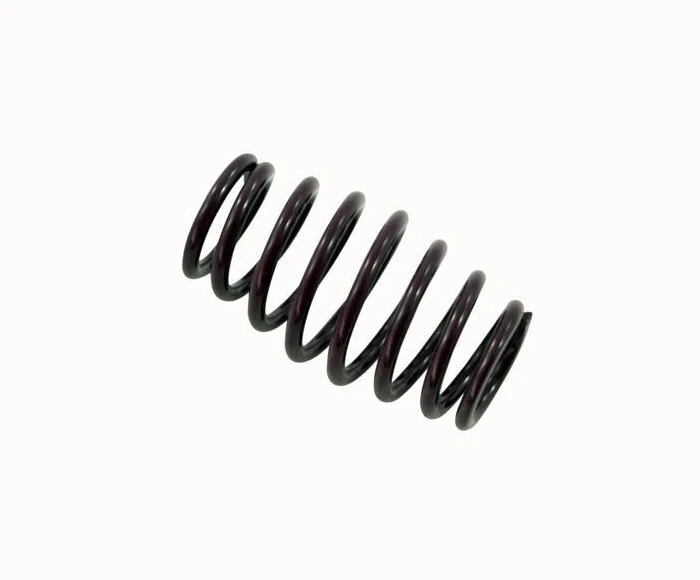

What are their most common uses if you are unfamiliar with barrel springs? Barrel springs are compression springs that store energy when compressed and release energy when they extend. Unlike ordinary compression springs, which are uniform from top to bottom, barrel springs are more comprehensive in the middle. The middle diameter is noticeably more significant than the top and bottom, giving the spring an overall barrel shape.
Here is our guide to all the information you need to know about barrel springs.
Is a Barrel Spring a Type of Compression Spring?
A barrel spring is often considered a type of compression spring. The distinction is that barrel springs are much better at preventing buckling than standard compression springs. Barrel springs function just as compression springs, absorbing force and then releasing that force when appropriate. Their shape makes them more flexible, using less space and fitting better in various designs.
Convex Springs (Barrel springs)
Convex springs are integral to numerous mechanical systems and are distinguished by their unique curved design. They feature a curved or bulged profile, distinct from traditional straight coil springs. Their sophisticated design requires precision in the curvature to ensure an even distribution of stress when compressed. Factors such as the degree of curvature, material properties, and overall dimensions define the spring's characteristics and performance. The main advantage of convex springs is their ability to provide a high force in a compact space due to their curved design. This makes them suitable for high-stress applications.
These springs are commonly employed in applications with limited space or a more concentrated load. Their unique shape makes them ideal for certain valves, actuators, and clutches, especially in the aerospace and automotive industries.
Conical Springs
Conical springs, known for their cone-shaped design, offer a unique configuration where the diameter of the coils decreases towards one end. Conical springs are crucial in various mechanical systems and are known for their adaptable design and efficient load management. This design is engineered for precision, ensuring effective operation under varying stress conditions. Material choice and coil dimensions are tailored to specific requirements, emphasizing performance and durability. They are used in mining industries where equipment such as crushers, vibrating screens, and feeders often use conical springs. Their ability to absorb high-impact forces and vibrations while maintaining stability is crucial in these applications.
Their progressive spring rate can be advantageous in handling varying loads, which is common in robotic arms and actuators. The primary advantage of conical springs is their ability to fit into smaller spaces while providing a progressive compression rate, making them suitable for complex mechanical systems.
Banana Springs (Sideload Springs)
Banana/sideload springs are less common in the spring family and are designed to handle loads applied laterally or sideways. These springs are beneficial in applications where space constraints prevent traditional springs or where the load is inherently unidirectional. Examples include specific automotive components, such as vehicle suspension systems. This unique feature requires a distinct structural approach to ensure stability and effective load distribution. The design often considers asymmetrical shapes and specific material properties to withstand sideload pressures.The primary advantage of banana springs is their ability to function effectively under lateral stress, a scenario where conventional springs might fail.
In Conclusion
Understanding of these components has deepened from the straightforward functionality of straight coil springs to the specialized uses of convex, concave, conical, variable, and sideload springs; each has its purpose across automotive, aerospace, electronics, construction, and industrial machinery industries. When selecting a Barrel Springs for an appropriate application, the key takeaway is to consider load requirements, space constraints, environmental factors, and cost. If you would like to learn more about it, visit the official website of C & J Spring.
