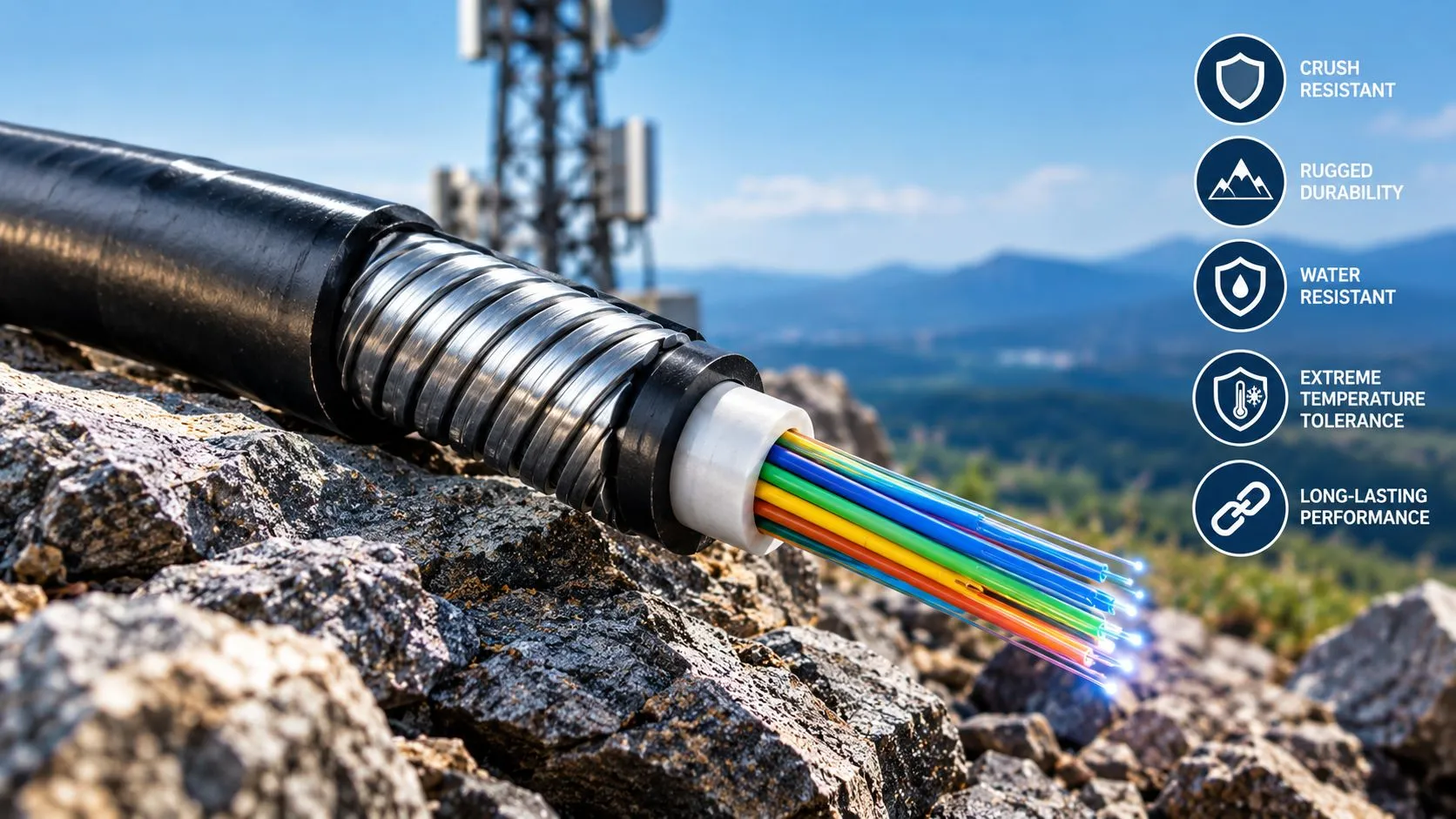

A custom network needs more than a cable that simply carries data. The cable must suit the equipment, route, fiber type, and physical demands of the site. An armored fiber-optic ruggedized design can provide stronger protection for links used in demanding locations. Selection should begin with the network requirement, then move through cable construction, connector choice, installation limits, and testing needs. This approach helps buyers select a cable that fits the complete connection instead of choosing by appearance alone. It also gives the supplier clear information for checking the cable against the planned use. A detailed specification can reduce errors before the cable reaches the installation site.
Define the Network Before Choosing the Cable
Start by listing the devices connected by the fiber link. Record the network type, transmission needs, distance, fiber count, and equipment interfaces.
A short connection inside a cabinet has different needs from a long link between buildings or a cable routed through an industrial area. Knowing the role of the link helps narrow the cable design before other choices are made.
The network plan should also show future connection points and the number of fibers needed. A correct fiber count prevents unused construction and avoids a shortage of strands during later changes.
Match Single Mode or Multimode Fiber
Fiber type is a key selection point. Single-mode fiber is commonly used for long-distance links, while multimode fiber is often used for shorter runs within buildings and facilities.
The transceivers at each end must support the selected fiber type. A cable should never be chosen without checking the optical interface of the connected equipment.
Fiber count also matters. A custom assembly may contain only a few strands or a larger group based on the network design. The supplier should receive the required count before preparing the cable.
The transmission distance should be checked at the same stage. Different equipment and fiber systems have different distance limits. Matching the cable to the transceiver and link length helps keep the optical design consistent from end to end.
Look at the Route, Not Just the Distance
Cable length is only one part of route planning. Study how the cable will travel from one device to another.
Check trays, conduits, cabinet entries, bends, moving sections, and areas exposed to contact with machinery. Note points that may place pressure on the cable or require stronger mechanical protection.
A ruggedized cable can support demanding routes, but it still has installation limits. The manufacturer's bend radius and pulling force ratings should be followed throughout the installation.
Also check the space available for cable entry and termination. A cable that is too large for a gland or conduit can create an installation problem even if its optical specifications are correct. Measuring the route and entry points first gives the supplier useful physical information.
Select Armor for the Actual Risk
Armor provides mechanical protection around the fiber assembly. The right construction depends on the type of physical stress expected at the site.
A fixed indoor route may need a different design from a plant floor or equipment connection exposed to repeated movement. Consider crushing force, abrasion, vibration, pulling stress, and accidental contact.
The goal is to choose suitable protection without making the cable difficult to route or terminate. Cable diameter and flexibility should be checked along with the armor specification.
Connector Choice Can Make or Break the Link
The cable ends must match the equipment. Confirm connector type, polish style, gender, keying, fiber count, and required termination method.
Connector orientation can also affect installation. Straight and angled options may suit different cabinet layouts. A clear connector drawing can help avoid errors during production.
The optical performance of the connector should also match the link requirement. Clean end faces and proper mating are essential for stable signal transmission.
Check Loss Before the Cable Is Ordered
Every fiber link has an optical power budget. Cable length, connectors, splices, and other components can contribute to total insertion loss.
Ask for the expected cable performance and compare it with the limits of the network equipment. This is especially useful for longer links or systems with several connection points.
A supplier should be able to provide relevant product specifications and test information for the selected assembly. These records help confirm that the cable meets the planned requirement.
Build the Specification in Writing
A written cable specification removes guesswork. Include fiber type, strand count, length, armor construction, jacket type, connector details, polarity, operating conditions, and testing requirements.
The document should also state any special installation needs. These may include repeated flexing, tight routing space, equipment movement, or specific entry hardware.
Review the specification against the network drawing before production. A short review can catch an incorrect connector, fiber count, length, or cable construction before the order moves forward.
Final Look:
A custom fiber cable should be tested before it enters service. Visual inspection can check connectors and physical construction, while optical testing can verify link performance. Test records should identify the cable and its measured results. These records give technicians useful reference data for future maintenance and fault checks.
Testing can also confirm that the finished assembly matches the ordered configuration. Any issue found before deployment is easier to address than a problem found after the cable has been installed across a busy network. For related industrial network connections, industrial M12 Ethernet cables can support equipment links that need suitable connector and cable construction for demanding installations.
