The technique of earthing or grounding electrical currents into the earth is known as earthing. The electrical voltage of interconnections to the earth's resistive surface is described as the earthing framework.

chemical earthing rods are widely used all over the world. These are very well used for their long-term reliability, dependability, and efficacy. These things are made with high-quality raw materials to meet the needs and wishes of customers.

Any electrical equipment that does not have to earth can fail, posing a risk to human life if it comes into touch with fault currents. The peak short circuit flow of any electrical system is determined by the transformer's capacity and the type of load, which might vary in multitudes of amperes. The inspection of the pit is appropriate for most lightning protection and earthing systems. It secures the Earth Rod interconnection and allows it to inspect.

An earthing pit is a pit excavated in the earth with some typical filling in an electrical system. Earth trenches are mostly used to protect against short circuits. It also serves as a reference point for various electric power sources.

Earth-pits are now the predominant way of earthing, particularly for electrical networks. Electricity always takes the route of low resistance, and earthing pits are meant to lower ground resistance, preferably to 1 ohm, to redirect the highest voltage away from a circuit.

The optimal earth resistance value should be approximately 5 Ohms. To preserve the value of earth resistance, we inject water and sodium into the pits to serve as an electrolyte. It keeps the soil pit wet and moist.

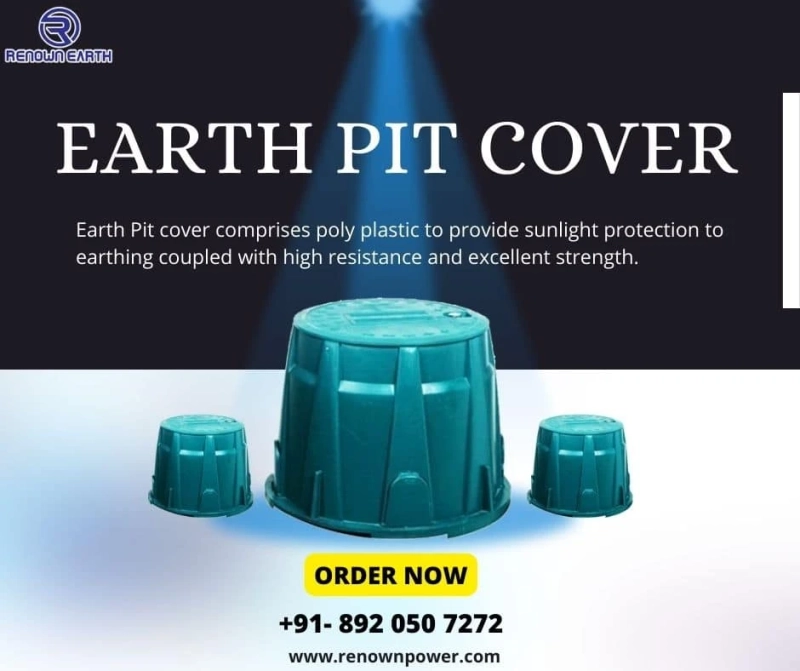

Earth Pit Cover is made of high-quality materials that are highly durable and long-lasting. They are utilized to ensure the protection of all earthing terminations. They offer convenient access to basic electrical earth testing. They give safe and easy-to-use access.

Earth Tester is used to measure soil resistivity. It is also known as the MEGGER. It includes a voltage source, an ohmmeter, toggles to alter the equipment spectrum, wires to connect the terminal to the Earth Electrode, and spikes. The Four Terminal Earth Tester Device that measures it.

Four Basic types of Earth Pit Cover:

  1. Pipe Earthing: A galvanized steel perforated pipe is placed vertically, connecting all electrical wires to the ground, the depth of which is determined by soil conditions. In contrast to other earthing procedures, pipe earthing is the most cost-effective.
  2. Rod Earthing: In this approach, a copper bonded earthing rod with a diameter of 16mm and a galvanized metal steel/iron or hollow section with a diameter of 25mm is placed vertically at a depth of at least 2.5m. It appears to be an implanted electrode that decreases the earth's resistance to the required value. Rod earthing is executed in the same way pipe earthing is done.
  3. Plate Earthing: A plate constructed of galvanized iron or copper is buried vertical at a depth of at least 3 meters below ground level. The plate at this location links all the components to the ground.
  4. Mat Earthing: Earth mats, also known as grounding mats, bring the earth's energy indoors. They typically connect through a wire put into an electrical outlet's ground port. They aid in minimizing ground potential and protecting against the defective current. They are utilized in areas where a high fault current is expected.


The addition of charcoal and water to an earthing pit reduces soil resistivity. The coating of salt and charcoal contributes to the low resistance to the earth's faulty currents. Because of the ionic properties of the composition, they will keep the moisture content around the soil pit constant.

Put the rod on the ground. You must push your pole through the earth. The electrical code requires it to have 8 feet of ground contact, so you must push it back down. It is critical for any home to avoid a little short circuit from causing an electrical fire. If your electrical systems fail, the grounding rod will conduct all the discharged electricity away from your home and into the earth. Earthing is a technique used to protect yourself from electric shock.

Pit of Inspection Earth Bars is used to make it easier to test earthing systems. The Earth Bar may be inserted into slots to allow for various conductor connections. Copper is the ideal material for constructing earthing applications, regardless of below or above ground.

The Cement Inspection Pit safeguards the Earth Rod interconnection and allows it to be inspected. An Earth Bar can be installed diagonally in holes provided for many conductor connections in the Concrete Inspection Pit. Pits provide a safe and consumer-friendly access point for maintenance and the periodic testing of a subterranean earthing system's electrical resistance. Simply remove the cover from the fitted earth pit and attach a lead from the impedance meter to the grounding system conductor to accomplish regular electrical resistance measurements.

We make compact and heavy load carrying pit covers, cement type pit covers, and other competitive items related to casting iron, with great earthing pit cover qualities such as severe weather resistance, excellent electrical properties, chemical resistance, and durability. It is available in three different shapes: square, rectangle, and round.

It comes in a range of weights, sizes, and heights. It is non-toxic and non-staining, has no water absorption, and is simple to install. It has a radius and a conical shape at the top compared to the bottom. The distinctive shape has the additional benefit of being securely retained by the surrounding soil and not readily expelled when pushed.

Resource Box: Renown Earth has always placed a premium on producing high-quality Earth Pit Cover. We never cut corners with the quality of the products. We believe in providing deliverables with the greatest attention. Our efforts are rewarded with favorable feedback. We are distinguished by our unwavering commitment to providing the finest possible service to our clients.

Download our catalog to learn more about our world-class Earthing/Grounding Solutions and Lightning Protection. Above all, you can contact us by email or by phone. You've arrived at the correct location. Our staff will make every attempt to bring excellence to your door.
