Industrial operations are becoming increasingly connected. PLCs, SCADA systems, sensors, cameras, controllers, and edge gateways now depend on reliable network communication to exchange data and support remote monitoring.
However, connectivity challenges become more complicated when these systems are deployed in remote factories, energy sites, agricultural facilities, transportation networks, or other locations where traditional wired internet may not be practical.
A network outage can interrupt monitoring, delay maintenance, disconnect remote equipment, and potentially affect production. At the same time, remote industrial systems must be protected against unauthorized access.
This is where the combination of WireGuard VPN and Dual-SIM failover can make a significant difference. By combining secure remote communication with connectivity redundancy, industrial networks can become more resilient, manageable, and reliable.
Why Industrial Networks Need More Than Basic Internet Connectivity
For a conventional office, a temporary internet outage may simply prevent employees from browsing the web or accessing cloud applications. In an industrial environment, the consequences can be much more serious.
A disconnected industrial network can affect:
- PLC and HMI communication
- SCADA monitoring
- Remote machine diagnostics
- IoT sensor data
- Video surveillance
- Equipment alerts
- Cloud-based analytics
- Remote maintenance
Remote sites can be especially difficult to troubleshoot because technicians may need to travel long distances simply to restore network connectivity.
Therefore, industrial networking requires two important capabilities:
Reliable connectivity and secure remote access.
Dual-SIM technology addresses the first challenge, while VPN technology helps address the second.
What Is Dual-SIM Failover?
A Dual-SIM industrial router contains two SIM slots, allowing the device to use two cellular network connections.
One SIM can serve as the primary connection while the second operates as a backup. If the primary connection fails, the router can automatically switch to the secondary network.
The basic architecture looks like this:
SIM 1 → 4G LTE Router → Industrial Devices → Cloud
If SIM 1 becomes unavailable:
SIM 1 Failure → Automatic Failover → SIM 2 → Industrial Devices → Cloud
This approach reduces dependence on a single mobile carrier.
The OpenWrt Dual SIM Industrial Router supports two standard SIM cards with automatic failover and link monitoring. Its product specifications describe automatic switching when the active connection is lost.
How Dual-SIM Failover Helps Prevent Downtime
Cellular connectivity can be affected by several factors, including:
- Carrier outages
- Temporary signal degradation
- Network congestion
- Maintenance activities
- Coverage limitations
- SIM or connection failures
If a remote industrial installation depends on only one cellular connection, any of these issues can potentially disconnect the site.
With dual-SIM failover, the router can maintain a secondary connectivity path.
For example, imagine a remote water-treatment facility using SIM 1 from one carrier. If the carrier experiences an outage, the router can detect the connection failure and switch to SIM 2 from another network.
This can allow connected systems to continue communicating without requiring an employee to physically access the router.
What Is WireGuard VPN?
WireGuard is a modern VPN protocol designed to create encrypted network tunnels between authorized devices and networks.
In an industrial environment, a VPN can provide a secure communication path between a remote engineer or central control center and equipment located at a remote site.
A simplified architecture looks like this:
Remote Engineer
↓
Encrypted WireGuard VPN Tunnel
↓
Industrial Router
↓
PLC / SCADA / IoT Devices
Instead of exposing industrial equipment directly to the public internet, the router can act as a secure gateway for authorized remote communication.
The industrial router supports native WireGuard along with other VPN protocols including OpenVPN, IPsec, L2TP, and PPTP.
Why WireGuard Is Useful for Industrial Applications
Industrial networks often have limited computing resources and require stable communication.
WireGuard is attractive for these environments because of its lightweight design and modern cryptographic approach. It can provide encrypted connectivity without requiring a complex VPN architecture.
Potential industrial applications include:
- Secure PLC access
- Remote SCADA monitoring
- Machine diagnostics
- IoT gateway management
- Remote configuration
- Secure access to industrial control networks
For example, an engineer working from a central operations center could establish a WireGuard connection to a remote industrial router and securely access authorized equipment.
What Happens When VPN and SIM Failover Work Together?
The real advantage comes from combining both technologies.
Consider a remote manufacturing facility.
The facility uses:
- PLCs
- SCADA software
- Industrial sensors
- IP cameras
- Edge gateway
- Dual-SIM industrial router
Under normal conditions:
SIM 1 → 4G LTE → WireGuard VPN → Control Center
If SIM 1 fails:
SIM 1 ❌ → Automatic Failover → SIM 2 → WireGuard VPN → Control Center
The router provides both connectivity redundancy and a secure communication path.
This creates a stronger architecture than simply relying on a single cellular connection or an unsecured remote-access method.
Maintaining Secure Remote Access to PLC and SCADA Systems
Remote access is increasingly important for industrial maintenance.
Instead of sending technicians to every remote site, organizations can use secure remote connectivity to:
- Check machine status
- Review alarms
- Diagnose faults
- Monitor production data
- Update configurations
- Troubleshoot equipment
However, remote access should be carefully controlled.
A VPN-enabled industrial router can act as the security gateway between the remote industrial network and authorized users.
This approach helps organizations avoid directly exposing sensitive devices such as PLCs and SCADA systems to the public internet.
OpenWrt Adds Networking Flexibility
Modern industrial networking often requires more customization than a standard consumer router can provide.
OpenWrt provides a flexible software environment that can support additional networking, security, automation, and IoT functions.
The router uses OpenWrt and supports more than 3,500 packages, including options related to MQTT, firewalls, load balancing, and automation.
This means an industrial router can potentially function as more than an internet gateway.
Depending on the deployment, it can support functions such as:
- VPN gateway
- Firewall
- MQTT-enabled IoT gateway
- Network monitoring
- Load balancing
- Remote management
- Custom automation
This flexibility is particularly valuable when industrial networks have different requirements from site to site.
Connecting Multiple Industrial Devices
Remote industrial environments often contain several Ethernet devices that need to share the same cellular connection.
A router with multiple LAN interfaces can simplify this deployment.

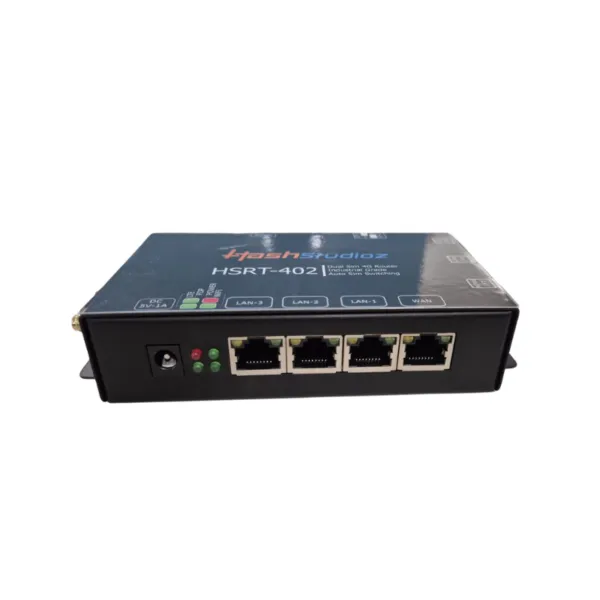

The router provides 1 WAN and 3 LAN Ethernet ports, allowing devices such as PLCs, sensors, controllers, and edge gateways to connect directly.
A typical setup could look like:
PLC + HMI + Sensors + Edge Gateway
↓
Dual-SIM Industrial Router
↓
4G LTE
↓
Secure VPN
↓
Remote Control Center
This architecture provides a centralized communication point for remote industrial equipment.
Heartbeat Monitoring and Connection Recovery
Failover is most effective when the router can continuously monitor the health of the network connection.
Heartbeat monitoring can help detect whether the active link is still available. If a connection becomes unavailable, the router can initiate recovery or failover procedures.
The router includes heartbeat monitoring and automatic failover features intended to improve connection stability.
This can be particularly useful for unmanned industrial sites where manual network recovery is difficult.
Industrial Hardware Matters Too
Network reliability is not only about software.
Industrial routers may need to operate in environments with temperature variations, vibration, dust, electrical fluctuations, and limited maintenance access.
The router features a rugged aluminum alloy enclosure with an IP30 rating and a specified operating temperature range of -35°C to +75°C. It also supports a 5V–36V DC power input.
These characteristics can make industrial-grade networking hardware more suitable for factory floors, outdoor cabinets, energy installations, transportation systems, and other demanding environments.
Industrial Applications
Manufacturing and Automation
Factories can use dual-SIM connectivity and VPN access to remotely monitor PLCs, HMIs, robotic controllers, and production equipment.
Smart Energy
Solar farms, wind installations, and utility infrastructure can use cellular connectivity to transmit operational data from remote sites.
Agriculture
Remote irrigation systems, soil sensors, environmental monitoring equipment, and agricultural controllers can use cellular networking to communicate with centralized systems.
Transportation
Industrial routers can provide connectivity for fleet monitoring, GPS systems, cargo tracking, and other connected transportation applications.
Security and Surveillance
Remote IP cameras and monitoring systems can use cellular connectivity while VPN technology provides secure access for authorized personnel.
Oil, Gas, and Mining
Remote industrial sites often require reliable communication despite limited infrastructure. Dual-SIM connectivity can provide an additional layer of redundancy while VPN technology can secure remote communications.
The router lists industrial automation, smart energy, smart cities, surveillance, oil and gas, agriculture, transportation, and other IoT applications among its use cases.
Key Benefits of Combining WireGuard and Dual-SIM Failover
The combination provides several important advantages:
1. Connectivity Redundancy
Two SIM options reduce dependence on a single cellular network.
2. Secure Remote Access
WireGuard provides an encrypted tunnel for authorized remote communication.
3. Reduced Downtime
Automatic failover can help maintain connectivity when the primary network becomes unavailable.
4. Centralized Management
Remote management capabilities can simplify monitoring and configuration.
5. Flexible Industrial Networking
OpenWrt provides customization options for different IoT and automation requirements.
6. Better Remote Troubleshooting
Engineers can securely access remote systems without always traveling to the physical site.
Best Practices for Reliable Industrial Connectivity
Organizations planning a remote industrial network should consider the following:
Use two independent cellular networks:
Where possible, select SIMs from different carriers to improve redundancy.
Separate critical devices from public networks:
Use appropriate network segmentation and firewall rules.
Use VPN-based remote access:
Avoid unnecessarily exposing PLCs, SCADA systems, and controllers directly to the internet.
Monitor connection health:
Heartbeat monitoring and network alerts can help identify connectivity problems quickly.
Choose industrial-grade equipment:
Consider temperature range, enclosure protection, power requirements, and continuous-operation capabilities.
Plan for remote management:
Features such as SSH, HTTPS, SNMP, and Syslog can make distributed deployments easier to manage.
The Future of Reliable Industrial IoT Networking
As industrial organizations connect more equipment to cloud platforms and remote management systems, network infrastructure will become increasingly important.
The future of industrial networking is not simply about faster connections. It is about creating networks that are:
- Reliable
- Redundant
- Secure
- Remotely manageable
- Flexible
- Designed for industrial environments
Technologies such as WireGuard VPN and dual-SIM failover can contribute to this architecture by addressing two fundamental requirements: secure communication and connectivity resilience.
Conclusion
Industrial IoT networks need to remain available while protecting sensitive equipment from unauthorized access. A single cellular connection can create a potential point of failure, while unsecured remote access can introduce unnecessary security risks.
Combining WireGuard VPN with Dual-SIM failover provides a practical approach to addressing both challenges.
Dual-SIM failover provides connectivity redundancy, while WireGuard creates a secure encrypted tunnel for remote access. When these capabilities are combined with OpenWrt flexibility, connection monitoring, multiple LAN ports, and industrial-grade hardware, businesses can build more resilient remote networking infrastructures.
For organizations connecting PLCs, SCADA systems, sensors, controllers, and IoT devices across remote locations, this combination can help create an industrial network that is not only connected, but also secure, redundant, and easier to manage.
For a closer look at this type of solution, explore the OpenWrt Dual SIM Industrial Router with WireGuard VPN, which combines native WireGuard, automatic dual-SIM failover, OpenWrt customization, multiple Ethernet ports, and industrial-grade hardware.
