A plastic component may look simple once it leaves the molding machine. However, producing that component consistently requires careful behind-the-scenes planning. The mold must handle pressure, temperature, material flow, cooling, and repeated production cycles. Even a small tooling issue can affect part quality, cycle time, maintenance, and overall manufacturing costs.
That makes tooling one of the most important stages in plastic part production. Good Injection Mold Tooling does more than create the required shape. It establishes the foundation for repeatable production, accurate dimensions, efficient cycles, and dependable part quality.
Why Does Tooling Influence Part Quality?
A mold determines how molten plastic enters the cavity, fills the available space, and cools into its final shape. Each stage can influence the appearance and performance of the finished component. For example, uneven cooling can cause warpage. Poor gate placement can create visible marks or inconsistent filling. Inadequate venting can trap air inside the cavity and affect the finished surface.
These issues are easier to prevent during tooling development than during mass production. Engineers therefore examine part geometry, material characteristics, tolerances, and production requirements before the mold reaches the machining stage. The objective is not simply to create a functional mold. It is to create tooling that can perform reliably throughout its intended production life.
What Goes Into Effective Tool Design?
Tool design requires several decisions that directly affect manufacturing performance. A well-planned mold considers the part itself and the conditions under which it will be produced.
Part Geometry
Complex shapes may require slides, lifters, inserts, or other specialized features. Engineers must determine how these elements affect mold construction and part removal.
Material Behavior
Different resins respond differently to heat, pressure, shrinkage, and cooling. Understanding these characteristics helps engineers develop suitable cavity and runner configurations.
Cooling Strategy
Cooling represents a major part of the molding cycle. Properly positioned channels help control temperature and support consistent dimensional results.
Ejection Method
The part must leave the mold without unnecessary stress or surface damage. Ejector placement should therefore complement the component's geometry.
How Can Tooling For Injection Molding Improve Efficiency?
Production efficiency depends heavily on how well the mold is designed. A carefully engineered tool can shorten cycle times while maintaining consistent part quality. Cooling efficiency is particularly important. Faster, more balanced heat removal can reduce unnecessary waiting between cycles. At high production volumes, even small cycle-time improvements can create significant capacity gains.
Tooling design also influences maintenance requirements. Components that wear out quickly may require frequent servicing or replacement. Selecting suitable materials and designing accessible mold features can simplify maintenance over time. Manufacturers should therefore consider the entire production lifecycle when evaluating a mold. The initial tooling cost represents only one part of its overall value.
Why Should Manufacturers Validate Tooling Before Production?
A mold can look complete but still not be production-ready. Testing lets manufacturers identify issues before they affect large quantities of finished components.
During mold trials, manufacturers can evaluate:
- Cavity filling
- Part dimensions
- Surface appearance
- Ejection performance
- Cooling behavior
- Cycle consistency
Trial runs also provide useful information for process optimization. Engineers can adjust molding parameters when necessary and determine whether tooling modifications would improve results. This stage becomes especially valuable for complex components with tight tolerances. Making a controlled adjustment during validation is usually easier than correcting widespread defects after production begins.
The Role of Precision Manufacturing

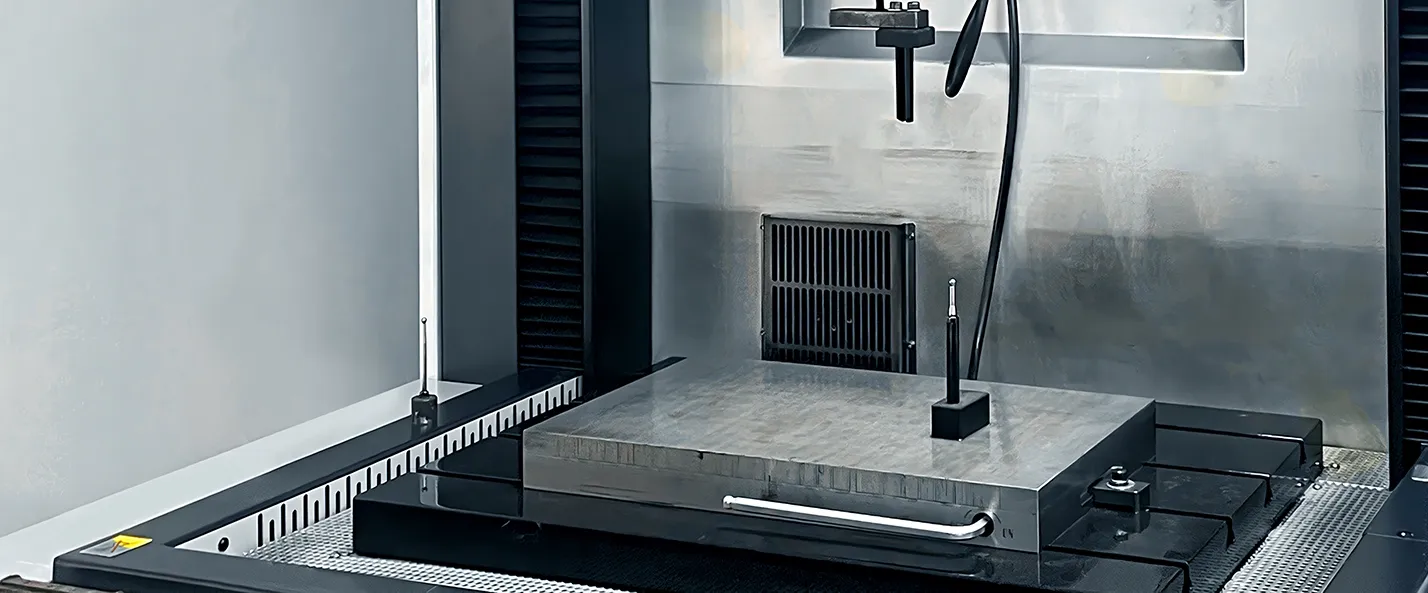

Modern tooling relies on advanced machining and measurement technologies. CNC machining, EDM, precision grinding, and coordinate measurement can help achieve the accuracy required for demanding applications. However, equipment alone does not guarantee successful tooling. Skilled engineers must understand how individual components interact within the complete mold assembly.
For example, a cavity may meet its dimensional specifications on its own. Yet poor alignment with another mold component can still create flash or premature wear. Precision therefore involves relationships between components, not just their individual measurements. Quality inspections throughout machining and assembly help identify these issues before the mold reaches production.
When Should You Consider Injection Mold Tooling Services?
Professional tooling support is especially valuable when a project involves complex geometry, tight tolerances, demanding materials, or high production volumes. Experienced Injection Mold Tooling Services can support several stages of development, including design evaluation, mold engineering, machining, assembly, testing, and refinement.
This integrated approach can simplify communication because engineering decisions remain connected throughout the project. It also allows manufacturers to identify potential production concerns earlier. For businesses developing new products, tooling expertise can influence decisions well beyond the mold itself. Design adjustments made during development may improve manufacturability, simplify assembly, or reduce production complications.
Looking Beyond the Initial Investment
Evaluate tooling by the value it creates throughout production. A cheaper mold may look attractive at first, but frequent maintenance, inconsistent parts, and longer cycle times can raise its real cost.
A well-engineered mold can support repeatable production for years. Its value becomes clearer when considering reduced downtime, fewer rejected parts, easier maintenance, and consistent output.
Manufacturers should also consider future production requirements. A mold designed around realistic volume expectations can provide greater flexibility as demand changes.
What Should Buyers Ask Before Choosing a Tooling Partner?
Carefully evaluate a supplier's capabilities before starting any tooling project. Buyers should look beyond equipment lists and ask how the manufacturer approaches engineering challenges.
Important questions include:
- Does the supplier review part designs?
- Can it recommend tooling improvements?
- How are molds tested before delivery?
- What inspection methods are available?
- Can the tooling support expected production volumes?
- How does the supplier handle modifications?
Clear answers better indicate technical capability than a quotation alone. Tooling decisions can influence production for years, so choosing the right manufacturing partner is an important part of the sourcing process.
Building Better Molds Starts With Better Planning
Effective tooling connects product design with reliable manufacturing. When engineers consider material behavior, cooling, ejection, tolerances, and maintenance from the start, the finished mold better meets real production demands.
For manufacturers seeking experienced tooling support, Pioneer Plastech (Shenzhen) Ltd. provides precision engineering and mold development capabilities for diverse plastic manufacturing requirements. Its approach focuses on practical tooling solutions that support accuracy, consistency, and efficient production.
Contact the team to discuss a tooling project and explore an approach suited to its specific manufacturing requirements.
