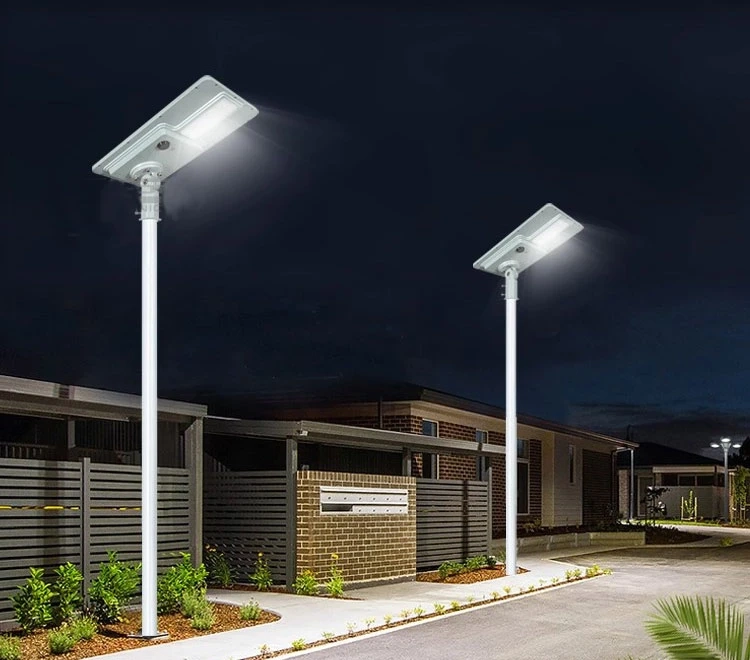

Integrated Solar Street Light

https://chinastreetlight.com/products/a-80w-solar-street-light

[caption class="snax-figure" align="aligncenter" width="1140"][/caption]Integrated Style Design, which is Simple, Fashionable, Portable & Practical;

With Solar Energy to Supply the Power, Protection of the Earth Resources;

With Infrared Human Body Induction Technology,when someone comes, Light work with full power, otherwise work with 30% or 50% Low Power, Backup a longer lighting time; Sensor Induction Distance 9~12M;

Photosensitive Control, When Sunlight Enough for Charging, Automatic Lighting When No Sunlight.

With Lithium-ion LiFePO4 battery to Ensure a Longer Lifespan;

Without Cable, Easy for Installation; Waterproof, Safe and Reliable;

With the idea of modular design,convenient for Installation, Maintenance and Repair;

Using Aluminum alloy as the main body material,with good rust and corrosion Resistance.[caption class="snax-figure" align="aligncenter" width="1140"][/caption]

Integrated Solar LED Street Light (80W)
Model: SSL80WASolar PanelMax Power18V/95W Mono-crystalline Silicon)Charge TimeBy Sunlight 6~8 HoursLife Time25 YearsWorking Temperature-30℃~+70℃BatteryTypeLithium Battery(12.8V/54AH)Color Tem.6000-6500KLife Time5 YearsMounting Height9-10mLED LampMax Power12V / 80WSpace Between Lamp40~50mChip BrandPhilip ( High Flux)Lamps MaterialAluminum AlloyLumen9600-10000lmWarranty Period2 YearsLife Time50000 hoursCertificateCE / ROHS / IP65Viewing Angle120°Packing Info.:20GP180pcsDischarge TimeFull Power17 hours40GP380pcsHalf Power34 hoursProduct Weight26 kgPackingProduct Size1130*550*160mmG.W. for Carton28 kgCarton Size1350*610*220mm

Smart control system,6 working mode can be choos:



Light Control Mode(L): On at dark and Off at dawn, Lighting All Night



Microwave Mode(M): After dark, people come full-brightness, people go far Dim



Time Mode(T):Lighting 6 hours off After dark.



Time+ Microwave Mode(U): After 6 hours of Light After dark. Start the M mode, people come full-brightness, people go far Dim



Demo mode ( DEMO) Test button for M.



Off mode ( OFF) Shutdown state, do not lighting days and all night.



Mircowave sensor
With infrared body sensor will work automaticlly controlled by intelligent mode. 100% full bright mode when people pass through and energy-saving mode when people pass leave away



MPPT Controller



LiFePO4 Lthium battery
lthium battery has three main characteristics:reduce size,hig-capacity and long lifespan.



with Philip LED & Lens
luminous effiency up to 150lm/w,and keep permanent stability as well as comfortable visual experience.
