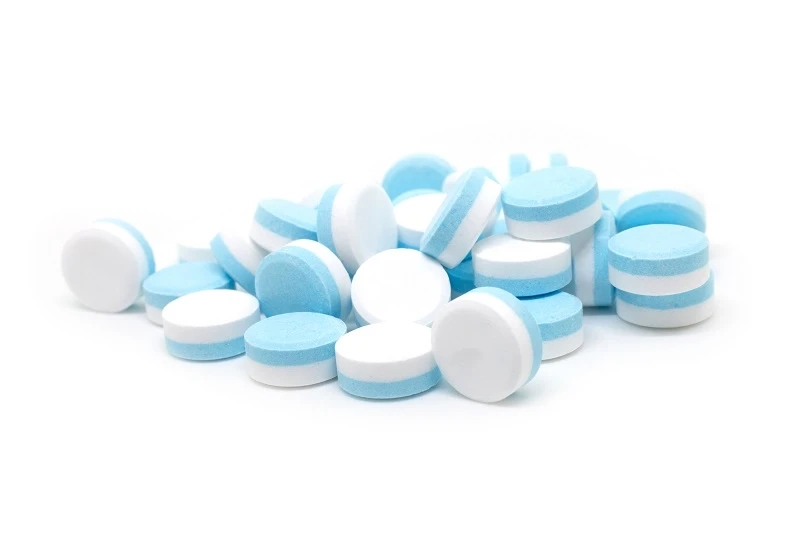

Bilayer tablets represent a significant innovation in oral drug delivery, enabling the integration of two drugs or release profiles in a single, compact dosage form. These tablets have proven valuable for combination therapies, particularly when drug release timing or chemical incompatibility must be carefully managed.
Their unique architecture supports both fast-acting and prolonged-release properties, enhancing therapeutic efficacy and patient convenience. However, translating this design into a consistent, scalable product requires expertise in formulation science and precision engineering.
An Overview of the Manufacturing Process
Bilayer tablets are made using rotary tablet presses equipped with dual hoppers. The first granulation is filled and lightly compressed to preserve surface features necessary for adhesion. The second layer is then introduced and the tablet is subjected to final compression to form a cohesive unit.
Despite the apparent simplicity of this method, achieving consistent quality requires controlling numerous factors. These include maintaining proper weight distribution, ensuring solid bonding between layers, and avoiding contamination. Delamination remains one of the most challenging quality defects in this process.
Common Manufacturing Challenges
Delamination arises when the layers fail to bond properly, often due to poor material compatibility or incorrect compression settings. The issue compromises the structural stability and drug delivery function of the tablet. Environmental factors, such as humidity, can exacerbate delamination risks during distribution.
Another recurring problem is inconsistency in layer weights. Uneven granule flow or inaccurate die filling can result in suboptimal dosing. Furthermore, if the mechanical characteristics of each layer differ too much, internal stress builds up during compression, leading to structural issues like capping.
Excessive use of lubricants, particularly internal ones, can further impair bonding. This is particularly problematic when using polymers, which are less tolerant of lubricant interference.
Optimisation Strategies
Using excipients with matching compaction behavior can significantly improve bonding between layers. When disparities exist, shared excipients can be used to align the mechanical performance of the two layers.
Compression should be carefully staged. The initial layer must retain some texture to enable adhesion. Over-compression leads to a smooth surface, undermining the bond. The second compression should be powerful enough to secure the layers without causing structural strain.
Modern tablet presses with intelligent control systems can fine-tune each stage of production. Real-time monitoring of weight, force, and speed ensures high reproducibility and reduces the risk of product defects.
Adopting external lubrication—such as applying lubricant to tooling surfaces—helps reduce lubricant interference in the formulation, strengthening interfacial adhesion and improving tablet robustness.
Technological Innovations Supporting Production
Simulation tools like finite element analysis have made it possible to virtually test material performance under compression. These predictive models help identify stress points and optimize formulation before production begins.
Advancements in formulation science, including buffer layers and specially engineered granules, offer improved stability and broaden the applicability of bilayer tablets for complex regimens.
Addressing Production Deficiencies
To minimize delamination, balanced layer ratios and minimal pre-compression help retain bonding surface texture and reduce stress concentrations. This ensures a solid connection between the layers.
Consistency in layer weight can be maintained using automated presses with individual layer weight detection systems. These real-time adjustments ensure regulatory compliance and therapeutic precision.
Conclusion
Bilayer tablets are a powerful tool for delivering complex drug therapies, enabling the synchronization of release mechanisms in one formulation. While their manufacturing poses significant challenges, these can be overcome with thoughtful formulation, advanced technology, and meticulous process control.
As innovations in pharmaceutical engineering continue to evolve, bilayer tablets will remain a cornerstone of modern drug delivery strategies.
