A coordinator finalizes a coring schedule, locks in the budget, and then discovers mid-project that scanning wasn't included in the original scope. Now there's an unplanned line item and a delay nobody accounted for. GPR for concrete scanning should be part of the plan from the very first budget draft, not an afterthought added once drilling is already underway. According to the American Concrete Institute (2023), close to 30% of concrete drilling incidents trace back to unmarked utilities or reinforcement damage — damage that planning for a scan up front would have prevented. This guide walks through what GPR scanning covers, why it belongs in the original scope of any core drill service, how the process runs, what it costs, and where pull test construction and Windsor probe checks fit into the schedule.
What Is GPR for Concrete Scanning?
GPR for concrete scanning uses ground-penetrating radar (GPR), equipment that sends electromagnetic pulses into concrete and reads the signal that reflects back. Rebar, post-tension cables, conduits, and voids each bounce radar differently than solid concrete, letting a trained technician map hazards before anyone drills into the surface.

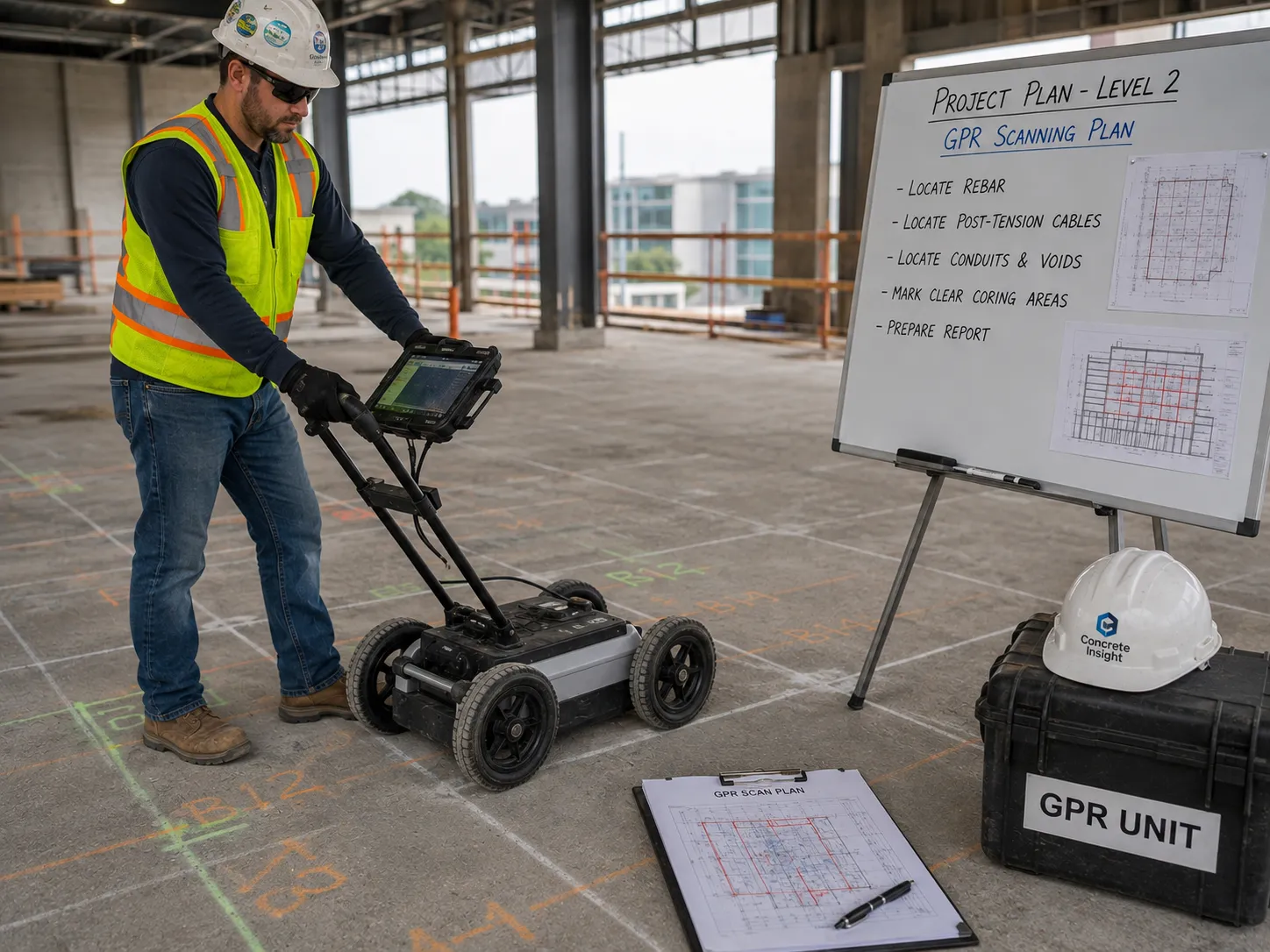

A technician moves the GPR unit across the slab in a systematic grid pattern. When the unit passes over a hazard, the connected display shows a distinct signal, and the technician marks that location directly on the concrete with paint or chalk. For a coordinator planning a multi-trade schedule, this creates a single, physical reference point that every crew can work from without confusion or re-checking.
GPR requires no radiation and no evacuation zone, unlike X-ray-based detection, so it can run on an active site without pulling other trades off the floor. Most standard slab sections scan in under an hour, with results ready the same day — a detail that matters when scanning needs to fit inside an already tight schedule.
What GPR scanning typically identifies:
- Rebar — steel reinforcement bars embedded for structural strength
- Post-tension cables — high-tension cables carrying major structural load
- Conduits and electrical lines — power and data cabling inside the slab
- Plumbing lines — water and drainage pipes cast into concrete
- Voids — hollow or weak sections that could affect structural integrity
Why Should Scanning Be Part of the Original Core Drill Service Scope?
When GPR scanning gets added after the budget and schedule are already locked, it usually shows up as an unplanned cost and an unplanned delay. Building it into the original scope of a core drill service avoids both problems, since the cost and time are accounted for from day one rather than negotiated mid-project.
There's a financial argument too. A severed post-tension cable can cost tens of thousands of dollars to repair and can stall an entire floor's schedule for days while engineers assess the damage. On one commercial project, a coordinator included scanning in the original RFP for the core drill service rather than treating it as an add-on — the resulting scan caught a conduit running through a planned anchor line that wasn't shown on the as-built drawings, avoiding a rework order that would have cost several times more than the scan itself.
Reasons to build scanning into the original scope:
- Avoids surprise costs — scanning is budgeted, not negotiated mid-project
- Protects the schedule — no gap between "drilling starts" and "scanning gets done"
- Simplifies vendor selection — a single RFP can request scanning and drilling together
- Meets owner and spec requirements — many contracts now require documented scans before permitting drilling
How Does the Process Fit Into a Planned Schedule?
The process typically opens with a site walk, scheduled early enough that the results can inform final drill locations before other trades are locked into the sequence. From there, the GPR unit passes over the marked area in overlapping rows to build a full picture of what's below the surface.
A properly planned sequence looks like this:
- Site walk — scheduled early, before trade sequencing is finalized
- Grid scanning — GPR unit passes over the slab in overlapping rows
- Live signal reading — technician interprets rebar, cable, and void patterns

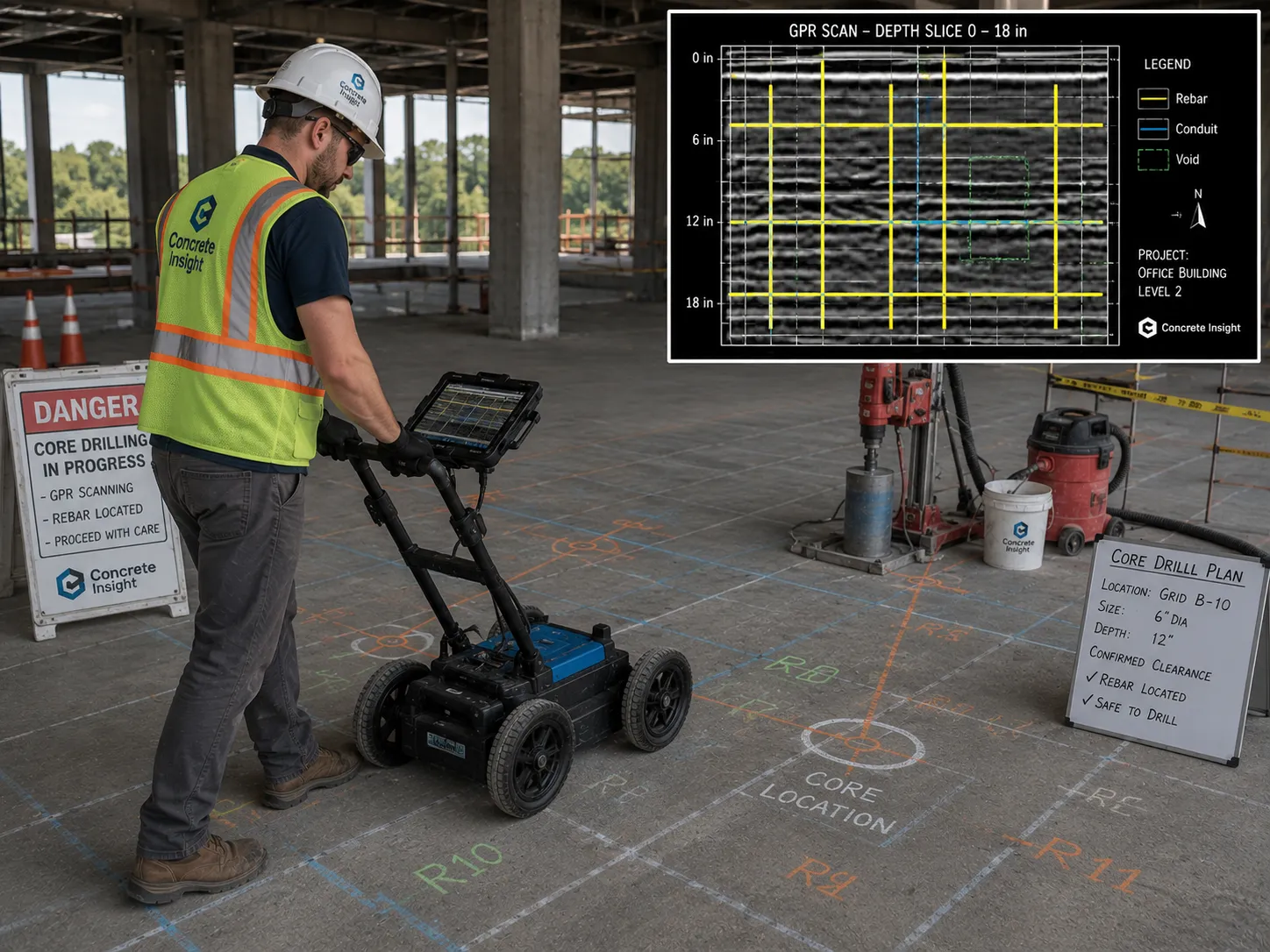

- On-site marking — safe-to-drill zones are chalked directly on the concrete
- Crew sign-off — the drilling team reviews markings before work begins
- Post-drill testing — pull test construction checks and Windsor probe testing confirm results
Once drilling and anchor installation wrap up, pull test construction checks confirm each anchor holds its rated load by applying controlled tension. A Windsor probe test, by contrast, checks the compressive strength of the concrete itself by firing a probe into the surface and reading penetration depth — useful when the concern is concrete quality rather than anchor performance specifically. Planning for both tests in the original schedule, not just the drilling itself, keeps the whole sequence predictable.
What Does GPR Concrete Scanning Cost, and How Should It Be Budgeted?
GPR concrete scanning cost depends on slab size, site access, and the number of zones being scanned. Smaller jobs with one or two drilling locations often run a flat inspection fee, while larger commercial floors are typically priced per square foot, with the rate dropping as the scanned area grows. A cluttered site takes longer to scan than an open, unobstructed slab, which can affect the final quote.
For coordinators, the smartest move is requesting GPR concrete scanning cost estimates alongside quotes for pull test construction and Windsor probe testing at the same time the core drill service is bid — not as separate line items requested later. Compared to the cost of a single damaged cable or a stalled trade sequence, the scanning and testing costs together are almost always the smaller number on the page.
What Mistakes Do Coordinators Make During Planning?
The most common mistake is treating scanning as something to add later "if needed" rather than including it in the original RFP for the core drill service. This almost always leads to rushed scheduling once drilling is already imminent.
Other frequent issues include underestimating the area that needs scanning, assuming a scan from an earlier project phase still applies after design changes, and failing to request pull test construction or Windsor probe testing quotes alongside the drilling bid. Coordinators also sometimes select a drilling vendor based purely on the lowest bid without confirming whether scanning and testing are included or billed separately — a gap that shows up as a surprise cost mid-project.
Tips for Planning GPR Scanning Into a Commercial Project
Include scanning as a required line item in every RFP for a core drill service, not an optional add-on. Request cost estimates for GPR scanning, pull test construction, and Windsor probe testing together, so the full picture is visible before bids are finalized. Schedule the site walk and scan early enough that results can shape final drill locations before other trades lock in their sequence.
Keep documentation standards consistent across every phase of the project, and file every scan report and test result centrally — they're useful for compliance, insurance, and any future renovation work on the same building.
Concrete Scanning and Testing Services Compared
| Service | What It Checks | Typical Cost Basis | Best Used For |
|---|---|---|---|
| GPR Scanning | Rebar, cables, voids | Flat fee or per sq ft | Locating hazards pre-drill |
| Pull Test Construction | Anchor holding strength | Per anchor tested | Verifying anchor performance |
| Windsor Probe Test | Concrete surface strength | Per test location | Checking concrete quality |
| No Scan | Nothing | No upfront cost | Not recommended for any job |
FAQ
Q1: What is GPR for concrete scanning? GPR for concrete scanning uses ground-penetrating radar to detect rebar, cables, conduits, and voids inside a slab before drilling begins.
Q2: Should scanning be included in the original core drill service bid? Yes. Including it in the original scope avoids unplanned costs and schedule gaps that come from adding it later.
Q3: How much does GPR concrete scanning cost? Cost depends on slab size, site access, and scanned area, with smaller jobs priced as a flat fee and larger jobs often priced per square foot.
Q4: What is pull test construction? It refers to testing that applies controlled tension to a drilled anchor to confirm it holds its rated load without pulling loose.
Q5: What does a Windsor probe test check? A Windsor probe test measures the compressive strength of hardened concrete by firing a probe into the surface and reading penetration depth.
Q6: Is GPR scanning safe on an active commercial job site? Yes. It uses low-power radar with no radiation, so no evacuation zone is needed and other trades can keep working nearby.
Conclusion
Scanning shouldn't be the line item that shows up as a surprise once drilling is already scheduled. GPR for concrete scanning belongs in the original scope of any core drill service, alongside pull test construction and Windsor probe testing, so cost and timeline are predictable from the start. Planning for all three at the RFP stage, rather than adding them mid-project, keeps commercial jobs on schedule and on budget. If you're drafting scope for an upcoming coring job, it's worth building these steps in from day one.
