Cooling systems are essential in various industrial, commercial, and residential applications. Among them, dry coolers play a crucial role in heat dissipation without the need for water consumption. As industries move towards sustainable cooling solutions, dry coolers have gained prominence due to their energy efficiency and reduced environmental impact. This article provides an in-depth understanding of how dry coolers function, their components, advantages, and applications.

What is a Dry Cooler?

A dry cooler is an air-cooled heat exchanger designed to remove heat from a process or HVAC system. Unlike traditional cooling towers that rely on water evaporation, dry coolers use ambient air to dissipate heat, making them more environmentally friendly and cost-effective. They are commonly used in industrial processes, data centers, and refrigeration applications.

Components of a Dry Cooler

To understand how a dry cooler functions, it is essential to explore its key components:

A. Heat Exchanger Coils

• The core of a dry cooler consists of heat exchanger coils, usually made of copper or aluminum, which facilitate heat transfer from the process fluid to the surrounding air.
• These cooling solutions’ coils contain fins to increase the surface area for efficient heat dissipation.

B. Fans

• High-performance axial or centrifugal fans pull or push ambient air through the coils, enhancing heat removal.
• These fans are designed for high airflow with minimal energy consumption.

C. Frame and Casing

• The structural frame supports the entire system and is often made of corrosion-resistant materials to withstand outdoor conditions.

D. Control System

• Advanced dry coolers are equipped with electronic controllers to adjust fan speed, optimize performance, and ensure efficient cooling.

How Does a Dry Cooler Work?

A dry cooler operates on a simple principle: heat exchange between a process fluid and ambient air. The working mechanism involves the following steps:

Step 1: Heat Absorption

• The hot fluid (water, glycol mixture, or refrigerant) from the process enters the dry cooler coils.
• As it flows through the coils, it transfers its heat to the coil walls.

Step 2: Airflow Mechanism

• Powerful fans draw ambient air across the coil’s surface.
• The air absorbs the heat from the coil, cooling the process fluid inside.

Step 3: Heat Dissipation

• The heated air is expelled into the atmosphere, removing the excess heat from the system.
• The cooled fluid exits the dry cooler and recirculates back to the process, maintaining the required operational temperature.

This cycle repeats continuously to ensure stable cooling.

Recommended Read - Everything You Need to Know About AC Heat Exchangers

Types of Dry Coolers

Dry coolers are categorized based on design and airflow direction:

A. Forced Draft Dry Cooler

• How it Works: Fans are positioned at the bottom, forcing air upwards through the coil.
• Advantages: Protects the coil from dust accumulation, leading to longer service life.
• Applications: Industrial machinery cooling, data centers.

B. Induced Draft Dry Cooler

• How it Works: Fans are located at the top, pulling air through the coils and expelling it upwards.
• Advantages: Provides uniform air distribution, improving efficiency.
• Applications: Power plants, process cooling.

C. V-Shape Dry Cooler

• How it Works: Coils are arranged in a V-shape, increasing airflow efficiency.
• Advantages: Compact design, ideal for space-constrained environments.
• Applications: HVAC, industrial refrigeration.

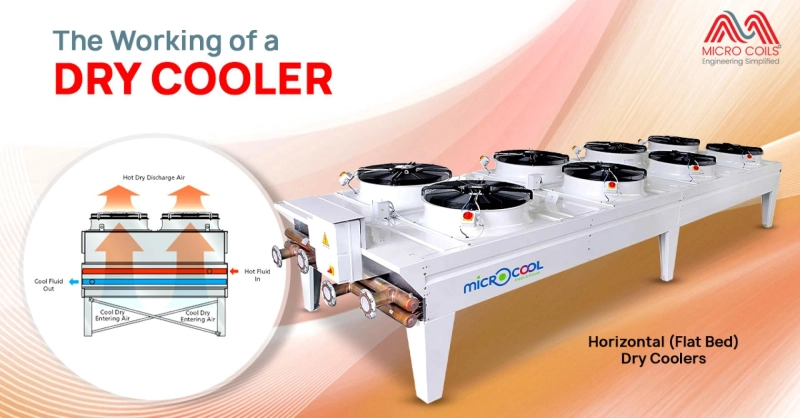

D. Flatbed Dry Cooler

• How it Works: Horizontally aligned coils with fans mounted above or below.
• Advantages: Simple installation and maintenance.
• Applications: Large-scale cooling systems, refineries.

Advantages of Dry Coolers

Dry coolers offer several benefits over traditional cooling towers and liquid cooling systems:

A. Water Conservation

• Unlike cooling towers that rely on water evaporation, dry coolers use air, reducing water consumption significantly.
• Ideal for regions facing water scarcity.

B. Energy Efficiency

• Equipped with variable speed fans, dry coolers optimize power consumption based on cooling demand.
• Lower operational costs compared to water-cooled systems.

C. Environmental Sustainability

• Eliminates the risk of waterborne diseases like Legionella.
• No harmful chemical treatments required for water management.

D. Minimal Maintenance

• No need for water refilling, treatment, or blowdown cycles.
• Long-lasting components with low maintenance requirements.

E. Versatility

• Can be used in various industries, from food processing to renewable energy.
• Effective in hot and cold climates.

Recommended Read - Why Cooling Solutions Are Necessary for Data Centers and Telecom Units?

Applications of Dry Coolers

Dry coolers find applications in multiple industries due to their efficiency and reliability:

A. Data Centers

• Used for server cooling, ensuring optimal temperature management without excessive water usage.

B. Industrial Process Cooling

• Essential in manufacturing plants to dissipate heat from heavy machinery.

C. HVAC Systems

• Supports AC cooling coil systems in commercial and residential buildings.

D. Renewable Energy

• Applied in solar and wind farms to cool power generation equipment.

E. Refrigeration Systems

• Used in cold storage and food processing industries to maintain required temperatures.

Factors to Consider When Choosing a Dry Cooler

Selecting the right dry cooler depends on several factors:

A. Heat Load Capacity

• Measured in kW or BTU/hr, it determines how much heat needs to be dissipated.

B. Ambient Temperature

• Consider the highest expected temperature at the installation site.
• Ensure the cooler can operate efficiently in varying conditions.

C. Available Space

• Choose between V-shape, flatbed, or induced draft designs based on space constraints.

D. Fan Efficiency and Noise Levels

• Low-noise fans are essential for residential and urban installations.

E. Maintenance and Durability

• Corrosion-resistant materials ensure longer service life.
• Easily accessible components simplify maintenance.

Common Challenges and Solutions in Dry Cooler Operations

Despite their advantages, dry coolers may face operational challenges:

A. High Ambient Temperatures

• Issue: Reduced cooling efficiency in hot climates.
• Solution: Increase coil surface area or use adiabatic pre-cooling systems.

B. Fan Failures

• Issue: Overheating due to fan malfunctions.
• Solution: Install backup fans and schedule regular maintenance.

C. Airflow Restrictions

• Issue: Dust accumulation on coils reduces heat transfer.
• Solution: Perform routine cleaning and install air filters.

Future Trends in Dry Cooling Technology

With growing concerns over energy efficiency and sustainability, dry coolers continue to evolve:

A. Smart Cooling Systems

• Integration with IoT for real-time monitoring and predictive maintenance.

B. Hybrid Cooling Solutions

• Combination of dry coolers with evaporative cooling for improved performance.

C. Advanced Materials

• Use of nanocoatings to enhance heat transfer and prevent corrosion.

Conclusion

Dry coolers and adiabatic cooling components are an essential cooling solution for various industries due to their water-saving, energy-efficient, and low-maintenance nature. Their ability to operate in diverse environments while ensuring reliable heat dissipation makes them an attractive alternative to traditional cooling towers. As technology advances, dry coolers will continue to evolve, further improving efficiency and sustainability in cooling applications worldwide.
