WHAT IS 3D PRINTING? - TECHNOLOGY DEFINITION & ITS TYPES

Introduction to 3D Printing

Introduction to 3D Printing: Understanding the Basics

If you've heard about 3D printing but don't quite understand what it is, you're not alone. With rapidly advancing technology, new terms and concepts are constantly emerging, making it difficult to keep up. But fear not, this blog will break down the basics of 3D printing and give you a better understanding of this innovative technology.

First things first, let's define what 3D printing actually is. Also known as additive manufacturing, 3D printing is a process of creating physical objects from digital designs. Unlike traditional manufacturing methods which involve subtractive processes like cutting and drilling to create a product, 3D printing involves adding layers upon layers of material until the desired object is formed.

So how does it work? Well, it all starts with a digital design created on a computer. This design is then sent to a 3D printer, which reads the design and begins the printing process. The printer uses various types of materials such as plastic, metal, or even food to create the object layer by layer. This can be compared to building a structure with LEGO bricks – each layer adds on top of the previous one until the final product is complete.

Now that we have a better understanding of what 3D printing is, let's talk about its types. There are three main types of 3D printers – Fused Deposition Modeling (FDM), Stereolithography (SLA), and Selective Laser Sintering (SLS). FDM printers use filaments of plastic or other materials that are melted and extruded through a small nozzle onto the build plate. SLA printers use liquid resin that is hardened by a laser beam layer by

Historical Background of 3D Printing

1980s: The Emergence of Additive Manufacturing

In the early 1980s, the foundation for 3D printing was laid with the development of stereolithography (SLA) by Charles Hull, which utilized a UV light to solidify photopolymer resins, layer by layer, to create 3D objects.

1990s: Commercialization and Expansion

In the 1990s, 3D printing technologies began to gain commercial traction, with the introduction of selective laser sintering (SLS) by Carl Deckard and Joseph Beaman, which utilized a high-powered laser to sinter powdered materials into solid objects.

2000s: Diversification and Wider Adoption

The 2000s witnessed the diversification of 3D printing technologies, with the introduction of fused deposition modeling (FDM) by Scott Crump, which extruded thermoplastic materials to create layers, leading to the development of accessible and affordable 3D printers for broader commercial and consumer use.

2010s: Mainstream Acceptance and Industry Applications

The 2010s saw a surge in the adoption of 3D printing across various industries, including aerospace, automotive, healthcare, and education, with the technology being used for rapid prototyping, customized manufacturing, and production of complex components and parts.

Recent Developments:

Recent years have seen significant advancements in 3D printing materials, processes, and applications, including the use of metal, ceramics, and composite materials, as well as the emergence of new 3D printing technologies such as digital light processing (DLP) and continuous liquid interface production (CLIP).

Throughout its history, 3D printing has evolved from a niche manufacturing process to a widely adopted technology with diverse applications across various industries, playing a crucial role in product development, customization, and innovation. The continuous advancements in 3D printing technologies and materials are expected to further revolutionize manufacturing and design processes, opening up new possibilities for additive manufacturing in the future.

How Does 3D Printing Work?

Designing the 3D Model:

The process begins with the creation of a digital 3D model using computer-aided design (CAD) software or a 3D scanner. The model defines the shape, dimensions, and specifications of the object to be printed.

Slicing the Model:

The 3D model is then sliced into multiple horizontal layers using slicing software. Each layer is converted into a set of instructions that guide the 3D printer in creating the physical object layer by layer.

Preparing the Printer:

The 3D printer is prepared by ensuring that the appropriate printing material, such as plastic filament, resin, or metal powder, is loaded into the printer's material cartridge or reservoir. The printer is also calibrated to ensure accurate printing.

Printing the Object:

The printing process begins with the 3D printer depositing the printing material layer by layer, following the instructions generated by the slicing software. The printer may use various techniques, such as extrusion, solidification, or sintering, depending on the specific 3D printing technology being used.

Layer-by-Layer Construction:

Each layer of the object is constructed sequentially, with the printer adding the material according to the predefined pattern and design specifications. The layers are bonded or fused together to create a solid, three-dimensional object.

Post-Processing (Optional):

Depending on the specific requirements and desired finish of the object, post-processing may be required. This can include processes such as curing, polishing, or painting to improve the surface quality, strength, or appearance of the printed object.

Finalizing the Print:

Once the printing process is completed, the finished 3D print is removed from the print bed or platform. The object may undergo further inspection, cleaning, or finishing touches before it is ready for use or additional processing.

Technology behind 3d printing

Fused Deposition Modeling (FDM):

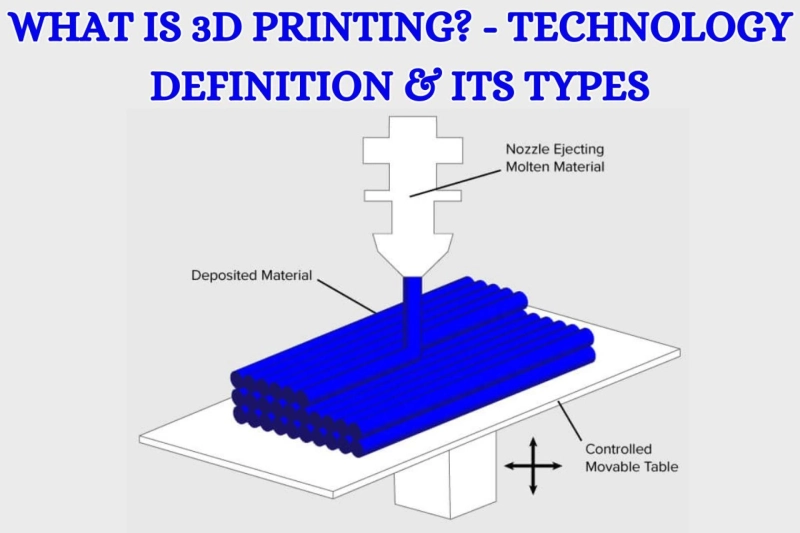

FDM technology works by melting and extruding thermoplastic materials, such as ABS or PLA, through a heated nozzle. The melted material is deposited layer by layer onto a build platform, where it solidifies to form the desired 3D object.

Stereolithography (SLA):

SLA utilizes a UV laser to solidify liquid photopolymer resins, layer by layer, within a vat. The laser selectively cures the resin to create each cross-section of the object, with each layer bonding to the previous one to form the final 3D printed object.

Selective Laser Sintering (SLS):

SLS employs a high-powered laser to selectively fuse powdered materials, such as plastic, metal, or ceramic, into a solid structure. The laser traces the cross-section of the object onto a thin layer of the powdered material, which fuses together to create the desired 3D object.

Digital Light Processing (DLP):

DLP technology is similar to SLA but uses a digital light projector to solidify liquid resin, layer by layer, to create the object. The projector displays a single image of each layer onto the entire build platform simultaneously, resulting in faster print times compared to traditional SLA technology.

Binder Jetting:

Binder jetting involves the deposition of a binding agent onto layers of powdered material, such as metal, ceramic, or sand, to solidify and create the object. This process is often used in the production of metal parts and intricate ceramic structures.

Material Jetting:

Material jetting works by jetting or spraying liquid photopolymer materials onto the build platform, where they are cured or solidified using UV light. Multiple materials and colors can be used simultaneously, allowing for the creation of multi-material and multi-color 3D prints.

Directed Energy Deposition (DED):

DED technology involves the use of a focused energy source, such as a laser or electron beam, to melt and fuse materials as they are deposited onto a substrate. DED is often used for the repair or construction of metal components and large-scale 3D printing applications.

Types of 3d printing

Fused Deposition Modeling (FDM):

FDM 3D printers use thermoplastic filaments that are heated and extruded through a nozzle, layer by layer, to create the object. This technology is widely used for rapid prototyping and manufacturing functional parts.

Stereolithography (SLA):

SLA printers use a vat of liquid photopolymer resin and a UV laser to solidify the resin layer by layer, creating highly detailed and precise objects. SLA is often used for creating intricate prototypes, models, and parts with smooth surface finishes.

Selective Laser Sintering (SLS):

SLS printers use a high-powered laser to sinter powdered materials, such as plastic, metal, or ceramic, into solid structures, making it ideal for producing functional prototypes, end-use parts, and complex geometries without the need for support structures.

Advantages and Disadvantages of 3d printing

Advantages:

Design Flexibility: 3D printing enables the production of complex and customized designs that may be difficult or impossible to create using traditional manufacturing methods.

Rapid Prototyping: It allows for the quick and cost-effective production of prototypes, facilitating rapid iteration and design validation during the product development process.

On-Demand Production: 3D printing facilitates on-demand manufacturing, eliminating the need for expensive tooling and enabling the production of small batches or custom parts without incurring additional costs.

Cost-Efficiency for Complex Designs: It can be cost-efficient for the production of intricate and detailed designs, as the complexity of the design does not significantly impact the manufacturing cost.

Reduced Waste: 3D printing often generates less waste compared to traditional manufacturing processes, as it typically uses only the necessary amount of material required to create the object.

Disadvantages:

Limited Material Selection: Some 3D printing technologies have limitations on the types of materials that can be used, restricting the range of applications and properties of the printed objects.

Post-Processing Requirements: 3D printed objects may require additional post-processing, such as curing, polishing, or painting, to achieve the desired surface finish and mechanical properties, adding to the overall production time and cost.

Print Speed and Size Constraints: Printing large objects can be time-consuming, and the size of the print bed can limit the scale of objects that can be produced, leading to challenges in manufacturing larger components.

Surface Finish Limitations: 3D printed objects may not always achieve the same level of surface finish and quality as those produced using traditional manufacturing processes, particularly for certain materials and complex geometries.

Material Properties: The mechanical properties and material characteristics of 3D printed objects may not always match those of traditionally manufactured parts, which can impact the functionality and performance of the final product.
