In the ever-evolving world of industrial manufacturing, companies are constantly seeking solutions that can increase productivity, reduce costs, and deliver durable components. While traditional methods like injection molding and single-sheet thermoforming remain widely adopted, there’s an innovative technology that is rapidly transforming the landscape for large-scale and structural plastic part production: the Twin Sheet Thermoforming Machine.

As one of the leading manufacturers and exporters of plastic forming equipment, Shanghai Zhanshi Mechanical Equipment Co., Ltd. proudly supports innovation with our range of modern and advanced Twin Sheet Thermoforming Machines. These machines are not just powerful—they're incredibly versatile, cost-effective, and ideal for creating hollow, high-strength, and lightweight plastic products used in various industries, including automotive, logistics, medical, construction, and agriculture.

What Is a Twin Sheet Thermoforming Machine?

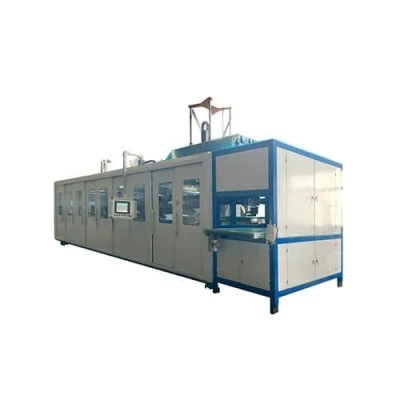

A Twin Sheet Thermoforming Machine is a specialized system that forms two separate plastic sheets simultaneously, then bonds them together during the forming process to create a single, hollow, and often structurally rigid part.

Here's how it typically works:

• Sheet Loading: Two sheets of thermoplastic material are fed into the machine.
• Heating: Both sheets are heated independently until they reach the optimal forming temperature.
• Positioning: Each sheet is aligned over its corresponding mold (top and bottom halves).
• Forming and Bonding: The sheets are simultaneously formed using vacuum or pressure against their molds. As the molds close, the heated sheets bond together at the contact points, creating a sealed, double-walled part.
• Cooling and Trimming: Once formed, the part is cooled to maintain structural integrity and trimmed into its final shape.

Unlike single-sheet forming, which creates open or lightweight containers, Twin Sheet Thermoforming Machines form closed and complex geometries ideal for industrial and structural applications.

Core Advantages of a Twin Sheet Thermoforming Machine

Let’s explore the technology’s unique benefits and understand why manufacturers are increasingly integrating it into their production lines.

1. Superior Durability & Rigidity

Perhaps the most significant advantage of the twin sheet process is the structural integrity of the finished product. The resulting double-walled construction offers:

• Greater resistance to impact and cracking
• Enhanced load-bearing capacity
• Long-term durability in harsh environments

This makes twin sheet thermoformed parts ideal replacements for metal or injection-molded components in heavy-duty applications.

2. Lightweight Alternative to Traditional Materials

Despite their rigidity, twin sheet parts are lighter than metals and often lighter than injection-molded plastics, especially when air or foam is trapped between the sheets. This weight reduction:

• Lowers shipping costs
• Enhances fuel efficiency in automotive applications
• Reduces physical strain during manual handling

In industries prioritizing ergonomic design and sustainability, this becomes particularly valuable.

3. Cost-Effective Production for Large Parts

Producing large or hollow plastic products using injection molding can be immensely expensive due to high tooling costs and machine clamping force requirements. However, the twin sheet thermoforming machine makes it affordable thanks to:

• Lower mold costs (typically aluminum or epoxy-based)
• Reduced machine size requirement
• Faster lead times from prototype to production
• Scalable production (from short to long runs)

This makes thermoforming the perfect solution for pilot runs, custom shapes, or frequent design changes.

4. Flexibility in Design and Custom Features

With twin sheet forming, it’s easier to incorporate custom inserts such as:

• Threaded mounts
• Reinforcements
• Foam filling
• Embedded electronics
• Handles, hinges, and multiple textures

The design flexibility enables manufacturers to meet varying customer demands—perfect for B2B products or OEM partnerships.

5. Sustainable and Eco-Friendly Production

Increasing global regulation on single-use plastics and rising demand for eco-friendly alternatives require manufacturers to rethink their production strategies. Twin sheet thermoforming supports greener practices through:

• Use of recyclable thermoplastics (HDPE, PP, ABS, RPET)
• Reduced material waste
• Energy-efficient forming processes
• Lightweight products for lower emissions

At Shanghai Zhanshi Mechanical Equipment Co., Ltd., we also offer machines compatible with biodegradable and post-consumer recycled materials, improving your sustainability profile.

Industries That Benefit Most from Twin Sheet Thermoforming Machines

Due to the wide range of products and materials involved, twin sheet thermoforming has applications across diverse sectors:

Each of these industries benefits from the strength, efficiency, and innovation that twin sheet forming delivers at scale.

Efficiency and Cost Reduction in Real Terms

Let’s take a deeper look at how a twin sheet thermoforming machine boosts productivity and saves costs:

-Lower Tooling Costs

Injection molds can cost tens of thousands of dollars. Twin sheet forming uses cheaper aluminum or composite molds, which are quicker to produce and cheaper to modify.

-Faster Prototyping

Tooling and production cycles are faster, allowing for rapid prototyping and development—critical in industries with constantly changing needs.

-In-House Production Efficiency

Instead of sourcing complex or hollow parts externally, businesses can bring operations in-house, increasing control while decreasing lead time and overhead.

-Energy Savings

Compared to injection molding or blow molding, thermoforming typically requires less pressure (and thereby less energy) to shape parts.

Also Read: Why You Should Choose Twin Sheet Thermoforming Machine?

Why Choose Shanghai Zhanshi for Your Twin Sheet Thermoforming Needs?

As a trusted Chinese manufacturer exporting globally, Shanghai Zhanshi Mechanical Equipment Co., Ltd. brings a blend of technical expertise, customization, and after-sales support to every project. Here’s what sets us apart:

✅ Full customization based on product specs
✅ CE-certified equipment with smart automation
✅ Tech support and training for overseas clients
✅ Durable machine construction for industrial operations
✅ Integration capability with downstream equipment
✅ Continuous innovation with automation features (servo-driven controls, touch screen HMIs, etc.)

Whether you're scaling up for mass production or developing a unique industrial product, our twin sheet thermoforming machine delivers performance you can count on.

Machine Features You’ll Love

• Dual independent heating zones for precise sheet control
• Vacuum + pressure-assisted forming technology
• Automatic sheet feeders and ejectors
• Cooling systems for high-speed cycling
• PLC-controlled interfaces with user-friendly touch screens
• Energy-efficient design with low maintenance requirements

Take Industrial Manufacturing to the Next Level

As industries demand smarter, more sustainable, and structurally sound products, twin sheet thermoforming is becoming the go-to solution for innovative manufacturers. Its combination of cost-effectiveness, structural integrity, design flexibility, and material efficiency positions it as a powerful alternative to traditional forming technologies.

Frequently Asked Questions (FAQ)

Q1: What materials can be used in a twin sheet thermoforming machine?

A:
Common compatible materials include HDPE, ABS, PP, HIPS, Acrylic, and RPET. We also support custom testing for biodegradable and specialty composites.

Q2: How strong are twin sheet thermoformed parts?

A:
Very strong. Twin sheet parts are comparable in strength to blow-molded parts and can even rival some metal counterparts, particularly in low-pressure environments.

Q3: Can twin sheet machines make products with air or foam cores?

A:
Yes. You can create products with air gaps or injected foam layers, enhancing thermal insulation and impact resistance without adding weight.

Q4: Is twin sheet thermoforming suitable for low-volume runs?

A:
Yes. Unlike injection molding, which has high upfront costs, the twin sheet process is cost-effective even for small batches, making it perfect for custom or pilot projects.

Q5: What machine sizes does Shanghai Zhanshi offer?

A:
We offer machines with customizable forming areas, from small-batch semi-automated equipment to large-format, high-speed automated lines suitable for industrial production.

Q6: Do you provide international training and support?

A:
Absolutely. We offer remote and on-site training, detailed guides, multilingual manuals, online diagnostics, and global support services.
