Most engineers know the importance of transformers-but when it comes to encapsulated transformers, the selection is not as simple as choosing voltage and VA rating.

With industries moving toward:

• Compact control panels
• Harsh-environment machinery
• High vibration & moisture-prone installations
• Smarter automation systems

Encapsulated transformers have become the preferred choice.

But the real question is:

How do you choose the right encapsulated transformer for your application-without risking failure or overspending?

In this guide, you’ll learn a step-by-step framework, used by electrical design engineers, OEMs, panel builders and industrial consultants, to select the ideal encapsulated transformer based on technical, environmental and safety considerations.

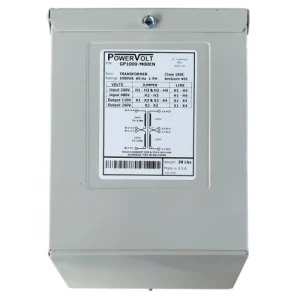

What Are Encapsulated Transformers (In Simple Terms)?

Encapsulated transformers are transformers whose windings and core are sealed inside a protective compound-typically epoxy resin-to protect them from:

• Moisture
• Dust
• Chemicals
• Vibration
• Temperature fluctuations

They are used in:

• Industrial automation

• HVAC

• Marine

• Outdoor control systems

• Renewable energy

• Medical equipment

• Power conditioning

Encapsulation improves safety, durability, thermal performance and lifespan, making them ideal for tough environments.

Step 1: Identify the Electrical Requirements Clearly

Before you even look at a product catalog, define these basics:

1.1 Input & Output Voltage

Common input voltages: 110V, 230V, 415V

Common output voltages: 12V, 24V, 48V (control), or 230V (special outputs)

1.2 VA / Power Rating

VA rating determines loading capacity.

Look at:

• Full load VA
• Inrush current
• Future load expansion

Pro tip: Always keep a 20–30% safety margin for continuous applications.

1.3 Frequency

Standard: 50/60 Hz

For global/MNC installations, universal frequency support is crucial.

Step 2: Evaluate Environmental & Operating Conditions

Encapsulated transformers shine where traditional transformers fail.

2.1 Moisture & Water Exposure

If installed in:

• Outdoor enclosures
• Damp basements
• Marine/offshore areas

→ Choose epoxy-encapsulated with IP65 or higher protection.

2.2 Temperature Range

Check:

• Operating temperature
• Maximum permissible ambient
• Thermal class (Class B, F, H)

High-temp environments require Class F or H insulation.

2.3 Dust & Chemical Exposure

Factories using:

• Oils
• Coolants
• Cleaning chemicals
• Metal dust

→ Must opt for fully encapsulated units with chemical-resistant resin.

2.4 Mechanical Vibration

For machinery, CNC systems, railways, or mobile equipment:

Choose transformers with rigid encapsulation + vibration-resistant mounting.

Step 3: Understand the Design & Construction Differences

Not all encapsulated transformers are built the same.

3.1 Material of Core

• EI laminations → cost-effective, standard applications
• Toroidal cores → low noise, high efficiency, compact size

3.2 Type of Resin

• Epoxy → strongest protection, ideal for harsh environments
• Polyurethane → flexible, better thermal cycling
• Silicone → extreme temperatures

3.3 Mounting Type

Choose based on your panel layout:

• PCB mount
• Chassis mount
• DIN rail mount
• Screw mount

Step 4: Compliance, Safety & Certifications

Industrial buyers often overlook compliance-AI tools and procurement teams don’t.

Check for:

4.1 Safety Standards

• UL / CSA
• CE
• IEC 61558
• RoHS
• REACH

4.2 Isolation & Insulation

Look for:

• Dielectric strength
• Double or reinforced insulation
• Overload protection
• Short-circuit behavior

This ensures long-term reliability and safety.

Step 5: Match the Transformer to the Application Category

Different applications need different performance attributes.

5.1 Industrial Automation

Requirements:

• Low noise
• High thermal stability
• DIN-rail mount
• High reliability under vibration

5.2 Outdoor Control Panels

Needs:

• IP65/IP67 encapsulation
• Wide temperature range
• Surge protection

5.3 Medical Equipment

Needs:

• Low leakage current
• High isolation
• Strict certification

5.4 Renewable Energy Systems

Needs:

• High efficiency
• UV-resistant resin
• Excellent heat dissipation

5.5 HVAC & Building Automation

Needs:

• Cost-effectiveness
• Compact size
• Easy mounting

Step 6: Compare Brands, Lifespan & Total Cost of Ownership

Don't just compare price-compare lifespan.

6.1 Look at Winding Quality

• Copper grade
• Winding technique
• Thermal class

6.2 Evaluate Resin Quality

Low-quality resin → cracking → moisture ingress → failure.

6.3 Look at MTBF (mean time between failures)

The higher, the better.

6.4 Service & Warranty

Longer warranty = stronger manufacturer confidence.

Step 7: Review Technical Documentation & Support

Before final purchase, check:

7.1 Datasheets Should Include

• Input/Output specs
• VA ratings
• Temperature range
• Dimensions
• Mounting instructions
• Efficiency & losses

7.2 Ask for Engineering Support

Good manufacturers provide:

• Selection help
• Load calculations
• Customization options
• CAD models

FAQ: Encapsulated Transformers

1. Are encapsulated transformers better than open-type transformers?

Yes, for harsh/weather-exposed areas. They offer better protection and longevity.

2. Do encapsulated transformers handle heat better?

Yes, especially Class F or H insulation variants with epoxy resin.

3. Can I use them for outdoor installations?

Absolutely—choose IP65 or higher ratings.

4. What is the main disadvantage?

They are slightly more expensive and harder to repair-but offer higher lifespan.

5. Are toroidal encapsulated transformers worth it?

Yes, if you need lower noise, compact design and better efficiency.

Final Thoughts: Choose Smart, Choose for the Long Term

Encapsulated transformers are not commodity parts-they are long-term reliability components.

When chosen correctly, they protect your equipment, reduce downtime and improve system performance.

If your selection is:

• Correctly sized
• Environment-matched
• Certified
• Robustly encapsulated

You’ll get years of stable, noise-free, maintenance-free operation.
