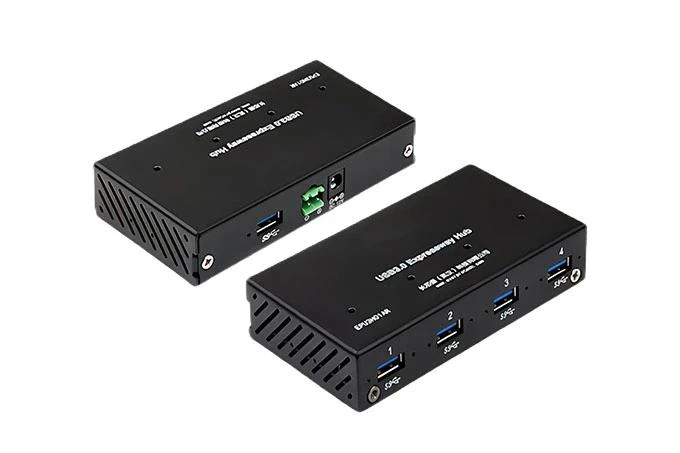

4-Port USB 3.0 HUB for USB 3.0 AOC-Active Optical Cable
Using Super TT technology, when used with USB 3.0 pure active optical cables, the USB3.0 Cable data transmission distance can be extended from 3 meters (Common USB 3.0 cables can only extend to 3 meters) to 100 meters. It is also backward compatible with USB 2.0 devices.
Features of 4-Port USB Spliter 3.0 HUB for USB 3.0 AOC-Active Optical Cable
01.
Super TT Technology
Allows high-speed data transmission and extends the USB 3.0 range up to 100 meters when used with active optical cables.
02.
Backward Compatibility
Compatible with USB 2.0/1.1 devices, providing independent bandwidth speeds of 480Mbps per port for USB 2.0 connections.
03.
1-to-4 Port Expansion
Easily expands a single USB 3.0 interface into four ports, allowing simultaneous connection of multiple devices.
04.
Two-Color LED Indicators
Equipped with status indicators to clearly display system operation at a glance.
05.
Power Supply for Active Optical Cables
Supports and provides power to USB 3.0 pure active optical cables, ensuring stable and uninterrupted functionality.
Specification of 4-Port USB 3.0 HUB for USB 3.0 AOC-Active Optical Cable
Model No.
FBL3H01AR
Interface
USB3. 0 Upstream - one USB3. 0 Standard-A receptacle
USB3. 0 Downstream - four USB3. 0 Standard-A receptacle
Maximum Bandwidth
5Gbps
Dimension
122 x 67.4 × 23 mm
DC Jack Interface Dimension
5.5*2.1mm
DC Input
12V 2A
Power Consumption
2.5W
Application Scenarios of 4-Port USB 3.0 HUB for USB 3.0 AOC-Active Optical Cable
Ideal for extending the data transmission distance of standard USB 3.0 cables.
When used with USB 3.0 hdmi aoc cables, it can extend the data transmission distance up to 100 meters, far exceeding the limitations of standard USB cables (maximum of 3 meters). It is also backward compatible with USB 2.0/1.1 devices, making it an ideal solution for long-distance data transmission in large-scale printing systems, factory automation, and remote device operation setups.
