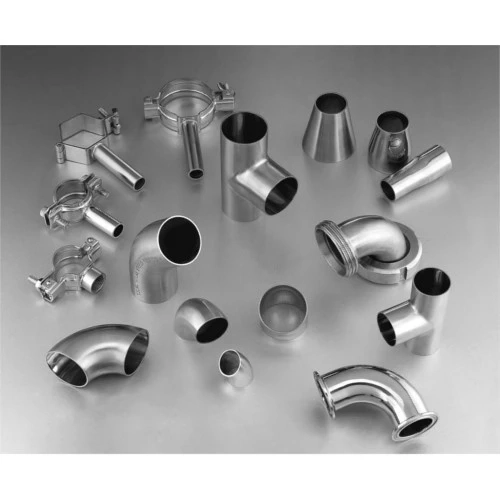

Power generation, gas processing, pharmaceutical equipment, offshore oil drilling companies, petrochemicals, seawater equipment, condensers, chemical equipment, specialty chemicals, heat exchangers, and the pulp and paper industries are just a few of the application industries that use SS 316H pipe fittings extensively. UNS S31609 is the equivalent grade of stainless steel 316H pipe fittings.
Specifications :ASTM A403 / ASME SA403Dimensions :ASME/ANSI B16.9, ASME B16.28, MSS-SP-43Size :1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)Type :Seamless / Welded / FabricatedBending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or CustomThickness :Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS, Custom ThicknessManufacturing Specification :ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2Stainless Steel 316H Chemical Composition
GradeCMnSiPSCrMoNiFeSS 316H0.10 max2.0 max0.75 max0.045 max0.030 max16.00 – 18.002.00 – 3.0010.00 – 14.0068.89 minMechanical Properties Of SS 316H Pipe Fittings
DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation8.0 g/cm31400 °C (2550 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %
