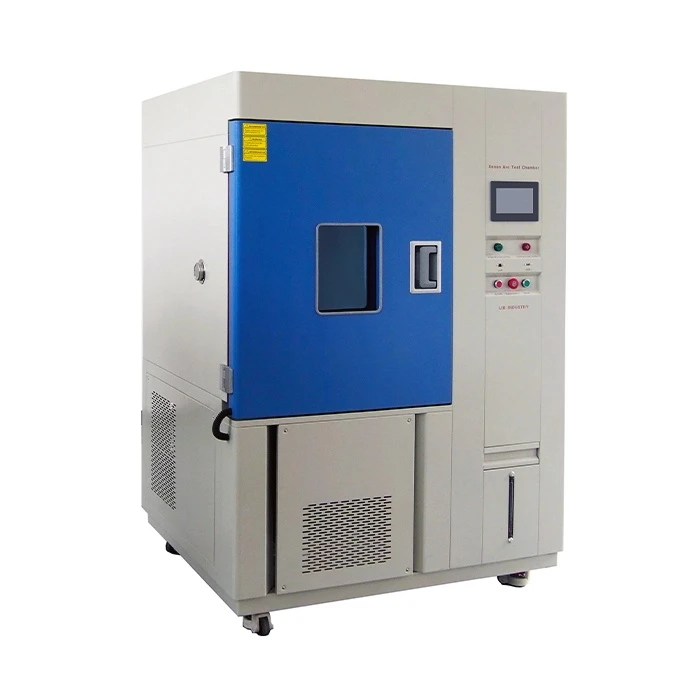

ASTM G155 Test Chamber

The astm g155 uv test chamber is a xenon test chamber for accelerated aging testing of non-metallic materials. Xenon arc lamp as a light source, simulates natural sunlight, with irradiation range of 35~150W/m². And through the filter system adjustment, xenon can simulate the solar spectrum in different regions. The temperature can be adjusted from ambient to 100℃, the humidity range is 50%~98%RH, and it is equipped with a spray system to simulate rain.

Model: XL-S-750, XL-S-500

Standard: IEC 60068-2-5, IEC 60068-2-27,ASTM G26,ISO 105, ISO 4892-2, ASTM G155, ASTM G151, ASTM G155,ISO 105-B02 (EN) (DIN), ISO 105-B04 (EN) (DIN).

ASTM G155 Test Chamber Features and Benefits

1. ASTM g155 test chamber adopts xenon arc lamp as light source, producing high intensity and stable light, posing good simulation of natural sunlight. The radiation energy can be set and automatically controlled directly through the controller (340nm, 420nm, 300nm~400nm).

2. LIB Industry ASTM G155 test chamber can be used to test a variety of materials, including plastics, rubber materials, coatings and coatings, textiles and other fields.

3. Precise temperature and humidity control in ASTM G155 test chamber : Equipped with heating and cooling systems ranging from ambient to 100 ° C, the temperature of the workroom and blackboard can be directly set and automatically controlled.Humidity range is 50% to 98%RH.

4. ASTM G155 test chamber is equipped with a spray system to simulate the effects of dew or rain.

ASTM G155 Test Chamber Specifications

Model

XL-S-750

XL-S-500

Internal Dimension (mm)

950*950*850 mm

500*600*700 mm

Overall Dimension (mm)

1400*1400*1950 mm

1000*1140*1920 mm

Specimen Holder Size(mm)

95*200

/

Specimen Capacity

42pcs

/

Chamber Type

Rotating Holder

Flat shelf

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp

Irradiance Range

35~150 W/㎡

Bandwidth Measurement

300nm~400nm (340nm or 420nm)

Chamber Temperature Range

Ambient ～ 100 ℃ ±2℃

Black Panel Temperature

BPT 35 ～ 85 ℃ ±2℃

Humidity Range

50% ~ 98% RH

Humidity Deviation

± 5% RH

Water Spray Cycle

1~9999H59M (Adjustable)

Water supply system

Automatic water supply, Water purification system

Radiometer

UV Radiometer, Tolerance: ±5%

Cooling System

Mechanical compression refrigeration system
