Difference Between Cyclic Pressure Control System and Automated Pressure Regulator?

Cyclic Pressure Control System and Automated Pressure Regulator machine are two of the most sought-after pressure handling machines in the USA. They are often mistaken for one of the others, so it\'s important to understand the difference between the two so you can choose the one that is the best for your company.

So, let\'s get into it!

Cyclic Pressure Control System

This machine lets you automatically generate minimum and maximum cyclic pressure.

The pipeline limits are tested through this system, determining reliability, leaks, pressure, joint fittings, and maximum capacity. The results of the system allow you to determine pipeline safety and maintenance. A pipe cannot be put into place if there is no determined cyclic pressure because nobody would know if the pipe meets the requirements or not.

Testing Method

The industry or consumer requirements determine the test being conducted. The tank is loaded with an incompressible substance, usually dyed to check leaks or damages in the design. The substances used are usually water or petrol.

During the measurement, the vessel\'s pressure volume is considerably more significant in comparison to the normal operating pressure. This allows the cyclic pressure control system to verify if any unexpected pressure will prove to be hazardous or not.

Each test\'s details are registered on a database system, which includes:

• the serial number
• the manufacturer
• the manufacturer\'s date

The manufacturer for protection provides added information such as REE (Rejection Elastic Expansion) and maximal expansion.

All of the saved information helps keep track of inspection dates, whether one needs to be conducted or when it should be scheduled for next.

Benefits

The reasons why this is one of the leading pressure handling machines in the USA are:

• More energy-efficient
• Results are condition-relevant
• Easy quality control
• Determine sliding and non-recoverable deformations
• Durable and efficient matter

Automated Pressure Regulator

[caption class="snax-figure" align="aligncenter" width="1140"][/caption]

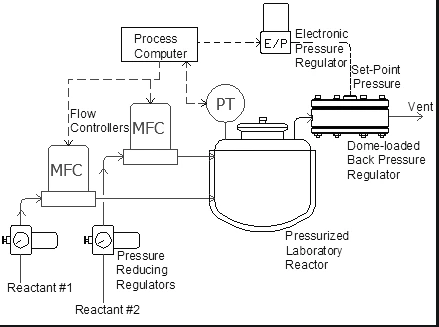

This machine lets you control gas pressures in alignment with the automated valves and pressure control systems.

Pressure regulators are used domestically and industrially in various forms to regulate different gasses in the appliances, such as propane in gas grills and oxygen in medical equipment. You will also find it being used in automotive engines and aerospace applications to supply compressed air.

You will find the pressure being controlled in all applications with the Automated Pressure Regulator from a high source to lower source pressure. They reduce the input pressure and regulate it, ensuring the external pressure caused due to any reason does not result in something hazardous.

Functions

There are three main functions of the regulator other than just reducing input pressure, which includes:

Pressure Relief Valves and Backpressure Regulators

The pressure relief valve diverts some or all of the liquid or gas from the pump into the tank to limit the pressure to a pre-decided maximum.

The backpressure regulator maintains the desired input pressure. It is done by varying the gas or liquid flow in response to the input pressure changing.

Pressure Switching Valves

The pneumatic logic system uses this where the valves switch either 2/2 way or 3/2 way.

Vacuum Regulators

The vacuum is controlled by maintaining a constant vacuum ay regulator inlet. Along with that, a higher vacuum is also connected with the outlet.

Applications of a Pressure Regulator

You will find the pressure regulator is used in several capacities; some of them include:

Household or Domestic

Gas grills and ovens, pressure cookers and vessels, heating furnaces

Compressed Air

Industrial and commercial workshops for cleaning, powering air stimulated tools, inflating tires

Gas-powered vehicles

Pressurized gas is delivered to the engine.

The Differences

The major differences have been mentioned above in the blog. The main differentiating factor between the two leading pressure handling machines in the USA is that the Cyclic Pressure Control System uses liquid or gas at a cyclic rate to check and assess component sensitivity to ensure no pipe damage. The Automated Pressure Regulator maintains a constant pressure to regulate pressure fluctuations in different appliances.
