OVERVIEW:

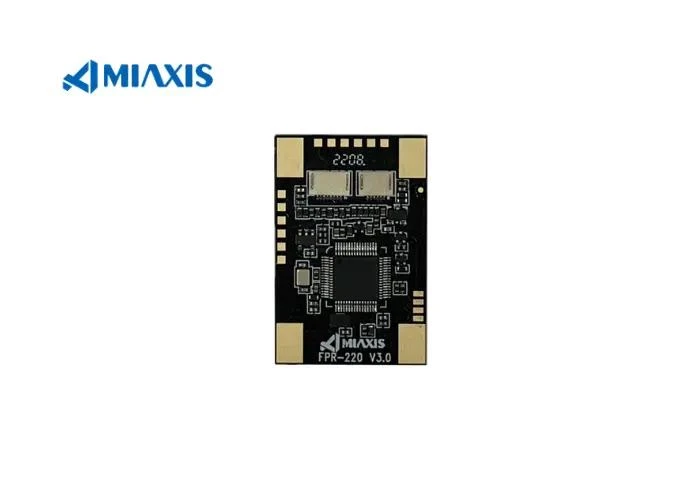

MIAXIS FPR-220 is an integrated capacitive fingerprint sensor module, featured with a large active platen area and FBI-PIV certified high quality 256×360 pixel image in the biometric enrollment process. Its compact design enables easy integration into volume-limited mobile or portable hardware terminals for various identification applications.
FEATURES:
Certificates:
FBI-PIV certified Mobile ID FAP10
Biometric standard: ISO 19794, ANSI 381, ANSI-378, WSQ, JPEG2000, MINEX III compliance
High Image Quality
Capacitive fingerprint technology with superior image quality
Compact Design
Extreme compact design at 4.7mm thick
Strong Adaption
Works well with dry, moist and rough fingerprints
Easy Integration
SDKs available for Android, MS Windows and Linux compatible
Support UART, SPI and USB interfaces
Advanced Algorithm
Template options: MIAXIS, ISO 19794-2 & ANSI 378
MIAXIS proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance
Live Fingerprint Detection(LFD) algorithm to differentiate fake fingers
We can also provide kinds of single fingerprint scanner for sale, if you are interested, please contact us.
There are many biometric machine manufacturers, but we are one of the best choices for you.
