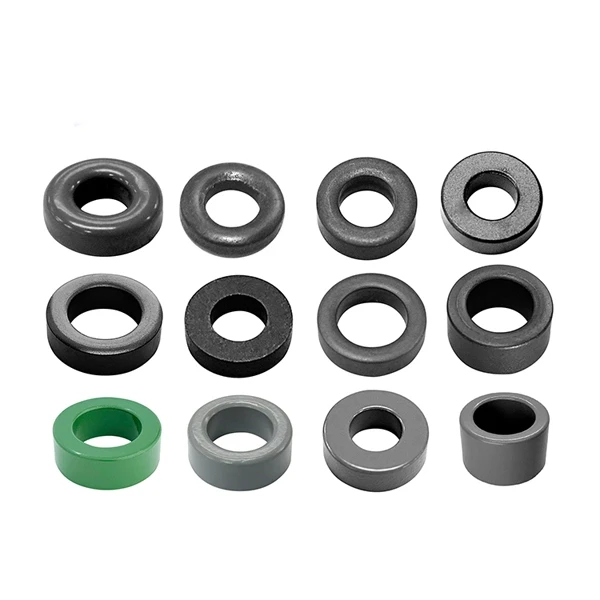

Ferrite Toroids

Product Model: MFT-23-43

MFT: Model code

23: Size code (in inches)

43: Material number

As one of the reputable magnetic core manufacturers, we provide the high-quality electronic component wholesale to meet customers' needs. Explore the properties and applications of our ferrite toroid cores, including the widely used 43 Material Ferrite Toroids, 52 Material Ferrite Toroids, and many others. Whether you're looking for 68 Material Ferrite Toroids, 77 Material Ferrite Toroids, J Material Ferrite Toroids, F Material Ferrite Toroids, or W Material Ferrite Toroids, Magnetic Cube provides the right solution at competitive prices for the best value.

Material Information of Ferrite Toroids

43&4A3 Material Ferrite Toroids: The Material ferrite toroid core is used for EMI/RFI suppression in the 20 MHz to 250 MHz range. The Model MFT-23-43 is highly effective in reducing electromagnetic interference, making them essential components in high-frequency applications.

52 Material Ferrite Toroids: The 52 Material ferrite toroid core which is made of a new NiZn Ferrite material, combines a high saturation flux density and a high Curie temperature. These 52 Material magnetic cores are used for EMI/RFI suppression in the 200 MHz to 1 GHz range. Additionally, 52 Material iron powder toroids offer versatility in power applications.

61 Material Ferrite Toroids: The 61 Material ferrite toroid core is designed for inductive applications up to 25MHz. These 61 Material ferrite toroids also suppress noise frequencies from 200MHz to 1000 MHz.

67 Material Ferrite Toroids: The 67 Material ferrite toroid core is for high Q inductors up to 50 MHz with effective suppression of frequencies above 1000 MHz. These 67 Material ferrite toroid cores are perfect for RF circuits and high-frequency filtering applications.

68 Material Ferrite Toroids: The 68 Material ferrite toroid core is non-standard and only in stock on a few sizes. These 68 Material ferrite toroids offer high-Q performance up to 100 MHz and are tailored for specialized high-frequency applications.

75 Material Ferrite Toroids: The 75 Material ferrite toroid core attenuates extremely well between 0.5 MHz and 20 MHz. These 75 Material toroids are ideal for applications requiring robust performance in low-frequency noise suppression.

77 Material Ferrite Toroids: The 77 Material ferrite toroid core is used in the form of ferrite toroidal coils for transformers, inductors and RF interference suppression. These 77 Material ferrite toroids are highly efficient in reducing electromagnetic noise at a wide range of frequencies.

F Material Ferrite Toroids: The F Material ferrite toroid core has a high saturation flux density at high temperatures. Application of power conversion transformer. Good noise suppression between 0.5 and 20mhz. These F Material ferrite toroids are commonly used in power conversion transformers and provide effective noise suppression between 0.5 MHz and 20 MHz.

H Material Ferrite Toroids: Production of the H Material ferrite toroid core has been discontinued and limited quantities are available. These H Material ferrite toroids provide reliable performance in legacy systems.

J Material Ferrite Toroids: The J Material ferrite toroid core has low volume resistivity and low core loss in the range of 1 KHz to 1 MHz. The J Material ferrite toroids are specifically designed for pulse transformers and low-level broadband transformers. These J Material ferrite toroid cores excel in frequency attenuation, offering superior performance from 0.5 MHz to 20 MHz.

K Material Ferrite Toroids: The K Material ferrite toroid core is mainly used for transmission line transformers from 1 MHz to 50 MHz. These K Material ferrite toroids are widely used in RF transmission systems, ensuring minimal signal loss and high efficiency.

W Material Ferrite Toroids: The W Material ferrite toroid core is a high permeability material used for frequency attenuation from 100 KHz to 1MHz in EMI/RFI filters. These W Material ferrite toroids provide excellent suppression of unwanted noise in sensitive electronic circuits.

For more information about ft 23 77 and ft 37 61, please feel free to contact us!

We can also provide kinds of inductance component for sale, if you are interested, please contact us.
