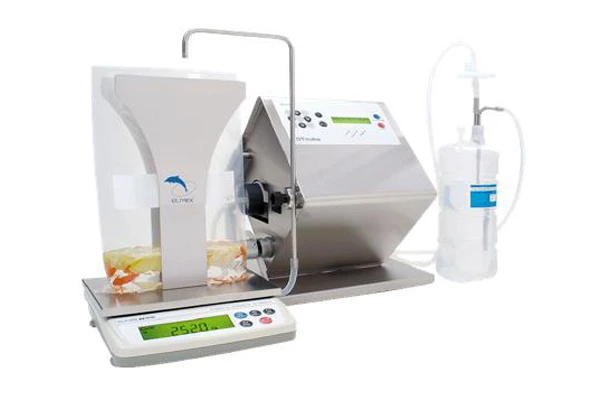

Automatic Media Dispenser Pump Highlights
1. The media dispenser pump has a small size and light design, making it easy to clean and move around as necessary.
2. The culture media dispenser pump comes with a nozzle that can be installed freely on left and right according to the operational requirements.
3. The pneumatic-type liquid feeding method is adopyed, and the media simple dispenser pump has an increased dispensing speed of up to 20% compared to the original product.
4. Elex is the supplier of microbial swab test kits and reagents, we can offer sterile diluent MV2-1000PBS as the dilution solution or you can fill the homemade dilution solution into the matching sterilization bottle SB4000 to contact the device.
5. Intelligent mode, automatic dilution: this feature of the media dispenser pump helps to automatically measure the sample weight and dilute it accordingly, eliminating the need for manual measurement.
There is no need to manually measure the sample weight.
6. Quantitative dispensing: The packing amount can be set freely.
7. Choose to have a printer and connect to a computer for data management.
8. The specific dilution factor used will be automatically archived for the next use of the media dispenser pump.
9. The stainless steel material of the media dispenser pump makes it easy to clean, and the pedal switch can be used in a clean stand.
10. The low noise of the media dispenser pump allows for it to be stopped quickly and without residual droplets.
Technical Specifications of Automated Gravimetric Dilutor
Sample weight
0.5~1000g
Dilution amount
5~1000ml
Dilution precision
Within ±1.0g
Dilution speed
16.67ml/sec (6 seconds for 100ml dispensing)
Dilution multiple
2-999 times
Weighing range
0.1~1500g
Density setting
0.7-1.4g/ml
Material
Stainless steel
Power supply
AC 110V
Weight
7.5kg
Dimension
320х280х270mm
The Supplier ELEX Automated Gravimetric Diluter Details
Products List
Selective Purchasing products
Name
QTY
Name
Model
QTY
Warranty period
Gravimetric dilutor
1 set
Printers (heat-sensitive photocopiers, wiring, AC presses, heat-sensitive paper)
PA030
1
1 year
Dispensing nozzle
1set
Computer Output Devices (Special Software, RS232C Wiring)
PA061
1
Silicone gel tube
2 pcs
Pedal switch
PA037
1
Electronic scale
1 set
4 liter sterilizing bottle, the cap for injection/extraction, circular filter plate, silica gel tube (nozzle, infusion tube can be sterilized together after connecting)
SB4000
1 set
DT-Cube bracket（SUS）
1 set
MV2-1000 infusion apparatu
1 set
Sterilization diluents (phosphate buffered saline, 1 liter х10 bottles)
MV2-1000
1 set
For sample homogenizer, please refer to ELMEX's Pro•media SH-IIM.
It is better to use the company's diluents and homogenized blender bag series.
As a dispensing pump supplier, dispensing pump manufacturer, we will do our best to meet all the needs of customers.
ELEX Biological Products (Shanghai) Co., Ltd., established in 2013, is a sales company of the factory---Anke Biological Products (Shanghai) Co., Ltd., which specializes in sales, research and development of microbiological test products for food hygiene testing and environment testing, simultaneously act as an agency of microbial testing equipment from ELMEX Corporation of Japan. The factory has passed ISO9001:2015, and the products have passed the strict assessment of the quality management of the Japanese food industry and are favored by the industry. Its top popular product---ST swab sampler series account for 70% of the market rate in Japan.
