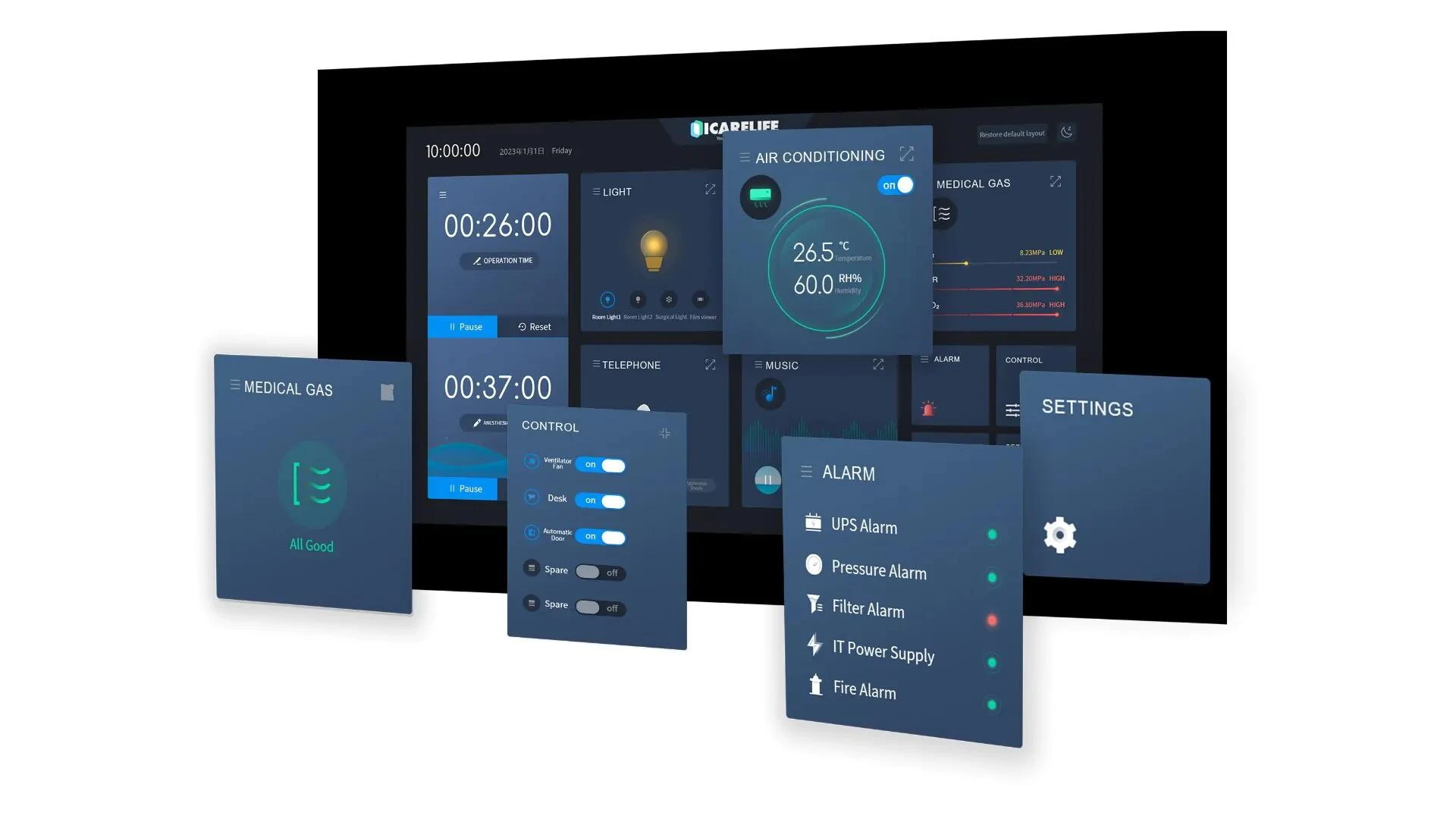

ICARELIFE operating theatre control panel (also called Surgical Control Panel) centralizes temperature, humidity, lighting, and medical gas alarm in a hygienic, user-friendly touch interface. Built with antibacterial materials, it ensures safe, efficient operation and seamless hospital system integration, enhancing OR workflow and precision control.

Features

32″ Capacitive Touch Screen LCD monitor

Operating Room Facility Control: Light 1, Light 2, Shadowless Light, Led light, Medical Door, X-ray View, Writing Desk.etc (on/off)

Environment Data Display & Control: Tempe, Humidity and HVAC data. etc. (through Modbus RS-485 protocol)

Medical Gas Display & Alarm

IT Power Supply Alarm, UPS Alarm, Fire Alarm, Filter Alarm, Room Pressure Alarm

Other Function: Music (Remote, Local and Bluetooth) Phone and Video Call

Option sensors

Air Duct Humdity & Temp Sensor​

Model: SIEMENS QFM2030

Relative Humidity Digital Output: DC 0–10V

Temperature Digital Output: DC 0–10V

Measurement Accuracy: <±0.8°C @ 25°C / ±5% r.h.

Applicable Temperature & Humidity Range: 0–50°C / 10–90% r.h. (Non-condensing)

Operating Voltage: AC 24V or DC 19-30V

Differential Pressure Sensor

Model: SIEMENS QFM 1660

Operating Voltage: AC 24V or DC 13.5–33V

Signal Output: DC 0–10V

Zero Point Adjustment

Calibrated and Temperature-compensated Measurement Signal

Medical Gas Pressure Sensor​​

Measurement Range: -0.1MPa to 100MPa (Optional)

Operating Voltage: Universal for 220V and 380V

Accuracy: 1.6 Grade

Ambient Temperature: -40°C to 70°C

Relative Humidity: ≤85%

Now the price of or control panel is reasonable, anything you need, please contact us.

As one of operating theatre equipment suppliers, we will do our best to meet all the needs of customers.
