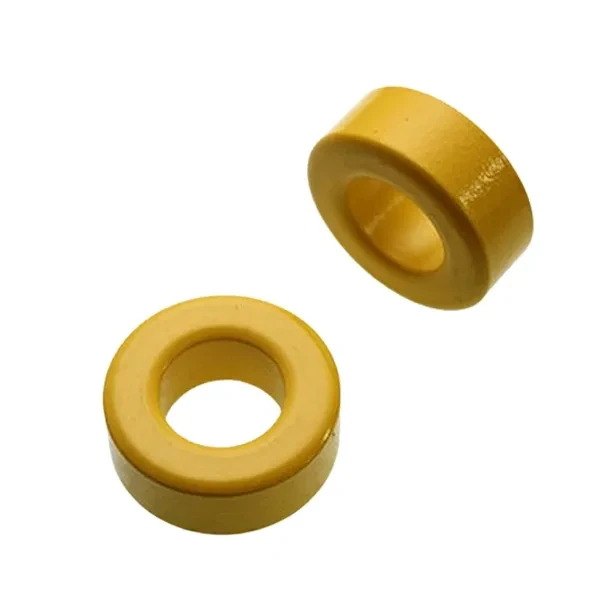

Iron Powder Toroids

Typical Part Number: T 106-26 B /

MT: Toroidal Geometry

106: OD in 100th inches

26: Micrometals Material Mix No.

B: Letter Indicates Alternate Height

/: Code Area For Other Characteristics

Choose Magnetic Cube for reliable, high-quality iron powder toroids designed for optimal performance and minimal losses in various applications. As one of the reputable magnetic core manufacturers, we provide the high-quality electronic component wholesale to meet customers' needs. Our company stands out among magnetic core suppliers by offering tailored iron powder toroids that meet the diverse needs of our clients.

Material Information of Iron Powder Toroids

Iron powder toroids are essential components for high-frequency and RF applications. Engineers and hobbyists alike rely on iron powder toroids for building efficient filters, chokes, and transformers. Whether for amateur radio or cable TV systems, iron powder toroids ensure stable, high-Q results.

-2, -4, -6 & -7 Materials: These are the most popular carbonyl iron mixes. They will provide High Q up to 40 MHz and the most popular for amateur radio and a variety of other communication applications. They are also useful for moderate band transformers in the 200 to 400 MHz frequency range.

-10 & -17 Materials: These materials are the highest-frequency carbonyl irons. They will provide high Q up to 150 MHz and are a popular material for cable television applications. They will produce moderate band transformers covering 400 to 700 MHz.

-1, -3, -8 & -15 Materials: These materials are annealed carbonyl irons providing the highest carbonyl permeability. They are useful for high Q applications below 1 MHz and will provide the broadest band transformers covering a typical range from 50 to 500 MHz.

-0 Material: This is a non-magnetic material. It provides a solid winding form for winding air coils. It has excellent temperature stability and will provide high Q up to the highest frequencies. It is also useful for moderate band transformer applications covering a typical range from 600 MHz to 1 GHz.

-2 & -14 Materials: The low permeability of these materials will result in lower operating AC flux density than other materials with no additional gap loss. The -14 Material is similar to -2 Material with a higher permeability.

Choose iron powder toroids for broadband transformers, high-Q inductors, and EMI filtering. Trust iron powder toroids for quality, stability, and versatility. For your next project, make iron powder toroids your magnetic core of choice.
