MEDICAL AIRFLOW SYSTEMS FOR OPERATING ROOMS

MEDICAL AIRFLOW SYSTEMS FOR

OPERATING ROOMS

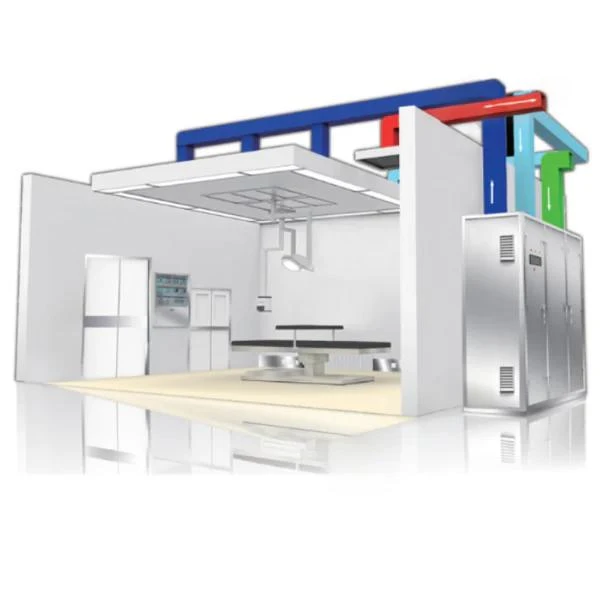

Maintaining a safe, sterile environment in operating rooms requires precise airflow control. ICARELIFE’s Medical Airflow Systems combine advanced hospital air handling units (AHUs) and laminar flow ceilings to deliver ultra-clean, temperature-controlled air that minimizes contamination risks. Our customizable, energy-efficient solutions meet global standards for medical cleanrooms and modular operating theaters.

Medical Air Handling Unit Hospital

The ICARELIFE healthcare AHU is a high-performance, space-saving solution designed for cleanrooms, hospitals, and controlled environments. Engineered for efficient air filtration, temperature, and humidity control, it ensures optimal indoor air quality while minimizing energy consumption.

Key Features

Compact & Modular Design-Ideal for space-limited environments, allowing flexible installation.

High-Efficiency Filtration-Integrated with HEPA/ULPA filters to ensure superior air purity.

Energy-Saving Operation-Optimized airflow system reduces power consumption while maintaining performance.

Smart Control System -Advanced digital monitoring for precise temperature, humidity, and airflow regulation.

Low Noise & Vibration-Designed for quiet operation, ensuring a comfortable working environment.

FAQ

How to select central AHU for healthcare facilities ?

Air Handling Units (AHUs) for healthcare facilities requires careful consideration of various factors to ensure optimal performance, compliance with standards, and patient safety.

1. Compliance with Standards:

Adhere to guidelines from organizations such as the Facility Guidelines Institute (FGI) and ASHRAE Standard 170, which outline ventilation and operating room air filtration requirements for healthcare environments.

2. Filtration Requirements:

Implement multi-stage filtration systems, including HEPA filters, to maintain high indoor air quality and reduce airborne contaminants.

3. Fan Selection and Arrangement:

Choose appropriate fan types and configurations, such as direct-drive plenum fans, to enhance energy efficiency and reduce maintenance needs.

4. Energy Efficiency:

Incorporate energy-efficient strategies, including variable frequency drives and energy recovery systems, to reduce operational costs and environmental impact.

5. Redundancy and Reliability:

Design AHUs with redundancy features, like fan arrays, to ensure continuous operation in critical healthcare settings.

6. Space Constraints and Customization:

Consider custom or modular AHUs to accommodate space limitations and specific design requirements.

By focusing on these aspects, engineers can specify AHUs that meet the stringent demands of healthcare facilities, ensuring a safe and comfortable environment for patients and staff.

What is the advantage of ICARELIFE compact AHU

ICARELFE Compact AHU stands out from traditional Air Handling Units (AHUs) with its innovative design, efficiency, and advanced air purification capabilities. Here’s what makes it unique:

1. Compact & Modular Design

Space-saving structure – Designed for tight installation areas while maintaining high-performance airflow.

Plug-and-play installation – Modular components for quick setup and easy maintenance.

2. Medical-Grade Air Purification

Equipped with HEPA/ULPA filters to eliminate airborne bacteria, viruses, and particulates.

Integrated UV sterilization and active carbon filtration for enhanced air quality.

3. Intelligent Control & Energy Efficiency

Smart automation for real-time monitoring of airflow, temperature, and humidity.

EC motor technology for low energy consumption and ultra-quiet operation.

Variable Air Volume (VAV) system adjusts airflow based on demand, optimizing efficiency.

4. Compliance with Healthcare Standards

Designed to meet ISO 14644, GMP, and hospital hygiene regulations.

Suitable for operating rooms, ICUs, isolation wards, and medical cleanrooms.

Laminar airflow ceiling

ICARELIFE Laminar Flow Ceilings deliver ultra-clean, low-turbulence airflow over the surgical zone to minimize contamination. Custom-designed for any operating theater, they work in perfect harmony with ICARELIFE wall panels and AHUs to create a fully integrated cleanroom solution.

Conventional Laminar airflow ceiling

As one of top ahu manufacturers in world, ICARELIFE provides advanced laminar flow ceilings for cleanroom use in operating rooms, ensuring contamination-free environments through efficient air filtration and uniform airflow. Key features include multiple filtration levels, durable construction, and customizable designs to suit various client needs.

Laminar air flow ceiling

High-Efficiency Filtration

Equipped with H14 HEPA filters to deliver ultra-clean airflow and minimize contamination risks.

Uniform Air Distribution

200-mesh diffusion net ensures consistent, turbulence-free airflow across the surgical zone.

Customizable Sizing

Available in multiple dimensions (2600×1400mm to 2600×2400mm) to suit various cleanroom layouts.

Durable & Corrosion-Resistant

Constructed from 1.2mm powder-coated electrolytic steel for long-term reliability.

Integrated & Space-Saving Design

Combines lighting, filters, and diffusers into one streamlined, efficient ceiling unit.

CATETORY DETAIL

Dimensions - Standard Sizes: 2600 × 2400 × 500 mm / 2600 × 1800 × 500 mm / 2600 × 1400 × 500 mm

- Opening Sizes: 2606 × 2406 × 500 mm / 2606 × 1806 × 500 mm / 2606 × 1406 × 500 mm

Material - 1.2 mm thick electrolytic steel plate with white powder coating for corrosion resistance

- 200-mesh stainless steel diffusion screen

Air Filtration - H14 HEPA filters with 99.995% efficiency

- Filter Options: • 610 × 305 × 292 mm (8 units) • 366 × 946 × 69 mm • 676 × 1196 × 69 mm

Airflow Distribution Uniform airflow design with laminar diffusion, ensuring ISO Class 5 cleanliness levels

Sealing & Airtightness - Fully welded assembly to ensure leak-free performance

- Seamless integration with ceiling structures for optimal airtightness

Noise Levels ≤ 42 dB during operation

Installation Type Modular design with hanging or interlocking system for quick assembly and alignment

Customization Options - Sizes: Custom dimensions available upon request

- Finish: White powder-coated surface or other finishes as per client requirements

Durability - Load-bearing capacity for maintenance access (walkable ceiling panels)

- High-strength welded construction for longevity

Certifications - Compliant with ISO 14644 Cleanroom Standards

- H14 HEPA Filter Certification

- National-level fire rating (Grade A Certification)

Integration Features - Compatible with ICARELIFE HVAC systems for seamless air handling

- Lighting systems integration available

Maintenance Acces - Easy-to-remove panels with spring-loaded clips

- Tool-free access to filters for simplified replacement

Application Operating rooms, cleanrooms, ICUs, laboratories, and pharmaceutical environments

ICARELIFE’s Compact Ceiling AC & Disinfection System offers an integrated solution for small to mid-sized facilities, combining air conditioning with disinfection. It lowers installation and maintenance costs compared to traditional systems. Although it has moderate airflow and lacks humidity control, its energy efficiency and ease of use make it ideal for ensuring clean, comfortable air in critical environments.

Feature ICARELIFE Laminar AC & Disinfection Ceiling Conventional Laminar Airflow Ceiling with AHU

Design Compact, integrated unit Requires AHU and ducting

Functionality Air cooling & disinfection only Cooling, humidity control, and airflow

Installation Cost Low High

Maintenance Cost Low High

Airflow Performance Moderate High

Humidity Control Not available Available

Energy Efficiency Higher due to compact design Lower due to large system size

Application Small to mid-sized facilities Large hospitals, specialized areas

Key Selling Point Affordable, easy installation, compact Comprehensive environmental control

All-in-One Design

Integrates cooling and plasma disinfection in a compact, ceiling-mounted unit.

Energy Efficient

Reduces energy consumption by up to 40% compared to traditional systems.

Easy Installation

No need for AHU; simplified ducting minimizes installation and material costs.

Durable & Low Maintenance

Designed for 70,000+ hours of operation with minimal servicing required.

Laminar AC & Disinfection Ceiling Install Video

Category Specification

Application Standard Operating Room, General Isolation Room, Burn Unit, ICU, Sterile Area

Design Compact ceiling-mounted unit

Functionality Air cooling and disinfection

Airflow Performance Moderate, suitable for maintaining clean air in medium-sized facilities

Airflow Rate 800-1500 m³/h

Cooling Capacity 7.2 kW

Heating Capacity 7.9 kW

Humidity Control Not available

Noise Level ≤ 50 dB(A)

Power Supply 220V/1P/50Hz

Energy Efficiency High, optimized for reduced power consumption

Disinfection Technology Plasma-based sterilization with Coulomb force technology

Disinfection Efficacy 99.9% kill rate for airborne Staphylococcus; 95.35% reduction in natural bacteria

Filter Type Integrated HEPA filtration

Installation Requirements Direct ceiling installation; no separate AHU or ducting required

Space Requirement Compact design eliminates the need for a separate machine room

Maintenance Minimal; no consumables required

Operating Lifespan Over 70,000 hours

Compliance Standards GB/T 14929.4-2008; Disinfection Technical Specifications (2002 version)

Product Dimensions 1500 x 950 x 455 mm

Weight 165 kg

Target Market Small to mid-sized hospitals, outpatient clinics, healthcare facilities

Application

Standard Operating Room

Delivery Room, Infant Room

Premature Infant Room

General Isolation Room

Supply Room, Sterile Area

Burn Unit, Intensive Care Unit

Air: ≤ 200 cfu/m³

Surface: ≤ 5 cfu/cm²

Healthcare Personnel Hands: ≤ 5 cfu/cm²

Duct-free Laminar Ceiling

The ICARELIFE Duct-Free Laminar Ceiling delivers clean, controlled airflow with six integrated FFUs, achieving 99.99% filtration efficiency (H14). Its duct-free design reduces costs, simplifies installation, and saves space, making it ideal for operating rooms and sterile environments.

Duct-Free Design

Simplifies installation, lowers costs, and removes the need for traditional ductwork.

Integrated FFUs

Includes six high-efficiency FFUs with 99.99% (H14) HEPA filtration for optimal air purity.

Quiet & Energy-Efficient

Operates at 48–58 dB with low power consumption (900W–1140W ±5%).

Adjustable Airflow

Three-speed control (0.45–0.75 m/s ±5%) adapts to various cleanroom requirements.

Compact & Durable

Lightweight aluminum frame offers strength while maximizing ceiling space.

Specification Details

Product Name Duct-Free Laminar Ceiling, ICARELIFE Model

Filtration Efficiency ≥ 99.99% (H14), certified HEPA filters ensuring 100% filtration at 0.3µm

Airflow Speed Adjustable between 0.45-0.75 m/s ±5%

Noise Level ≤ 58 dB, measured at 1.5m below the uni

Power Consumption 300W-380W ±5%, operates on 220V, 50Hz

Material Aluminum alloy, lightweight, and durable

Initial Pressure Drop ≤ 125 Pa, ensuring efficient and uniform airflow

Number of FFUs Integrated with 6 high-efficiency Fan Filter Units (FFUs)

Duct Requirement Duct-free design eliminates the need for traditional duct installations

Vibration Peak ≤ 5µm for stable and reliable operation

Dimensions 1600mm x 2400mm, compact and modular for easy ceiling integration

Weight Approx. 85 kg, lightweight for simplified installation

Applications Ideal for operating rooms, cleanrooms, and ICUs

Certification CE and ISO certified, meeting safety and quality standards

Installation Ceiling-mounted, duct-free setup for simplified assembly

Service Life ≥ 50,000 hours, designed for long-term, low-maintenance operation

Temperature Control Not included, focuses solely on clean airflow delivery

Humidity Control Not included, optimized for efficient airflow and disinfection

The Complete OR Airflow Solution

ICARELIFE integrates medical air handling units, laminar flow ceilings, and cleanroom accessories into a seamless airflow control system. Our solutions are designed to work together, providing hospitals and surgical centers with reliable, energy-efficient protection against airborne contamination in modular operating rooms.

Contact now or download our brochure to explore how ICARELIFE can support you.
