Metis-CR1 acquired VDI 4707 PART 1 highest grade A certification certified by the German TüV energy-efficiency testing so winning a large number of high-standard customers and industry appreciation in the Chinese market.

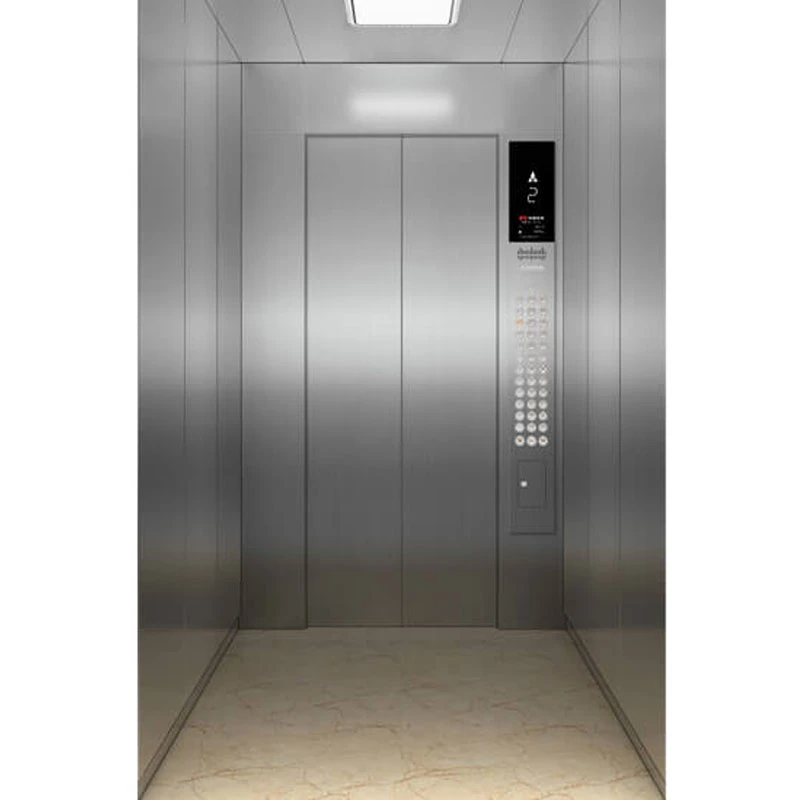

Feature Of METIS-CR automatic passenger lift
Human technology for safe arrival.
Comfortable experience with low energy consumption.
Optional configuration.
Specification Of METIS-CR automatic passenger elevator
NO. Specification 545(8P) 615(9P) 685(10P) 750(11P) 820(12P) 885(13P) 955(14P) 1025(15P) 1160(17人/P) 1295(19人/P)
1 Capacity (kg) 545 615 685 750 820 885 955 1025 1160 1295
2 Speed (m/s) 1 1.5 1.75 1 1.5 1.75 1 1.5 1.75 1 1.5 1.75 1 1.5 1.75 2 1 1.5 1.75 2 2.5 1 1.5 1.75 2 2.5 1.5 1.75 1 1.5 1.75 1 1.5 1.75 2 2.5 1 1.5 1.75 2 2.5
3 Operation System full collective selection operation
4 Driving System VVVF
5 Door Operator System VVVF
6 Traction Machine Permanent Magnet Synchronous Gearless type
7 Control System CTRL71
8 Parallel Elevators 2 units
9 Group Control Elevators 3-8 units
10 Wide Car Car Dimension mm
width*depth 1400*1050 1350*1200 1400*1250 1400*1350 1500*1350 1500*1400 - 1600*1550 1800*1500 1800*1650
Shaft Size mm
W*H 2100*1700 2050*1850 2100*1900 2100*2000 2200*2000 2200*2050 - 2300*2200 2500*2200 2600*2350
11 Deep Car Car Dimension mm
width*depth - - - 1150*1650 1250*1650 1300*1650 1100*2100 1200*2100 1300*2100 1400*2150
Shaft Size mm
W*H - - - 2050*2050 2100*2050 2150*2050 2000*2500 2250*2500 2400*2500 2600*2550
IFE elevators, as an excellent elevators manufacturer, offers different types of escalators for you to choose from.
