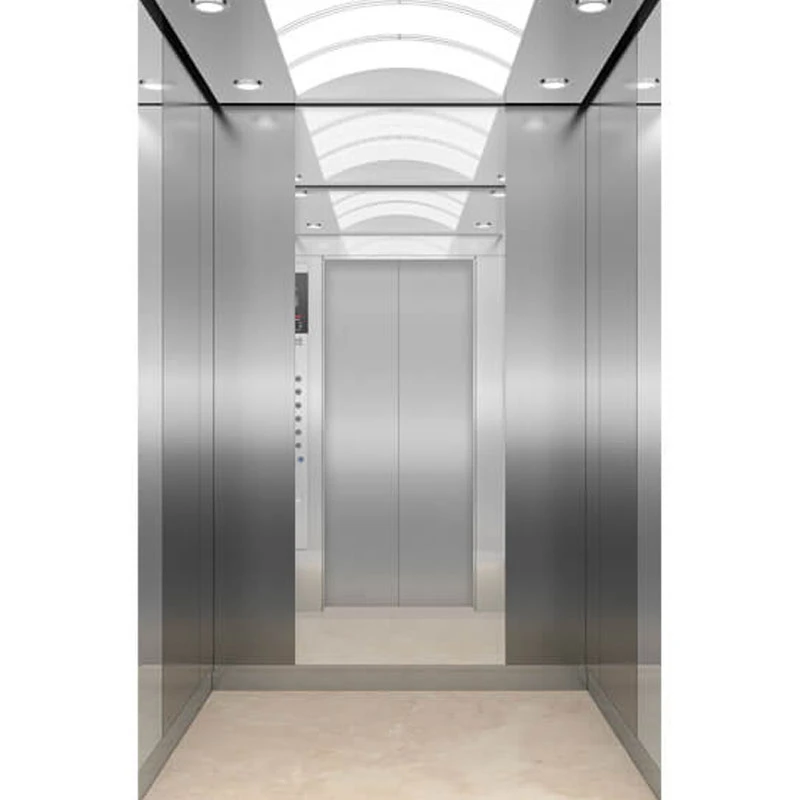

METIS-CR1 Passenger Elevators

METIS-CR1 is a new-generated product of the classic compact machine room of the IFE elevator, inheriting the concept of safety, comfort, energy-saving and environmental friendly. Satisfying the high-efficient operation requirements of various types of buildings such as residential buildings, office buildings and hotels for providing passengers with an efficient enjoyment.

Features Of METIS-CR1 8 passenger lift

Safe, Comfort

And Efficient Experience

By Human Technology

Specification Of METIS-CR1 8 person passenger lift

NO. Specification 630(8P) 800(10P) 1050(14P) 1350(18P) 1600(21P)

1 Capacity (kg) 630 800 1050 1350 1600

2 Speed (m/s) 1 1.5 1.75 1 1.5 1.75 2 1 1.5 1.75 2 2.5 1 1.5 1.75 2 2.5 1 1.5 1.75 2 2.5

3 Operation System full collective selection operation

4 Driving System VVVF

5 Door Operator System VVVF

6 Traction Machine Permanent Magnet Synchronous Gearless type

7 Control System CTRL80

8 Parallel Elevators 2 units

9 Group Control Elevators 3-8 units

10

Wide Car Car Dimension mm

width*depth 1400*1100 1400*1350*2500 1600*1500 1950*1500 1950*1750

13 Shaft Size mm

W*H 2000*1750 2000*2000 2200*2100 2600*2200 2600*2500

16

Deep Car1 Car Dimension mm

width*depth - 1200*1600 1300*1750 1700*1750 1700*2000

18 Shaft Size mm

W*H - 2000*2000 2200*2100 2600*2200 2600*2500

20 Deep Car2 Car Dimension mm

width*depth - - 1100*2100 1200*2400 1400*2400

22 Shaft Size mm

W*H - - 2050*2500 2150*2750 2400*2800

For 8 passenger lift cost, contact us.

IFE lift, as an excellent elevators company, offers a wide range of china escalators for you to choose from.
