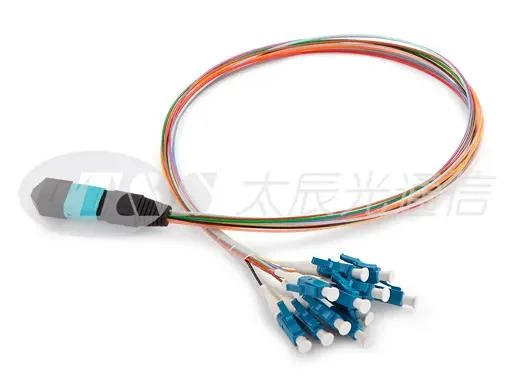

MPO/MTP® Hydra cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects. This solution is a 12-colored 0.9mm cable utilizing an MPO/MTP® connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle with plug and play modules, MPO/MTP® Adapter Plates, and other solutions. It is fully configurable, available in 8/12/16/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types. T&S offers premium Hydra cables, ensuring superior performance and reliability for all your advanced connectivity needs.
Features of MTP®/MPO Hydra Fiber Cable
Low loss performance
Fiber count available in 8~24
Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request
Option for LSZH, PVC or Hytrel loose tube
100% factory terminated and tested
Applications of MTP®/MPO Hydra Cable
Data Center Interconnect
Backbone Installations
Telecommunication Networks
Broadband/CATV Networks
LAN/WAN Premises
Standards Compliance of MTP®/MPO Hydra Cable
TIA/EIA-568.3-D and ISO/IEC 11801
IEC-61754 & EIA/TIA-604-5
NFPA 262 or IEC 60332
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC
EN 50575
Comply with GR-1435-CORE, GR-2866-CORE, GR-326-CORE
Benefits of T&S Hydra Cable
Improved Durability: Resistance to water damage, making it suitable for outdoor or damp environments.
Versatility: Capable of handling various applications due to its flexibility and water resistance.
Reliability: Enhanced performance under adverse conditions, ensuring consistent signal transmission.
Reduced Maintenance: Less prone to issues caused by moisture, potentially reducing maintenance costs.
As a fiber optic products supplier, we will do our best to meet all the needs of customers.
