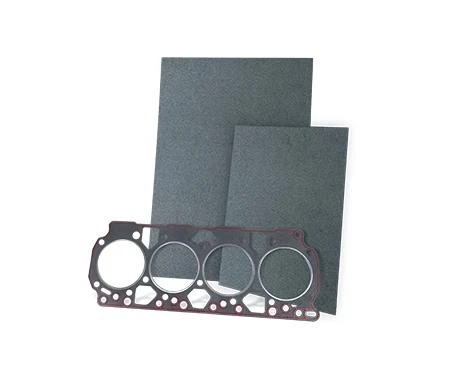

Non-asbestos Composite Gasket Sheet

Non-asbestos Composite Gasket Sheet

Non-asbestos composite seal gasket sheet is made of non-asbestos beater sheet reinforced with tanged steel. The asbestos-free gasket sheet has an excellent performance in dilatability, sealing equality, high-temperature resistance, and long life, etc., Mainly applied in automobile farming machines, motorcycles, engineering, etc., it is always used in high-strength gaskets and cylinder gaskets, etc.

Area of Applications：

Non-asbestos Cylinder Head Facing (CHF) applications. Good for sealing all sorts of lubrication oils, fuels, and combustion engine-related mediums。

Characteristics：

Environmental friendly material, Elastomeric binders, with good corrosion resistance, heat insulation, and sound insulation properties.

Temperature Recommended≤ 350 ℃

Thickness：

1.0-2.0mm, Other thicknesses of composite gasket material can be supplied upon requested

Specifications of Non-asbestos Composite Gasket Sheet

Properties

Unit

Standards

Test Method

Density

g/cm3

2.3±0.3

ASTM F1315

Compressibility（34.5MPa）

%

≥ 10

ASTM F36

Recovery

%

≥ 35

ASTM F36

Immersion: #903  Oil (150℃, 5hrs (150±2）

Weight change

%

≤ 30

ASTM F146

Thick change

%

≤ 20

Immersion Test,

Weight change

%

≤ 30

ASTM F146

Fuel B（21-30 ℃

×5h）

Thick change

%

≤ 20
