Brand: ORIVISION
Model: ZY-CKH531
【UHD 4K30 Resolution】Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz
【Up to 120m Extension】Support point to point transmission and point to multi-point transmission over gigabit switches
【Excellent Quality】Support bi-directional audio/mic signal transmission, Support EDID mode and RS232 control
【Remote turn On/Turn Off】Press the "PC PWR" button on the Rx-end to turn on / turn off the PC on TX
【KVM USB2.0 Supported】Support USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.
【Plug and Play】Simple to install, plug and play, no setup or configuration needed
4K@30 HDMI KVM Extender Over Cat5/6 Cable up to 120M
The 4k hdmi kvm extender is a KVM Extender is a video extender solution, extending HDMI video, analog audio, and USB 2.0 devices up to 120 meters (394 feet) over a single Cat5e cable. With RS232 control port, and a Gigabit Ethernet port. For point-to-point transmission and point-to-many transmission with gigabit switches.
Applications include keyboards, mice, microphones, hard drives, touch screens, scanning guns, and other USB 2.0
devices. Video resolution is 3840*2160@30HZ and does not degrade when extended to the full 120 meter distance.

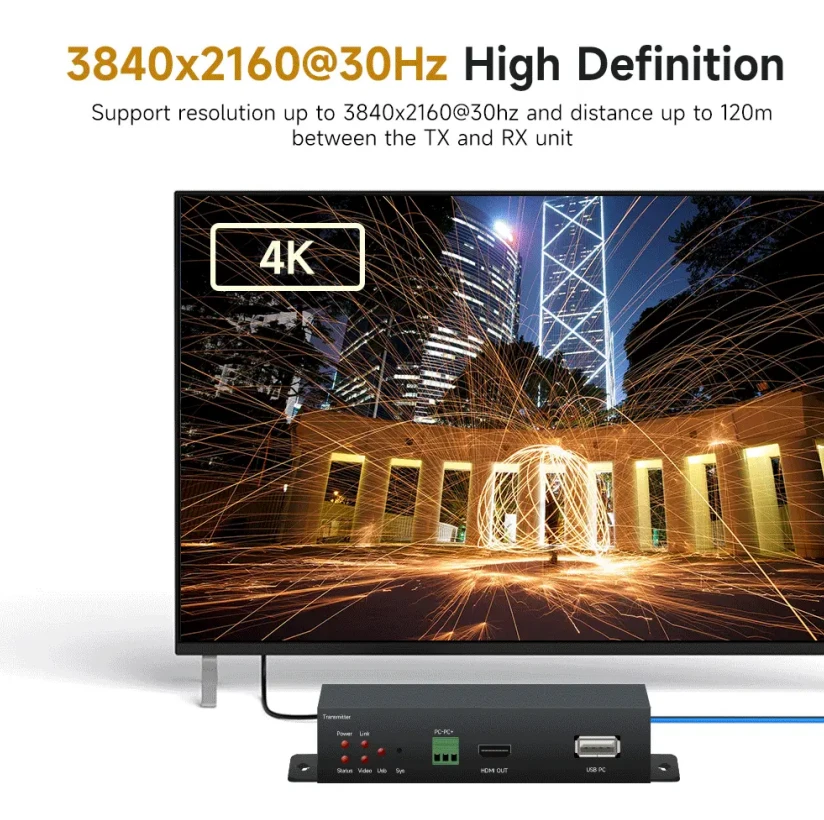

Ultra HD Resolution
Supports the max resolution of 3840x2160@30hz,clear and stable, providing you with an ultra-high-definition video vision, compatible with HDMI1.4 and HDCP1.4
Ultra HD Resolution
Transmission Distance up to 394ft over Cat5e Cable
The hdmi kvm extender extends HDMI audio video signals via a single CAT5e cable to 120 meters/394 feet with resolutions of up to 4K@30 Hz.
Transmission Distance up to 394ft over Cat5e Cable
Point to Multi-point over Gigabit Switches
With a single CAT5e cable, you can easily extend HDM signals up to 394ft. Point to multi-point through Gigabit Network Switches.
Point to Multi-point over Gigabit Switches
Bi-Directional Audio Signal Transmission
The transmitter supports audio embedding from and external audio source, while the receiver can extract audio from the HDMI signal for use with an external amplifier or powered speakers.
The receiver supports audio embedding from and external audio source, while the transmitter can extract audio from the HDMI signal for use with an external amplifier or powered speakers.
Bi-Directional Audio Signal Transmission
Exclusive EDID Function
Use the EDID copy function on the transmitter to help with audio and video signal incompatibility issues between the source and display.
Exclusive EDID Function
KVM Support All USB2.0 External Devices
Supports USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.
KVM Support All USB2.0 External Devices
Remote Turn On/Off The PC on TX
Press the "PC PWR" button on the Rx-end to turn on/turn off the PC on TX
Remote Turn On/Off The PC on TX
Plug and Play
No driver required; Sturdy metal enclosure provides durability
Plug and Play
Parameters Of 4K@30HZ HDMI/USB2.0 KVM Extender over Cat5e Cable
Diagram Of 4K@30HZ HDMI/USB2.0 4k kvm extender over Cat5e Cable
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
For more about streaming encoder hardware and vga to ip encoder, contact us.
