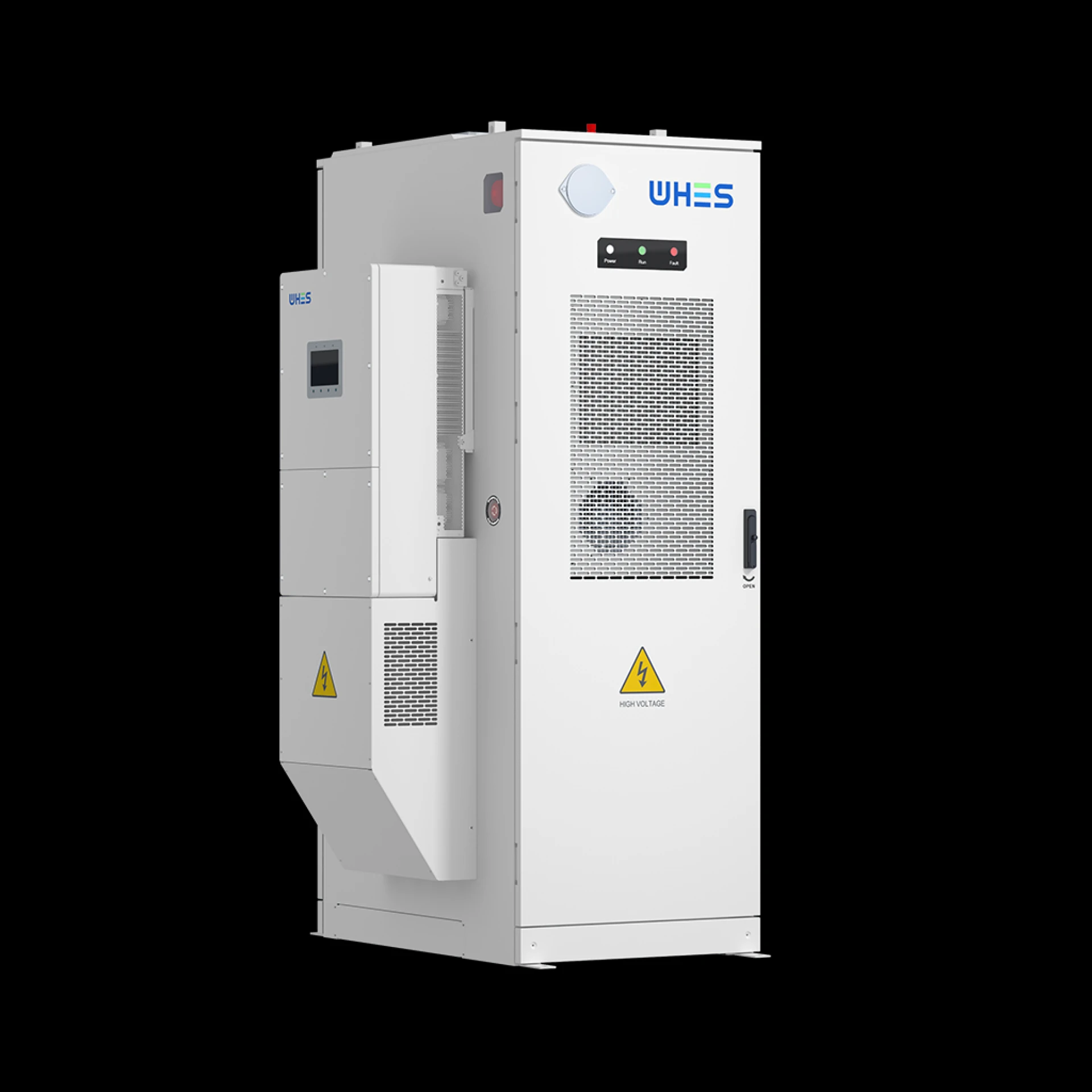

PowerCore C&I Energy Storage System

PowerCore

C&I ESS, C&I Energy, C&I BESS

Your Energy Guardian Anytime, Anywhere

Features

Superb

Max. 20A PV input current per string, compatible with all PV modules.

4 MPPTs and 200% PV oversizing ensure maximum utilization of solar energy.

280Ah long-life cells with 8000 cycles.

Flexible

Parallel connection of up to 6 PCS for both on-grid and off-grid scenarios.

<10ms EPS switching for continuous power.

Supports 100% unbalanced output, half-wave and surge loads.

User-Friendly

High energy density, with a footprint of only 0.86㎡.

No foundation required, simplifying setup.

<65dB, suitable for diverse environments

Safe

IP55 (Battery)/IP66 (Inverter) rating for dust and water resistance.

Four-level active and passive fire protection ensures comprehensive safety.

AFCI optional

Max. 20A PV Input Current Per String

Supports mainstream PV modules: M10, G12, and G12R (182mm & 210mm).

0.86m² Compact Footprint (Without Inverter)

Scalability & Flexibility

Parallel connection of up to 6 PCS for both on-grid and off-grid scenarios.

< 10ms EPS Switching For Continuous Power

On/off Grid seamlessly Switching Ensures stable operation under complex power conditions.

Technical Specifications

IA-29.9kW/100kWh-EC10

Max. PV Input Power

59.8kW

Maximum Current

3*40A

Battery type

LFP 3.2V / 280Ah

System Capacity

100kWh

Dimensions (W*D*H)

750*1150*2250 mm (without inverter); 1070*1150*2250 mm (with inverter)

IA-30kW/100kWh-EC10

Max. PV Input Power

60kW

Maximum Current

3*40A

Battery type

LFP 3.2V / 280Ah

System Capacity

100kWh

Dimensions (W*D*H)

750*1150*2250 mm (without inverter); 1070*1150*2250 mm (with inverter)

IA-40kW/100kWh-EC10

Max. PV Input Power

80kW

Maximum Current

4*40A

Battery type

LFP 3.2V / 280Ah

System Capacity

100kWh

Dimensions (W*D*H)

750*1150*2250 mm (without inverter); 1070*1150*2250 mm (with inverter)

IA-50kW/100kWh-EC10

Max. PV Input Power

96kW

Maximum Current

4*40A

Battery type

LFP 3.2V / 280Ah

System Capacity

100kWh

Dimensions (W*D*H)

750*1150*2250 mm (without inverter); 1070*1150*2250 mm (with inverter)

If you want to know more about all in one ess, please visit our website.
