Prodigy Stratix 10 Series - Prototyping with Intel Stratix 10 FPGA

Stratix 10 GX 10M

With its latest Intel (Altera)  Stratix 10M FPGA technology, the S2C Prodigy Intel Stratix 10 GX 10M FPGA module is compatible with 90+ Prodigy daughter card libraries, with a maximum capacity of up to 318 M ASIC gates in one FPGA. S2C's intel fpga stratix 10 Prodigy Logic System enables users to take advantage of the performance and functionality of intel stratix fpgato meet their design needs by providing a complete design environment that includes all necessary hardware and software.

FPGA Resources - Intel  intel stratix 10 gx 10M

Large capacity and scalability with 40.8M Logic Elements

Up to1,102Mb memory

Up to13,842 DSP blocks

Technical Highlights

Up to 4,608 high-performance I/Os for inter FPGA connections and daughter cards

160 high-speed transceivers that can run up to 16Gbps

64 high-speed transceivers and 128 GPIOs through 8 PGT Connectors

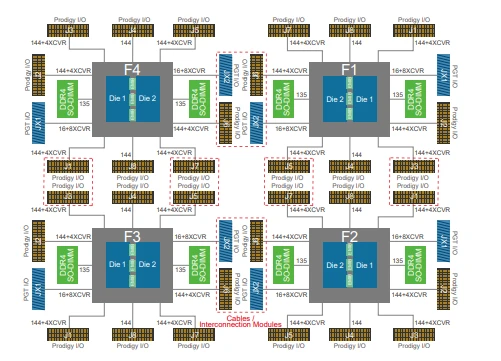

S10 GX 10M Prodigy Logic System Configuration Table

For more information about fpga emulation and FPGA Prototyping, please feel free to contact us!
