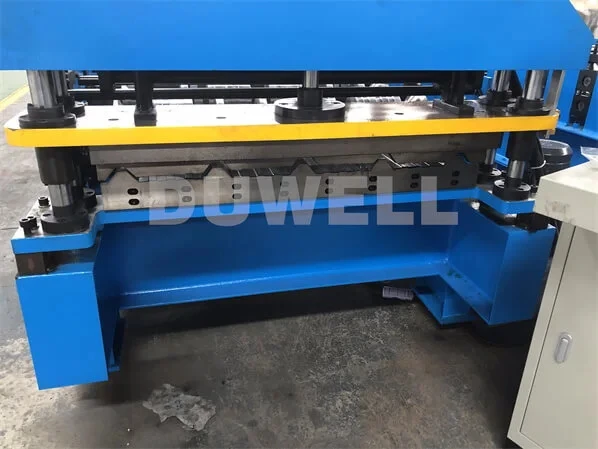

Roof/Wall Panel Roll Forming Machine

roof tile roll forming machine consists decoiler, roll forming , cutting and stacking, complete production line, controlled by PLC system. The customer just set the length and numbers on controller. Also we can make different roof panels in one machine, by quick change (Change cassette) or by double roof tile forming machine.

INTRODUCTION:

Steel roof panels are widely used in residential, commercial, and industrial construction due to their durability, weather resistance, and cost-effectiveness. Different profiles are designed for specific structural and aesthetic needs. Below are the most common types of steel roof panels:

1. Corrugated Steel Roof Panels

2. Trapezoidal (Box Profile) Roof Panels

3. Standing Seam Roof Panels

4. Tile-Profile Steel Roof Panels

5. 5-V Crimp Roof Panels

6. R-Panel (Ribbed Panel)

7. Concealed Fix (Hidden Fastener) Roof Panels

KEY FEATURES:

Automatic Operation: PLC-controlled for consistent, high-speed production.

Customizable Profiles: Produces various roof panel designs (e.g., trapezoidal, corrugated, standing seam).

High Precision: Hydraulic or servo systems ensure accurate shaping and cutting.

Material Flexibility: Works with different metal thicknesses (typically 0.2mm–1.2mm).

Durability: Robust construction with hardened rollers for long service life.

Safety Features: Emergency stops, overload protection, and safety guards.

TECHNICIAN DETAILS of Roof/wall panel roll forming machine

Working process

Decoiler —→ Guiding—→Roll-forming Machine—→ Hydraulic cutting—→ Stacking

Machine parameters

Suitable plate of the rolling: PPGI or GI with thickness 0.3~0.8mm,

Working speed: 15~25 meters/min

Forming stations: According to customer’s roof profiles

Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62

Material of principal axis: #45 advanced steel

Main machine power: 5.5 KW

Control system: The whole metal wall panel machine is controlled by PLC system.

There are many roll form tooling suppliers, but we are one of the best choices for you.
