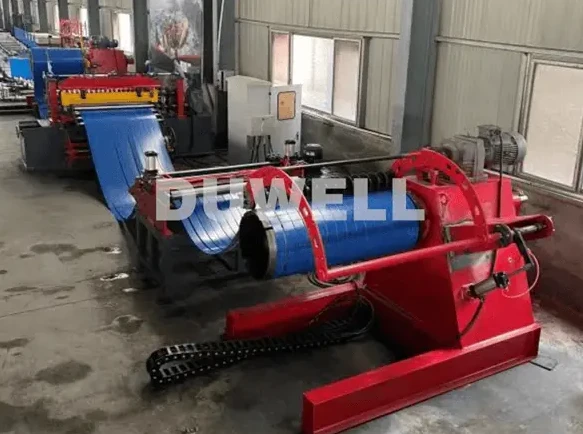

Simple Slitting Line

The Simple Steel Coil Slitting Line is an efficient and cost-effective solution for processing steel coils into narrower strips with precise width control. Designed for manufacturers and metal processors, this slitting line ensures high productivity, accuracy, and ease of operation. It is ideal for processing various types of steel coils, including carbon steel, stainless steel, and galvanized steel, making it a versatile addition to your production line.

TECHNICIAN DETAILS of Simple Slitting Line

Main parameters

application: CRS, GI and PPGI steel sheet

coil weight :5~10T

Thickness: 0.3-1.5mm

width of coil material: 300-1300mm

coil I.D: ф508

coil O.D: ф1600mm

line speed :0-80m/min

the diameter of slitting blade shaft: ф180

slitting blade: φ180Xφ360X20

material of slitting blade: 9CrSi

the hardness of slitting blade: HRC58°-60°

recoiler I.D of scrap winder: φ420

recoiler I.D: φ508

tolerance of width error: ≤±0.05mm/2M

power:380V/50Hz/3Ph

Q & A Of Simple Slitting Line



What material thickness can you work?

The simple slitting line can work the steel material thickness from 0.3~1.5mm.

The simple slitting line work process

Simple slitting line has the simple working process, as following:

Decoiler--Guiding and leveling--Slitting--Hydraulic shear（optional)---Extension device---Recoiler

What is line speed for simple slitting line?

Simple slitting line working speed is approx. 20 meters per minute.

What types of steel can be processed with this slitting line?

The Simple Steel Coil Slitting Line can handle carbon steel, stainless steel, galvanized steel, and other similar metal coils.

How accurate is the slitting process?

The slitting line ensures high precision with a tolerance of ±0.1mm, depending on material type and thickness.



Do you provide installation and training services?

Yes, we offer installation, commissioning, and operator training to ensure smooth operation.
