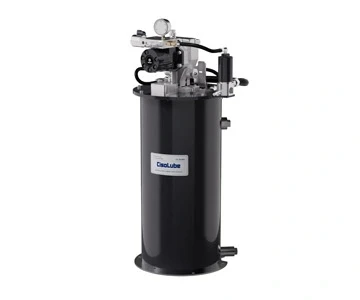

Single-Line Lubrication Systems 2

The automatic single-line lubrication system is the most widely spread total loss lubrication system in the general engineering field.

Small quantities of oil or fluid grease are fed intermittently in the desired cycle time of the lubrication point. Example 5 to 1000 mm³ dosing volume, to 25 bar pressure at lubrication point, for a pump pressure of 25 to 150 bar.

Characteristic of Automatic Single Line Lubrication System

Connecting numerous lubrication points

Smallest dosing quantities

Compact construction

For oil or grease

Cost-effective

Easy assembly

Custom centralized grease lubrication system

CISO Single Line Lubrication System Components

Lubricating pumps

A — C-FLOW Single Line Lubrication Pump

B — LUBESTAR Hydraulic Pump

C — LUBESTAR Electric Pump

D — GTS Single Line Lubrication Pump

E — GMS Lubrication Pump

F — GT-MAX Lubrication Pump

1 — Return solenoid valve assembly

2 — Pressure gauge

3 — Pipelines

4 — Filter

5 — Tee branching pleces

6 — Pipe clamps

7 — Four branching pleces

8 — Grease distributor-Volumetric distributor

9 — Check device（pressure switch）

10 — Line to the lubrication point

11 — Controller

For more information about central lubrication, please feel free to contact us!
