Punching and stamping are two of the common machining processes in a usual modern precision sheet metal contract manufacturing unit. The punch press dies are selected to attain a specific form on a specific area of a certain work piece, while also used to machine an entire work piece. In this blog, we discuss the metal punch press dies and its advantages in brief.
Punching & Metal Punch Press
Punching is performed by placing the sheet metal between a punch and a die mounted in a press. Typically, metal punch press dies are electronically linked to a programmed feeder which feeds metal raw material through the die. The punches pass from side to side the sheet metal while the dies, located on the supplementary side of the metal piece, working as support and helping punches to put more potency ensuring non-breaking of metal.
The press drives the punch alongside and into the die with sufficient force to cut a hole in the work piece. A simple shape is then cut directly from the sheet metal.

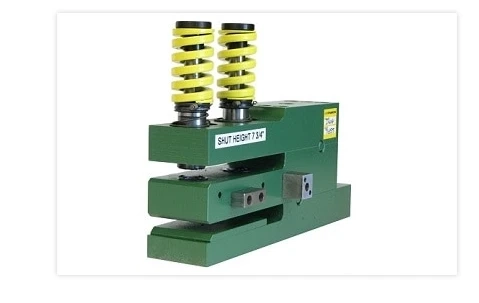

Punching Tools & Dies
The tools and dies of metal punch press dies for sheet metal works can be consistent punches and are typically freely available from several tool manufacturers. The standard punches can produce a standard shape or a special shape at each stroke of the punching machine.
The punch press dies clearly have lower costs than the special press tools. While a CNC punch is not that much efficient for cutting repetitive shapes, and also not much effective in mass production with variable cutting and forming needs.
Progressive Stamping and Progressive Dies
In progressive stamping, the sheet metal stock is mechanically fed into a long die and punch set with several points. Then a progressive die is positioned into a punch press dies. As the press moves up, the topmost die moves with it, which allows the material to feed.
When the press moves below, the die ends and achieves the stamping operation. The sheet metal work piece is unconventional very exactly along the punch press dies as it moves from position to position. The placement condition is usually measured within a few thousandths of an inch.
The metal punch press dies helps in variety of functions that involves blanking, stamping and bending. As compared to punching which is used to get specific features of a portion like adding a hole, the press dies is used to perform on the entire work piece with multiple machining features.
Advantages of Metal Punch Press Dies
- Quality
As metal press dies are typically chosen in the application of progressive stamping, the tools/dies are capable to endure high-volume mass production. The dies are usually made of tool steel to bear the high shock loading involved, hold the necessary sharp cutting edge, and repel the abrasive forces involved. The work excellence is fantastic and the stamping output can realize extreme high level of precision and tight tolerances.
2. Cost-Effectiveness
In terms of total cost of ownership, while initial tooling expenses are needed, metal punch press dies brings the best value as the initial investment in the tool/die can be recovered at mass production.
Conclusion
The sheet metal is molded by an industrial method into thin, flat pieces. Sheet metal can be cut in several ways, from hand tools to very large powered clippers. With the developments in technology, sheet metal cutting has turned to computers for precise cutting. This manufacturing process offers you with an extensive range of holes and forming prospects with negligible lead time and usually with little tooling cost.
