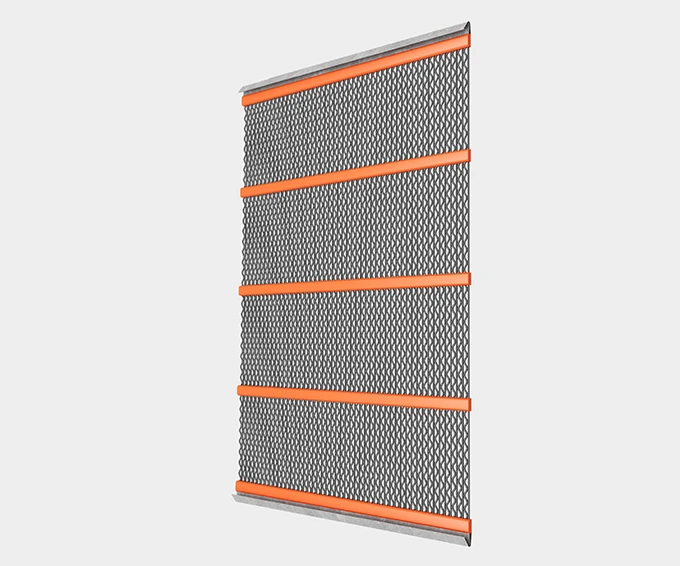

Triangle Opening Self-cleaning Screen

Triangle Opening Self-cleaning Screen

Triangle opening self cleaning screen, is like the diamond opening screen, with an extra straight wire in between every crimped wire which forms the triangle openings on the screen. It is designed to replace traditional fine mesh to better reduce blinding. The structure of triangle mesh wire fabric also reinforces the screen for high impact and heavy load screening.

Specification of Triangle Mesh Wire Fabric

Item No. Opening (mm) Wire Size (mm)

1 1.2 1.2

2 1.3 0.9

3 1.25 1.2

4 1.3 1.2

5 1.4 1.2

6 1.6 1.4

7 1.8 1.2

8 2 1.6

9 2.5 1.2

10 2.5 1.6

11 2.5 2.5

12 2.75 2

13 3.15 2.5

14 4 3.15

15 4.75 3.15

16 4.93 4

17 4.98 3.15

18 5.6 3.15

19 6 4

20 6.35 2.67

21 6.35 3.15

22 7.92 3.15

23 7.94 2.34

24 8 2

25 9 3.15

26 12.5 4

27 12.5 5

28 12.5 6.3

29 14.29 4

30 15.88 4

31 16 5

32 16 6.3

33 20 6.3

Features of Triangle Screen

1

For high impact, heavy load screening

2

Could replace trtaditional fine mesh to betther reduce blinding

3

Last over three times longer than other standard screens

4

Precise sizing

Edge Styles and Hook Types

Hook standard based on ISO 14315

Hook Type

45deg 'V'hook no bands; 45deg 'V'hook with bands; 180deg 'C'hook no bands; 180deg 'C'hook with bands.

Edge Styles

Flat sheet（sheet or in roll）, Bare hook, Band hook and Insert plate hook.

As one of wire screen manufacturers, we will do our best to meet all the needs of customers.
