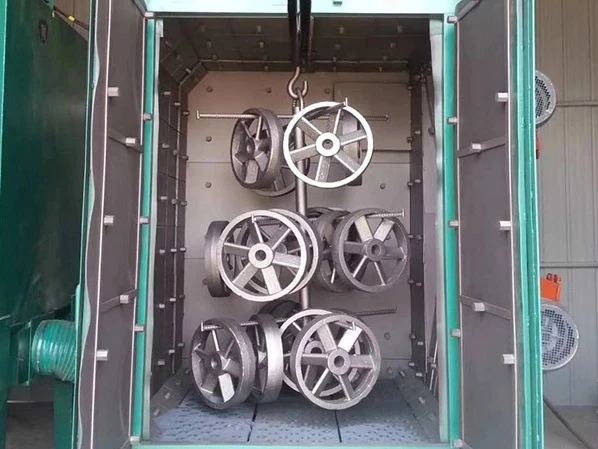

WHEEL SHOT BLASTING MACHINE

The car wheel shot blasting machine, also called the hook shot blasting machine, can manufacture and refurbish the car wheel, and use the hook to perform all-round, high-intensity cleaning and strengthening treatment on the wheel. This unique design can not only effectively remove the oxide scale, rust, oil stains and old coatings on the wheel surface, but also significantly improve the roughness of the wheel surface, laying a solid foundation for subsequent surface treatment (such as electroplating, spraying).

Features of Wheel Shot Blasting Machine

The car wheel shot blasting machine has the following main features:

Professional design

Strong targeting: specially designed for the shape and structure of the car wheel, ensuring uniform cleaning effect and meeting the processing requirements of different types of wheels.

Efficient shot blasting system

Powerful ejection: equipped with an efficient shot blasting impeller, it can evenly eject the shot blasting medium onto the wheel surface at high speed to quickly remove impurities.

Excellent cleaning effect

Uniform surface treatment: can effectively remove the oxide layer, rust and casting sand, etc., to ensure the smooth surface of the wheel, providing a good foundation for subsequent painting.

Efficient recycling system

Resource saving: equipped with an efficient recycling system, it can automatically collect and reuse the shot blasting medium to reduce operating costs.

Easy to operate

Easy to use: the equipment is humanized in design and the operation process is simple, which is convenient for training new employees and improving work efficiency.

The Working Process of Automobile Wheel Blast Equipment

The workflow of cleaning car wheels with a hook-type shot blasting machine usually includes the following steps:

Workpiece preparation

Inspect the wheel: Make sure that the car wheel to be processed has no obvious physical damage.

Load the workpiece: Place the wheel into the chamber of the shot blasting machine by hanging it with a hook.

Set parameters

Select the shot blasting medium: Select the appropriate shot blasting medium (such as steel shot or steel grit) according to the material of the wheel and the cleaning requirements.

Adjust equipment parameters: Set the working parameters of the shot blasting machine, including the ejection speed, processing time and medium flow rate.

Shot blasting process

Start the equipment: Turn on the shot blasting machine and start the shot blasting process.

Workpiece rotation: The wheel rotates under the action of the hook to ensure that the shot blasting medium can evenly cover the entire surface.

High-speed ejection: The shot blasting impeller rotates at high speed to eject the shot blasting medium onto the surface of the wheel to remove the oxide layer, rust and other impurities.

Uniform treatment

Multi-angle impact: The shot blasting medium impacts the wheel from different angles to ensure uniform surface treatment without dead ends.

Recycling system

Media recycling: The cleaned shot blasting media is automatically recycled into the storage box through the collection system and can be reused.

As a shot blasting machine factory, we will do our best to meet all the needs of customers.
