In high-frequency electronics, precision connections determine signal loss or peak performance. Engineers and RF designers stabilize coaxial cable-test board transmission using new connection components. The End Launch Connector matters. Its accuracy, consistency, and longevity enable seamless transmission line-PCB circuit transitions, preserving signal integrity at high frequencies.
Microwave, RF, and laboratory specialists use customized connectors since standard ones may fail. Quality connectors reduce reflections, insertion loss, and impedance instability. These features are crucial for research labs, telecom systems, aerospace electronics, and precision measurement.
1.85 End-Launch Connection Gains

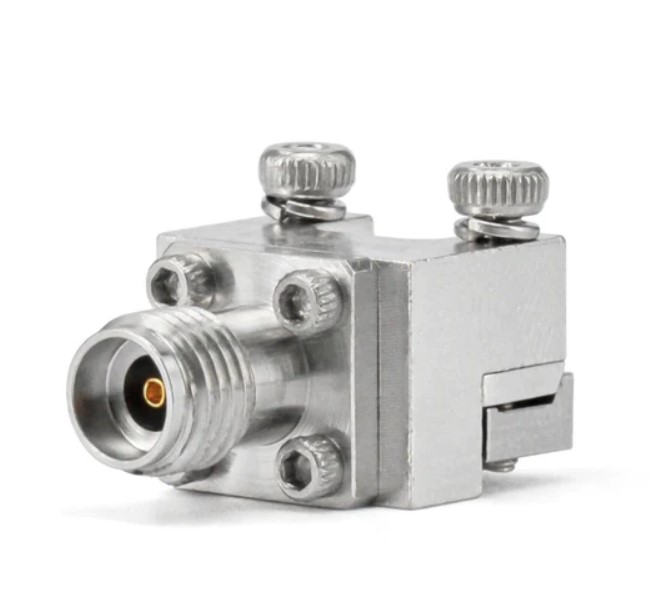

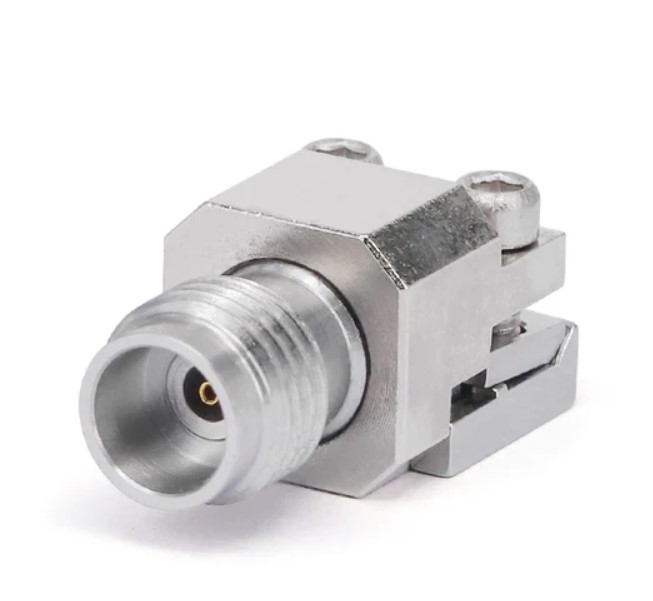

High bandwidth and low distortion applications benefit from the 1.85 end launch connection. For severe settings, this connector provides high-frequency ranges with electrical accuracy. Its design lets engineers easily mount it on test boards.
Solder-free clamping is a big feature. This design makes installation easier and protects fragile circuit boards from heat. Board thickness flexibility helps prototype testing and production. This flexibility benefits professionals who frequently change board layouts.
Benefits include reusability. After testing, connectors can be removed, altered, and replaced, making them cost-effective for long-term usage. They sustain electrical performance throughout applications, crucial for accurate measurements.
Select the Right End Launch Connector
Choosing the correct End Launch Connector requires electrical and mechanical knowledge. Engineers must consider board thickness, launch geometry, grounding, and frequency range. When used with a coplanar waveguide or microstrip, these connectors maximize signal transfer and minimize interference.
Compatibility matters. High-frequency connectors must preserve cable-to-board impedance. Reflections from minor mismatches may lower performance. Therefore, premium connectors with tight tolerances and accuracy testing are needed.
Construction quality impacts dependability. Precision-machined materials and strong mechanical fastening ensure solid connections under tough situations. In lab testing and production validation, reliable connectors let engineers focus on results.
Suitable for Modern Testing
Electrical testing today requires components that can respond to rapid technological change. Connectors must work effectively without adding complexity as frequencies climb and circuits shrink. The 1.85 end launch connector meets these goals with good electrical characteristics in a small package.
Its architecture lets users measure paired devices before deployment to test the connector performance. This function accelerates testing and setup. These connections are useful in fast-paced labs with frequent configuration changes and are easy to install.
For businesses, Gwave Technology supplies professional RF connectivity components. Their products meet demanding applications at low prices and fast delivery. Fast assistance and uncommon technical solutions are offered.
Helpful for Designers and Engineers
High-frequency projects have tight deadlines and performance requirements. Reliable connectors boost efficiency, troubleshooting, and measurement. The End Launch Connector helps achieve these goals by providing dependable signal channels and consistent electrical results.
For reliable operation, Gwave Technology offers connectors and precision cable assemblies. Testing and production connections are complete with compatible accessories and high-quality connections.
The right connector should provide long-term performance, dependability, and efficiency, not just compatibility. Engineers may design systems with accurate outcomes, signal integrity, and innovation in complex electronic applications by integrating well-engineered solutions like the 1.85 end launch connection.
