Industrial Microwave Transitions refers to the transition or conversion between different waveguide apertures, which is used for measurement, testing, transition, mode conversion, signal transmission and so on. Industrial Microwave Transitions can connect with both double-ridge waveguide and rectangular waveguide, with low insertion loss and high matching during connection.
FAQs of Industrial microwave tuner
Application of Industrial microwave tuners

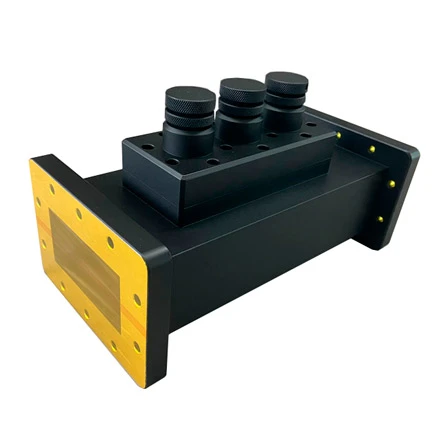

Industrial slide screw tuner is a common impedance adjust. The depth, spacing and radius of the pins can be set as required. It is a common device for impedance matching in high-power microwave systems.
Work Principle of Industrial mw antenna tuner
When a metal pin of a certain diameter is inserted along the center of the broad side in the waveguide, its equivalent circuit is parallel susceptance. When the insertion depth of the pin is shallow, the pin mainly acts as a concentrated electric field, and the equivalent susceptance of the pin is capacitive. As the insertion depth of the pin increases, the capacitance increases, and at the same time, the axial current on the broad side of the waveguide flows along the axial direction of the pin, thereby generating a magnetic field and making the pin have a certain inductance. LC series loop on the main line. The resonance of the pin is related to the operating wavelength, insertion depth and width of the narrow side of the 3 stub tuner microwave.
We can also provide kinds of waveguide parts for sale, if you are interested, please contact us.
There are many microwave waveguide manufacturers, but we are one of the best choices for you.
