Boosting Machining Efficiency with 5-Axis Vise and Hydraulic Vise Solutions

In today’s competitive manufacturing environment, maximizing machining efficiency is no longer optional—it’s essential. Whether you're running a high-mix, low-volume job shop or operating a large-scale production line, the need for reliable, accurate, and adaptable workholding solutions has never been greater. Among the most powerful tools in this domain are the 5-axis vise and the hydraulic vise. These innovative clamping devices are transforming how parts are held during CNC machining, enabling greater flexibility, shorter cycle times, and improved precision.

This article explores how 5-axis vise and hydraulic vise solutions can enhance your machining capabilities, their key benefits, and why investing in high-performance workholding is a strategic move for any modern workshop.

The Demands of Modern Machining

As components become more complex and tolerances tighter, traditional workholding methods often fall short. CNC machines, especially multi-axis systems, demand vises that offer unrestricted access to the workpiece, exceptional holding strength, and fast setup times.

Traditional vises typically limit tool accessibility, requiring multiple setups and increasing the risk of alignment errors. In contrast, the 5-axis vise and hydraulic vise are purpose-built to handle these challenges, offering superior performance in demanding manufacturing environments.

Why the 5-Axis Vise is a Game-Changer

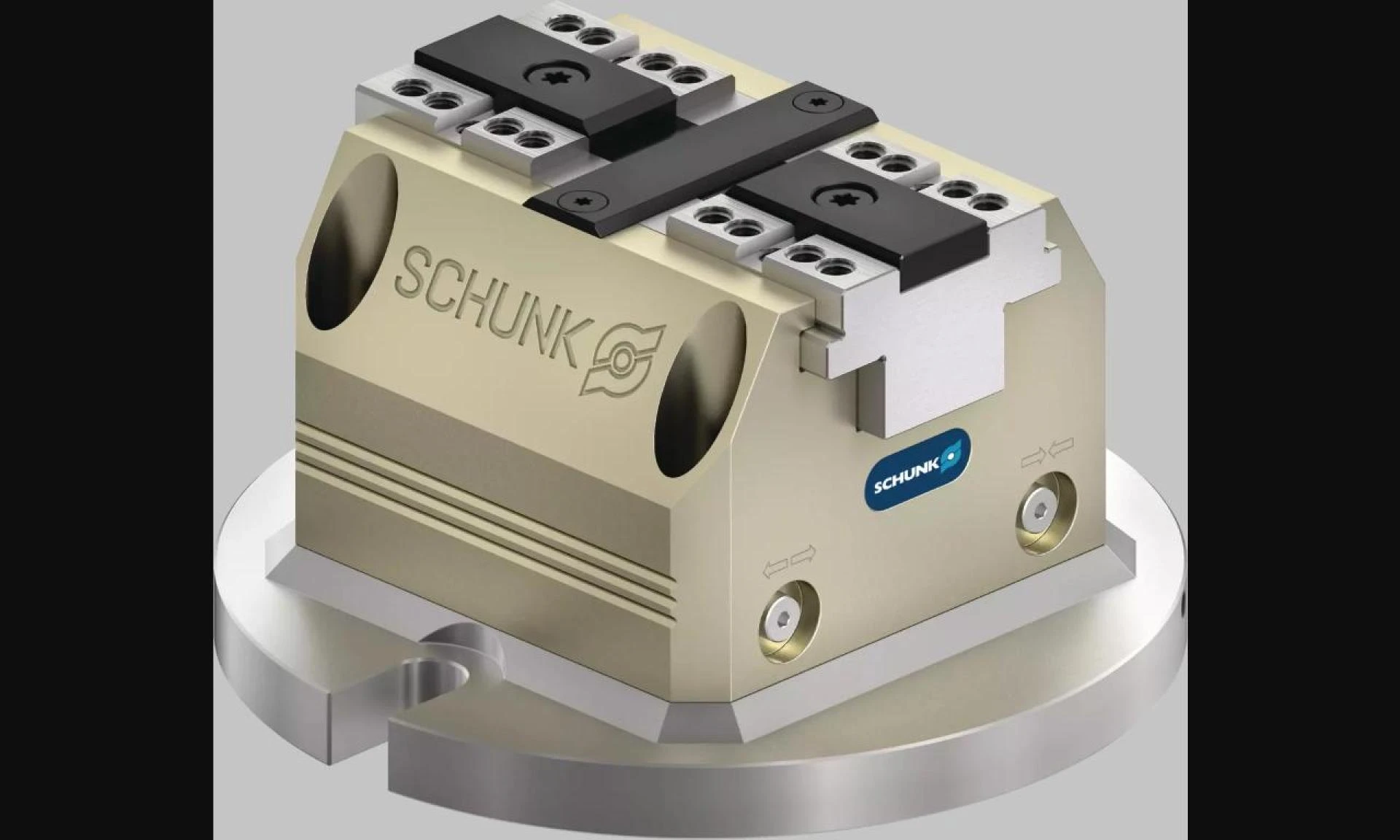

The 5-axis vise is specifically designed to work with 5-axis CNC machines, which allow for machining on multiple planes without repositioning the workpiece. These vises feature a low-profile design and minimal interference, enabling the cutting tool to reach almost every surface of the part in a single setup.

Key Benefits of a 5-Axis Vise:

• Unmatched Accessibility: The compact design ensures minimal obstruction, allowing full access to the workpiece for simultaneous multi-axis machining.
• Fewer Setups: Reduces the number of repositions needed, minimizing downtime and human error.
• Improved Accuracy: Single-setup machining leads to better consistency and tighter tolerances.
• Reduced Cycle Time: With fewer handling steps, overall machining time is significantly decreased.

A well-designed 5-axis vise also supports secure clamping even with minimal surface contact, which is crucial when dealing with complex geometries and delicate parts.

The Power of the Hydraulic Vise

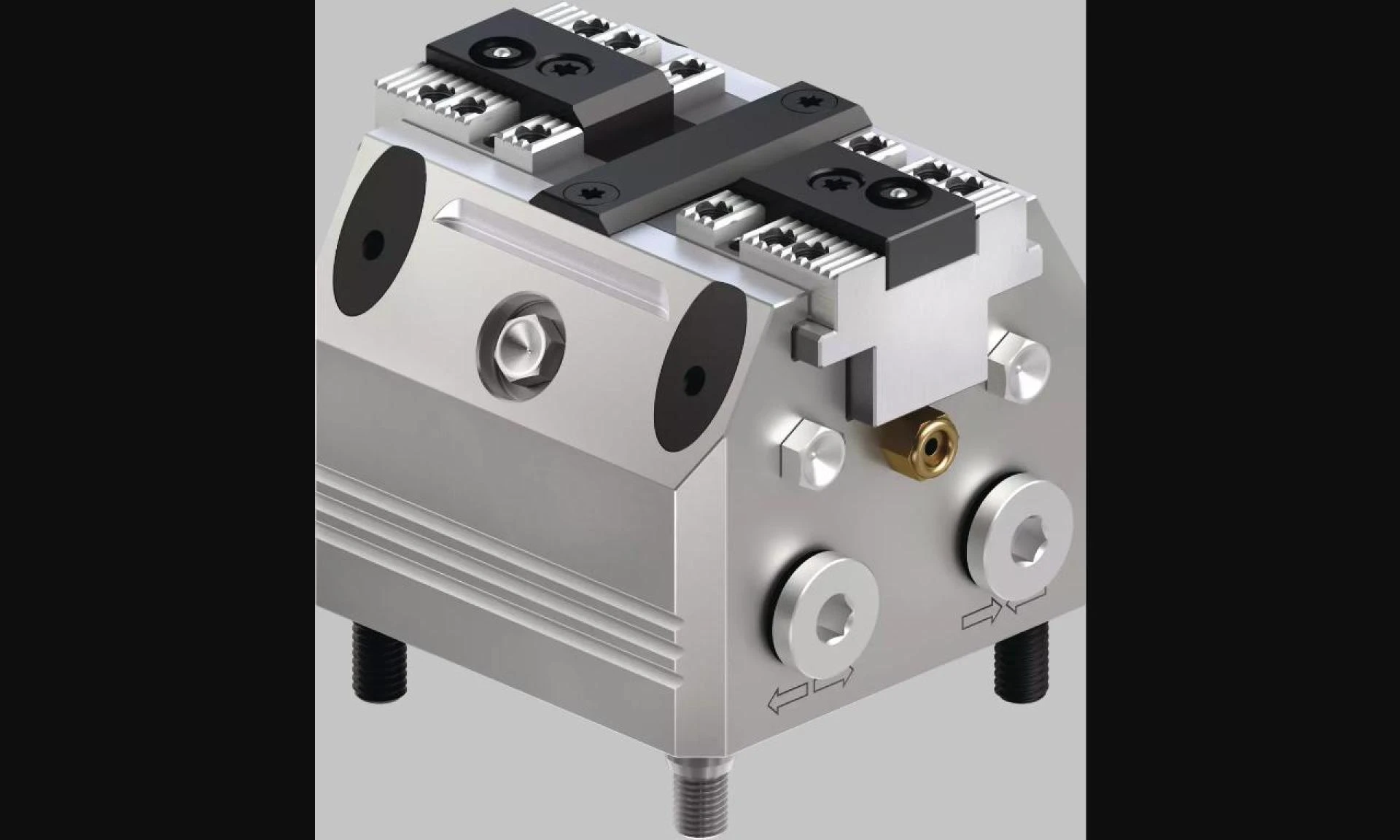

The hydraulic vise is known for its powerful clamping force and automation-friendly features. It uses hydraulic pressure to apply a consistent, repeatable force to the workpiece, making it ideal for both high-volume production and precision machining.

Advantages of Using a Hydraulic Vise:

• Consistent Clamping Force: Delivers uniform pressure every cycle, reducing variation and improving quality.
• Time Efficiency: Fast clamping and unclamping reduce operator intervention and increase throughput.
• Operator Safety: Eliminates the need for manual tightening, lowering the risk of injury.
• Automation Compatibility: Integrates easily into automated systems, robotic arms, and pallet changers.

The hydraulic vise shines in environments where productivity and repeatability are crucial. It’s especially effective in setups involving repetitive tasks or when dealing with heavy or irregular-shaped workpieces that require strong clamping.

Also Read :-The Science Behind Torque Sensor and Force Sensors in Robotics Applications

Combining Both for Maximum Efficiency

While the 5-axis vise excels in precision, accessibility, and multi-surface machining, the hydraulic vise dominates in high-volume, high-force applications. In advanced manufacturing setups, using both types of vises strategically can drastically enhance your overall workflow.

For example, a shop may use a 5-axis vise during the prototyping phase or for complex parts requiring fewer setups. Meanwhile, during production runs, the same shop might switch to a hydraulic vise for consistent, high-speed machining of simpler parts or features.

This dual-approach not only leverages the strengths of both systems but also gives manufacturers the flexibility to adapt to varying project requirements without sacrificing efficiency or accuracy.

Considerations When Choosing Workholding Solutions

To ensure you're choosing the right 5-axis vise or hydraulic vise, keep the following factors in mind:

• Machine Compatibility: Ensure the vise matches the mounting system and travel range of your CNC machine.
• Workpiece Geometry: Complex geometries may benefit more from the open design of a 5-axis vise, while bulky parts may require the strength of a hydraulic vise.
• Production Volume: For repetitive, high-volume jobs, hydraulic vises offer greater efficiency.
• Material Type: Harder materials may demand the higher clamping force of a hydraulic vise, while delicate parts benefit from the precision of a 5-axis vise.
• Automation Goals: If you plan to implement lights-out manufacturing or robotic loading, hydraulic vises are better suited due to their automation compatibility.

The Future of Workholding in Smart Manufacturing

As smart factories and Industry 4.0 technologies become the norm, both 5-axis vise and hydraulic vise systems are evolving to meet new challenges. Integration with sensors, real-time monitoring, and smart controls are being developed to improve clamping reliability and provide feedback to machining systems.

These advancements are enabling predictive maintenance, faster changeovers, and seamless communication between machines and workholding devices. Ultimately, the goal is to make workholding just as intelligent as the machines doing the cutting.

Conclusion

When precision, reliability, and innovation are your priorities, turn to a name that professionals across the globe trust—Schunk. With decades of experience in clamping technology and automation components, Schunk offers a wide range of advanced 5-axis vise and hydraulic vise solutions tailored to the needs of modern machining.

Schunk’s products are engineered for maximum durability, performance, and adaptability, helping manufacturers boost productivity without compromising quality. Whether you're machining aerospace components, medical devices, or high-volume automotive parts, Schunk provides the perfect balance of technology and practicality.

Choose Schunk and experience the next level of machining efficiency—powered by precision and built for performance.
