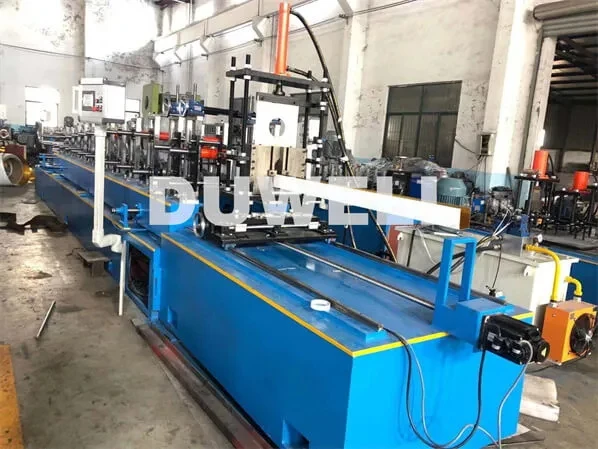

CEILING ROLL FORMING MACHINE

DUWELL false ceiling channel manufacturing machine can make the C profile ceiling baffle with adjustable sizes 20~200mm width and 20~200mm height in one machine, both for aluminum and steel material. With thickness range 0.3~1.2mm. And adjust the sizes automatically. The customer just need set the width and height size on the controller, the machine will change the sizes automatically. The machine with universal cutting device, no need change cutting tool when change sizes. The working speed is approx. 60metersper minute.

DUWELL can make different type of false ceiling channel machine. Most common ceiling profiles includes C profile ceiling baffel machine, 84R/84F leaner ceiling forming machine,150F ~300F leaner ceiling machine. And all kinds of custmized ceiling profiles.

Our gypsum channel making machine is a high-precision, automated solution designed for the efficient production of ceiling profiles used in suspended ceilings, partition systems, and decorative paneling. This machine is engineered to deliver consistent quality, high-speed production, and durability, making it ideal for manufacturers of metal ceiling components.

Key Features:

✔ High-Speed Production – Capable of producing up to 25-30 meters per minute, ensuring high output for large-scale projects.

✔ Precision Roll Forming – Equipped with hardened steel rollers for accurate shaping and long-lasting performance.

✔ Adjustable Design – Easily adjustable for different ceiling profile sizes and thicknesses (typically 0.3mm–1.2mm).

✔ Automatic Cutting System – Hydraulic or servo cutting ensures clean, burr-free cuts with precise length control.

✔ PLC Control System – User-friendly interface for easy operation, length setting, and production tracking.

✔ Durable Construction – Robust frame and high-quality components ensure minimal maintenance and long service life.

✔ Multi-Layer Ceiling Profiles – Can produce T-grid profiles, main runners, cross tees, and edge trim for complete ceiling systems.

TECHNICIAN DETAILS of Ceiling Roll Forming Machine

Working process

5 ton decoiler —→ Guidin—→Roll-forming Machine —→Adjusting —→ Hydraulic cutting—→ Run out table

Machine parameters

5 ton decoiler

Manual decoiler: hydraulic expanding.

Capacity: Max. 5 tons

Expanding range: ф480-520 mm ( can be made according to customer’s requirement)

Roll forming machine

Suitable plate of the rolling: Aluminum or steel , with thickness 0.3~1.2mm,

Working speed: 50~60 meters/min

Forming stations: 18 stations

Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62

Material of principal axis: #45 advanced steel

Main machine power: 7.5 KW

Control system: The whole machine is controlled by PLC system

Other customized ceiling profile roll forming machines from DUWELL

Open cell ceiling roll forming machine

84R / 84C linear ceiling roll forming machine

150F/150C/300C linear ceiling roll forming machine

Q & A Of Ceiling Roll Forming Machine



How to change different sizes in the roll forming machine?

The customer just need enter the web and flange sizes on the controller screen. The machine will move sizes automatically.



What materials can this machine process?

The machine is designed to work with galvanized steel, aluminum, and pre-painted steel coils (typically 0.3mm–1.2mm thick).



What kind of cutting system does it use?

We offer hydraulic punch cutting or servo cutting for precise, smooth cuts without deformation.



Is the machine easy to operate?

Yes, it features a PLC control panel with a touchscreen for easy setup, length adjustment, and production monitoring.

What is your machine speed?

The working speed is 50~60 meters/min, according to the cutting length.



Can the machine be customized for special profiles?

Absolutely! We can design and manufacture custom roll forming dies to produce unique ceiling profiles based on your specifications.



Do you provide after-sales support and training?

Yes, we offer installation guidance, operator training, and technical support to ensure smooth operation.
