Rating is not a personality
A larger surge number does not make a sloppy install safe. High-surge digital earthing still fails if the lead is long, if the data cable is bare, or if the unit is bonded to a different pit from the power protector. The high-surge range is for energy. The drawing is still for the zone.
A simple exposure test
Count storm-week failures over two seasons. If the count is zero, stay on the standard VKP-1-AC or VKP-03-AC and spend the money on the data-door protectors. If the count is repeated, step to high-surge and still buy the data-door protectors. Exposure does not close the open door.
Indoor finish versus outdoor body
Premium enclosures in the premium models are for boards that live in a room. They are not a shortcut for a shelter. A shelter uses the outdoor models even when the surge rating is the thing you came to buy. Match the body to the weather. Match the rating to the storm log.
What the publisher can safely say
Say the device gives the electronics a low-impedance reference and a higher energy margin. Do not invent a certification the page does not show. Do not say it replaces a lightning protection system on the structure. The structure still needs its own path. The board still needs its own clamp and earth.
Next step
One paragraph to Rasnal: district, phase, indoor or outdoor, and whether cards already die in storms. That is enough for a sketch. The catalogue lives at rasnal.com.
Buy the scar you already have. Do not buy a number you cannot point at on the feeder log.
Some sites do not fail once a year. They fail every storm. Eastern and central India, long overhead feeders, hill roads, coastal belts: the same board sees repeated impulses. A standard digital grounding device can be the right idea and the wrong energy rating.

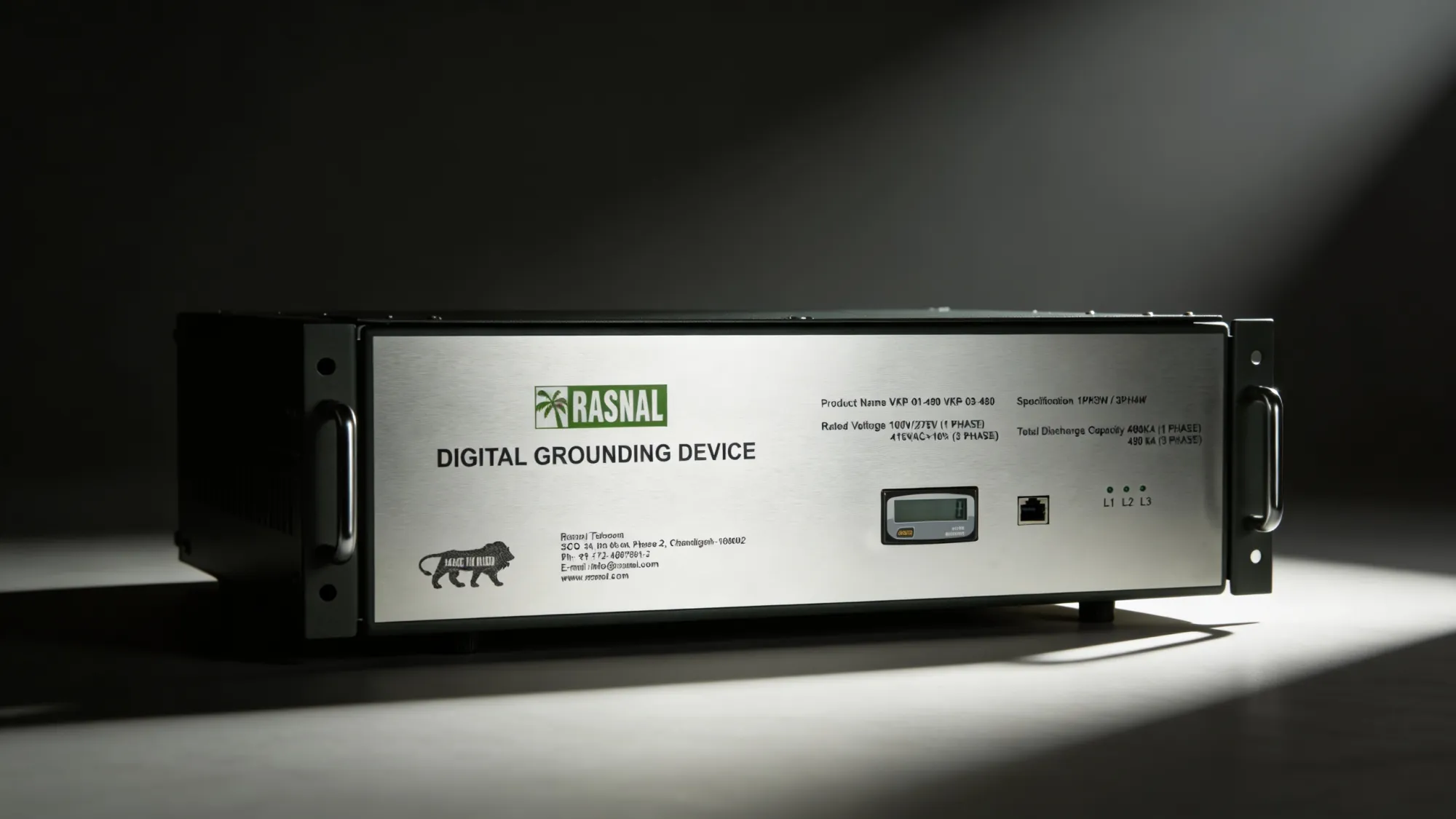

High-surge digital earthing is the same job with more room for the spike. Rasnal’s high-surge models extend the VKP platform for 1-phase and 3-phase boards where lightning frequency or equipment sensitivity is already proven, not guessed.
How to tell you are in that category
You have more than one “mystery” card death in a season. The earth report was fine. The feeder log shows trips on storm days. Cameras on outdoor copper die on the same afternoon as a drive. A lightning rod is on the roof and the electronics still fail. That last point matters. The rod protects the structure. The cable protects nothing unless it has its own clamp and a stable earth.
What not to do
Do not stack three small units and call it a design. Do not put the high-surge unit on a different pit from the surge protectors. Do not skip the data door because the power door has a bigger device. The pulse will use the door you left open.
Pair the unit with the right phase. Single-phase shelters stay on the VKP-1-AC family unless the exposure forces a high-surge 1-phase variant. Three-phase plant boards stay on the VKP-03-AC family, with the high-surge 3-phase unit where the storm history justifies it.
Outdoor shelters should not use an indoor enclosure because the rating looks larger. Use the outdoor range when the device itself sits in weather.
A clean spec line
“Electronics zone: one digital earthing reference, high-surge rating, bonded to power and data surge devices, measured after the first storm.” That sentence is more useful than a brand list.
Rasnal will turn it into a one-page sketch if you send site type, supply and exposed cables via contact. Product context lives at rasnal.com.
Buy the rating the site has already earned. Do not buy it because a catalogue page looked serious.
