Kitchen ventilation plays a critical role in maintaining indoor air quality, especially in homes where exterior ductwork is not practical. An under cabinet range hood recirculating system is specifically designed for these situations by filtering cooking air and returning it back into the kitchen instead of exhausting it outdoors. This makes it a practical solution for apartments, condominiums, townhouses, and kitchen remodels where installing ductwork may not be feasible.

Unlike traditional ducted ventilation systems, an under-cabinet range hood recirculating model relies on a multi-stage filtration process to remove grease particles, smoke, and cooking odors. Modern units combine powerful blower motors with reusable grease filters and activated charcoal filters to improve air quality while maintaining a compact design that fits beneath existing cabinets. Understanding the technical operation of these systems helps homeowners select the right ventilation solution for their cooking habits and kitchen layout.

What Is an Under-Cabinet Range Hood Recirculating System?

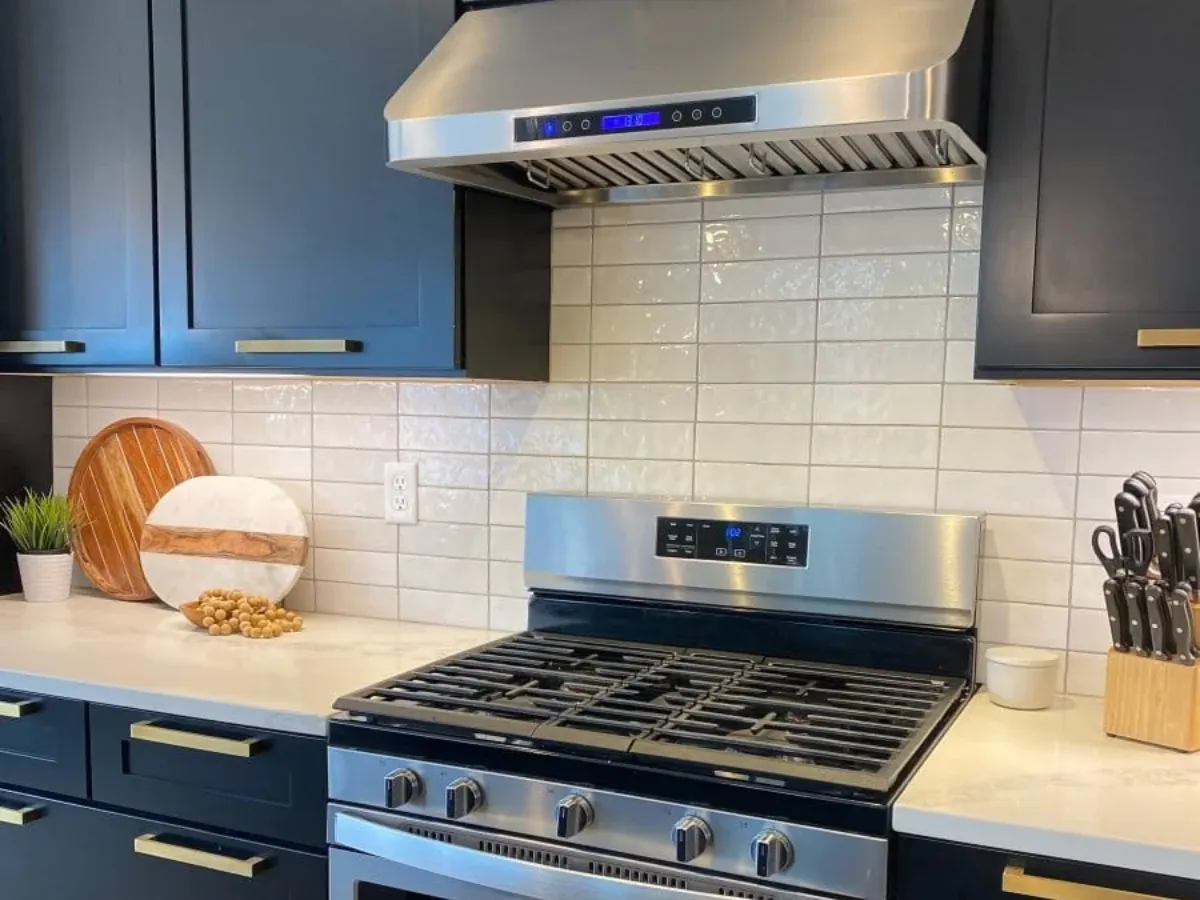

An under cabinet range hood recirculating system is a ventilation unit installed beneath overhead cabinets that cleans kitchen air instead of venting it outdoors.

Its primary functions include:

• Capturing smoke from cooking
• Removing airborne grease
• Reducing cooking odors
• Filtering fine airborne particles
• Returning cleaned air back into the kitchen

Because no exterior duct is required, installation is often simpler than with traditional ducted systems.

How the Air Filtration Process Works

Every under-cabinet range hood recirculating system follows a similar sequence during operation.

Step 1: Air Intake

The blower motor draws smoke, steam, grease, and odors upward from the cooking surface into the hood.

Step 2: Grease Filtration

The first stage of filtration captures grease particles using stainless steel baffle filters or aluminum mesh filters. These reusable filters prevent grease from entering the blower assembly and help maintain efficient airflow.

Step 3: Charcoal Filtration

After grease removal, air passes through activated charcoal filters. These filters absorb odors and reduce airborne contaminants before the cleaned air is released back into the kitchen.

Step 4: Air Recirculation

The filtered air is discharged through vents located on the front or top of the hood, completing the recirculation process.

Understanding Airflow (CFM)

Airflow is measured in Cubic Feet per Minute (CFM) and determines how effectively an under-cabinet range hood recirculating system filters kitchen air.

General recommendations include:

• 300–500 CFM for light cooking
• 500–700 CFM for everyday residential use
• 700–900 CFM for frequent cooking
• Higher airflow for larger kitchens and gas cooktops

Proper CFM selection improves filtration efficiency while maintaining comfortable noise levels.

Choosing the Right Filter System

Filter quality has a direct impact on the performance of an under cabinet range hood recirculating unit.

Common filtration components include:

• Stainless steel baffle filters
• Aluminum mesh grease filters
• Activated charcoal odor filters
• Multi-layer filtration systems

While grease filters are washable and reusable, charcoal filters require scheduled replacement because their odor-absorbing capacity gradually decreases with use.

Installation Requirements

Although these systems eliminate exterior ductwork, proper installation remains essential.

Important considerations include:

• Matching hood width to cooktop size
• Maintaining recommended mounting height
• Providing adequate electrical supply
• Ensuring sufficient cabinet clearance
• Following manufacturer installation guidelines

Correct installation allows unrestricted airflow and improves overall system performance.

Maintenance Schedule

Routine maintenance helps maximize the lifespan of an under-cabinet range hood recirculating system.

Recommended maintenance includes:

• Cleaning grease filters every few weeks
• Replacing charcoal filters as recommended
• Cleaning the hood interior
• Wiping exterior stainless steel surfaces
• Inspecting the blower for debris
• Checking fan operation periodically

Neglecting filter maintenance can reduce airflow efficiency and increase motor workload.

Where Recirculating Systems Perform Best

An under-cabinet range hood recirculating model is commonly installed in:

• Apartments
• Condominiums
• Townhomes
• Rental properties
• Basement kitchens
• Remodeling projects without access to exterior venting

These systems provide dependable ventilation where conventional ducted installations are not possible.

Conclusion

At Proline Range Hoods, we engineer ventilation solutions that combine advanced filtration, efficient airflow, and durable construction for a wide range of residential kitchens. Selecting the right under-cabinet range hood recirculating system involves evaluating airflow capacity, filter technology, maintenance requirements, and installation compatibility to achieve reliable long-term kitchen ventilation.
