A strong PCB assembly depends on countless small details, and soldering is one of the most important. Even a tiny solder joint can determine whether an electronic device performs reliably or develops problems later. So, how does flux improve solder joint quality in PCB assembly?

Quick answer: From reducing oxidation to improving solder wetting and helping create stronger connections, flux plays a vital role in achieving consistent soldering results.

In this blog, we'll explore how flux works, why it matters, and how proper flux selection and application can improve the reliability of modern PCB assemblies.

The Role of Flux in Creating Strong, Reliable Solder Joints

What Is Flux in PCB Assembly?

Flux is a chemical compound used during soldering to prepare metal surfaces for a reliable bond. During soldering, metal surfaces can develop oxides that prevent molten solder from spreading evenly. Flux helps remove or reduce these oxides and supports better solder wetting.

In simple terms, think of flux as a preparation step before joining two surfaces. Even if the solder and PCB are high quality, oxidation or contamination can interfere with the connection. Flux helps create the conditions needed for the solder to flow where it should.

Common types of flux used in PCB assembly include:

• Rosin flux: Traditionally used for many electronic soldering applications.
• Water-soluble flux: Offers strong cleaning action but generally requires post-solder cleaning.
• No-clean flux: Designed to leave minimal residue and reduce or eliminate cleaning requirements in suitable applications.

Choosing the right flux depends on the PCB material, components, soldering method, and required reliability.

How Does Flux Improve Solder Joint Quality?

The answer isn't limited to one benefit. Flux supports several critical stages of the soldering process.

1. Removes Oxidation

Oxidation is one of the biggest enemies of reliable soldering. When copper pads, component leads, or other metal surfaces oxidise, solder may struggle to bond properly.

Flux chemically reacts with surface oxides, helping expose cleaner metal underneath. This allows molten solder to make better contact with the surfaces being joined. The result? A more uniform and dependable solder connection.

2. Improves Solder Wetting

Good solder wetting means the molten solder spreads smoothly across the pad and component lead rather than forming an uneven blob.

For example, imagine a small resistor being placed on a PCB. If the solder doesn't fully wet the pad, one side may have insufficient coverage, creating a weak electrical or mechanical connection. Flux helps the solder spread across the intended surfaces, improving joint formation.

This is particularly important in SMT assembly, where components are small, and solder volumes are carefully controlled.

3. Helps Prevent Soldering Defects

A well-managed flux application can help reduce common PCB soldering problems, including:

• Poor wetting
• Incomplete solder joints
• Uneven solder distribution
• Oxidation-related bonding issues
• Certain types of solder bridging

Of course, flux isn't a magic fix. Solder paste quality, stencil design, component placement, PCB surface finish, and reflow temperature profiles all matter. But using the correct flux chemistry gives the soldering process a much better foundation.

Flux and Reflow Soldering: Why the Process Matters?

In modern PCB assembly, solder paste typically contains flux and is applied to PCB pads before components are placed. The assembled board then passes through a reflow oven, where carefully controlled temperatures activate the flux and melt the solder.

The reflow profile needs to be properly matched to the solder paste and PCB design. Too little heat may result in incomplete melting of the solder, while excessive heat can damage components or the board.

A typical process involves:

1. Applying solder paste to PCB pads.
2. Placing components accurately.
3. Heating the PCB through controlled reflow zones.
4. Activating the flux to support solder wetting.
5. Melting and solidifying the solder.
6. Inspecting the finished solder joints.

This is why process control is just as important as choosing the right flux.

Practical Tips for Better Solder Joint Quality

For manufacturers aiming to improve PCB assembly reliability, consider these practical points:

• Select flux according to the application, PCB surface finish, and soldering process.
• Control the reflow temperature profile according to the solder paste manufacturer's recommendations.
• Avoid excessive flux residues, especially where cleanliness and long-term reliability are critical.
• Store solder paste correctly to maintain its performance.
• Use inspection methods such as AOI to identify soldering defects early.

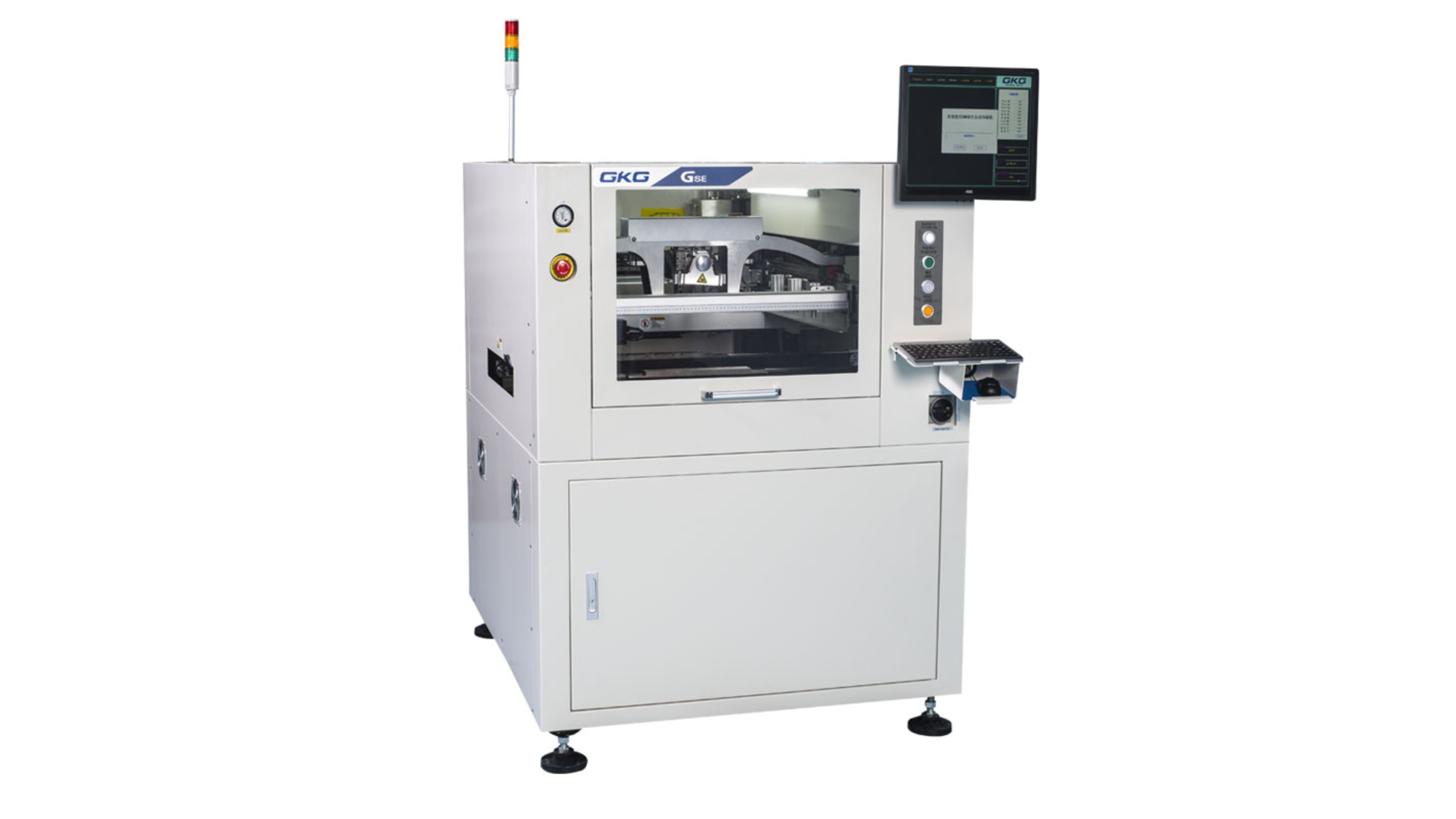

• Maintain accurate stencil printing to achieve consistent solder paste deposition.

A small change in process control can sometimes make a surprisingly large difference. For instance, if solder joints repeatedly show poor wetting, the issue may not be the components themselves. It could be related to flux activation, oxidation, or an unsuitable thermal profile.

Final Thoughts

Flux plays a crucial role in PCB assembly by helping remove oxidation, improving solder wetting, and supporting stronger, more consistent solder joints. When combined with precise SMT processes, controlled reflow soldering, and effective inspection, it becomes an important part of reliable electronic manufacturing.
