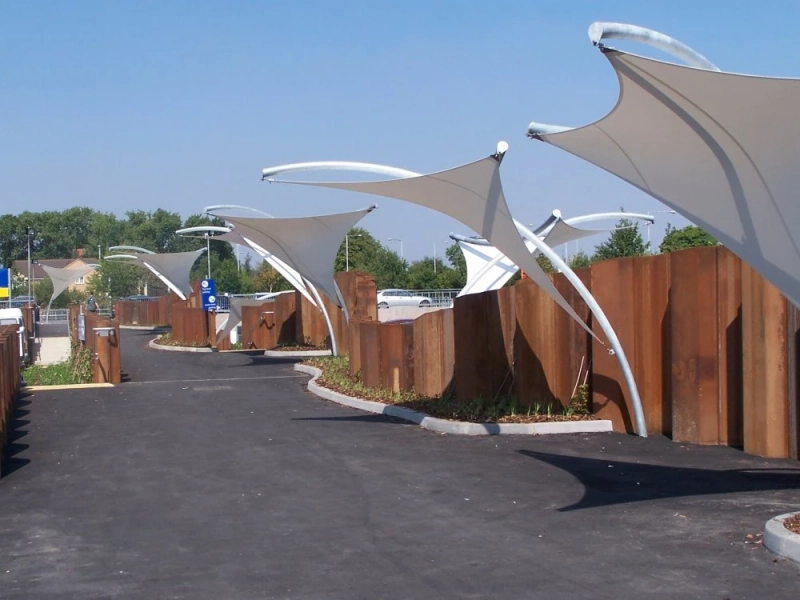

When you read about a gracefully curved tensile membrane structure such as a flying stadium roof or a covered tensile walkway structure or a fancy royal tensile structure, the natural question that arises is, "How in the heavens can something as lightweight and fabric-like be able to withstand such punishing winds and heavy loads of snow?" Not in brute strength is the solution to this question found, but in the intelligent design and the most basic laws in form and physics. Now, we will dive into the engineering that enables them to be supported against the elements.
The First Central Value: Form is Power
Tensile structures are based on the power of tension, as opposed to compression structures (such as concrete domes) of the traditional type. The tension of the fabric membrane is preset; that is, it is pulled tightly in various directions over a frame (masts, cables, arches). This gives a constantly maintained tension, which is really effective in the distribution of forces. Think of it like a trampoline. The tension in the mat and the springs distributed the force all over the surface when you jumped. A tensile structure is similar but designed for much higher and more complicated loads.
Flexibility and Aerodynamics: Conquest of the Wind
Wind is a force that acts dynamically and upwards. A hard, flat roof may serve as a sail, and it will take the wind and may bombard failure of uplift. The tensile membranes are brilliantly constructed to handle the wind and not fight it.
Double-Curved Shapes: The most celebrated shapes are the saddle-shaped (hyperbolic paraboloid) one and the cone-shaped form. These curves permit the wind to flow around the structure and over it effortlessly, which greatly lowers the wind pressure and drag against the structure, which would have been the case with flat surfaces. In the case of the tensile car parking canopy, this shape will keep the canopy from appearing like a giant kite.
Moving: The structure of high-quality tensile membrane structures is meant to move when it is under extraordinary wind loading. This is not a disadvantage but an attribute. The membrane may also billow and readjust where the energy may be released in minimizing the stress points of the peaks. Just imagine a sail beating in the wind—it is a vent.
Intense Examination
Engineers employ sophisticated computer fluid dynamics (CFD) software to simulate wind patterns in the site. To estimate pressures and shape the construction in such a way that the negative lift (uplift) is minimized to prevent instability, they test every single angle of the wind.
Getting Rid of the Snow: The Sliding Roof Effect
Accumulation of snow is a dire burden. Geometry and material science fight against tensile structures.
- Steep Slopes: The surfaces are designed to be steep, which is almost always double-curved. Snow will not easily stick to such sloping surfaces, which are slick. Gravity simply pulls it off. This is very vital, especially in long structures where accumulation of snow would be disastrous.
- Low-Friction Membranes: Materials such as PTFE (Teflon-coated fiberglass) or coated sections of some PVCs all have very low surface friction. This, together with slope, promotes the sliding away of the snow before it forms any threat of forming thick amounts. A fabricated tensile walkway structure will make sure that the snow moves away to the left and right, keeping the pathway clear and safe.
- Heat: Lots of membrane materials are clear. When there is a sunny day, the rays shine in and heat the building and interior air. This mild heating may be used to melt the bottom layer of the snow to loosen its attachment to the cloth and in the process of sliding off.
The Supporting Cast: Cables, Connections, and Foundations
The housing cannot be stronger than the membrane is. Teamwork in the system:
- High-Strength Cables: Edge cables, ridge cables, and valley cables make up a network that supports the membrane and redistributes its loads.
- Precise Pretension: In the process of the installation, the membrane is pre-tensioned to a specific engineering value. It is this initial tension that enables the system to take other live loads (wind, snow) without becoming loose or flickering.
- Strong Recurrent Foundations: All the tension forces become integrated into the foundations. The anchors and any footings used, be it a minimalistic royal tensile structure in a hotel courtyard or an enormous overhead airport canopy, are massively over-engineered against pull-out forces so that the entire system does not pull out.
Material Matters: The Cloth of Resilience
The selection of the membrane is important. Modern materials like:
- Fiberglass: PTFE: It has outstanding strength, is non-combustible, is self-cleaning, and is very strong against weather and UV degradation. Applied to permanent iconic buildings.
- PVC-Polyester: It is reasonably priced, flexible, and it comes in numerous colors. Top finishes are UV-proof and welded. Best when used in tensile car parking and mid-term.
- ETFE Foil: This is not a fabric, just a fluorine-based plastic film commonly used in cushions filled with air. Very lightweight and very transparent and durable.
These materials are designed based on tensile strength (resistance against tearing), dimensional stability (reducing stretch), and environmental resistance.
Introduction: Aspects of Design
A tensile membrane structure does not resist the wind and snow because it is the heaviest and thickest, but rather because it is the smartest. It’s a perfect synergy of:
- Form-finding (loads honing),
- Advanced material science,
- Dynamic analysis (snow/wind),
- Accuracy engineering (in cables and connections).
Since it can be used to offer a tough covering to a tensile car parking facility and to design the stunning beauty of a royal tensile structure entry, this technology demonstrates that it is something that is strong, lightweight, and tough. It is a natural, architectural structure that does not struggle with nature but sails with it.
