The 40-channel AWG card is the ideal device for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers.
The single fiber unidirectional passive pluggable 40-channel AWG optical card of Sintai Communication Co., Ltd has two function modules. AWG multiplexer board: it supports the multiplexing of 40-channel optical signals of WDM standard wavelength into a one-core optical fiber for unidirectional transmission.
De-multiplexer board: it divides the mixed optical signals transmitted by multiplexing board at the opposite end into the original multi-channel optical signals of WDM standard wavelength. By configuring 2 pairs of unidirectional wavelength division boards, it can expand the bidirectional transmission channel number to as many as 40 on two-core optical fibers.

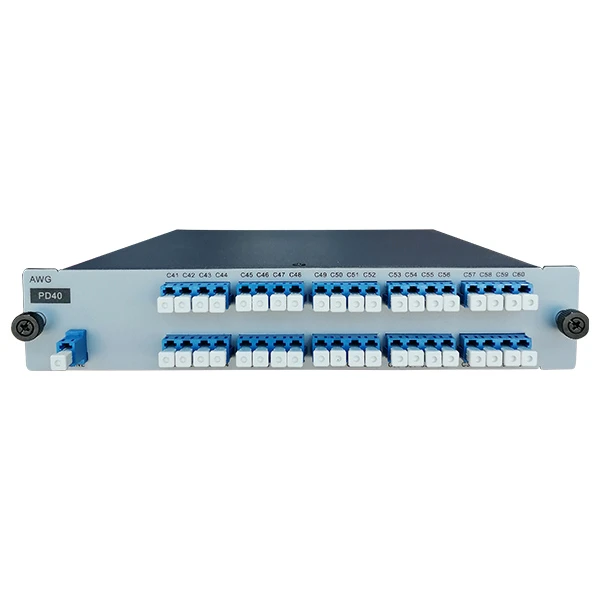

Pluggable 40CH AWG Card Feature
High isolation, low insertion loss, high reliability, and stability, meet GR-1221 standard
Support 40 DWDM Channels
The opening is convenient, without power supply, without setting up the working environment
No energy consumption, meet environmental requirements, no need to increase the machine room load
No need to debug, no network management necessary, zero maintenance
Support transparent transmission which is not related to the speed, format, content, and applicability of the service
OPC1600 passive chassis is used to load the card
Module structure, reusable, long service life
We can also offer kinds of wavelength division multiplexing system for sale, anything you need, please contact us.
If you want to know more types of dwdm products, please visit out website.
